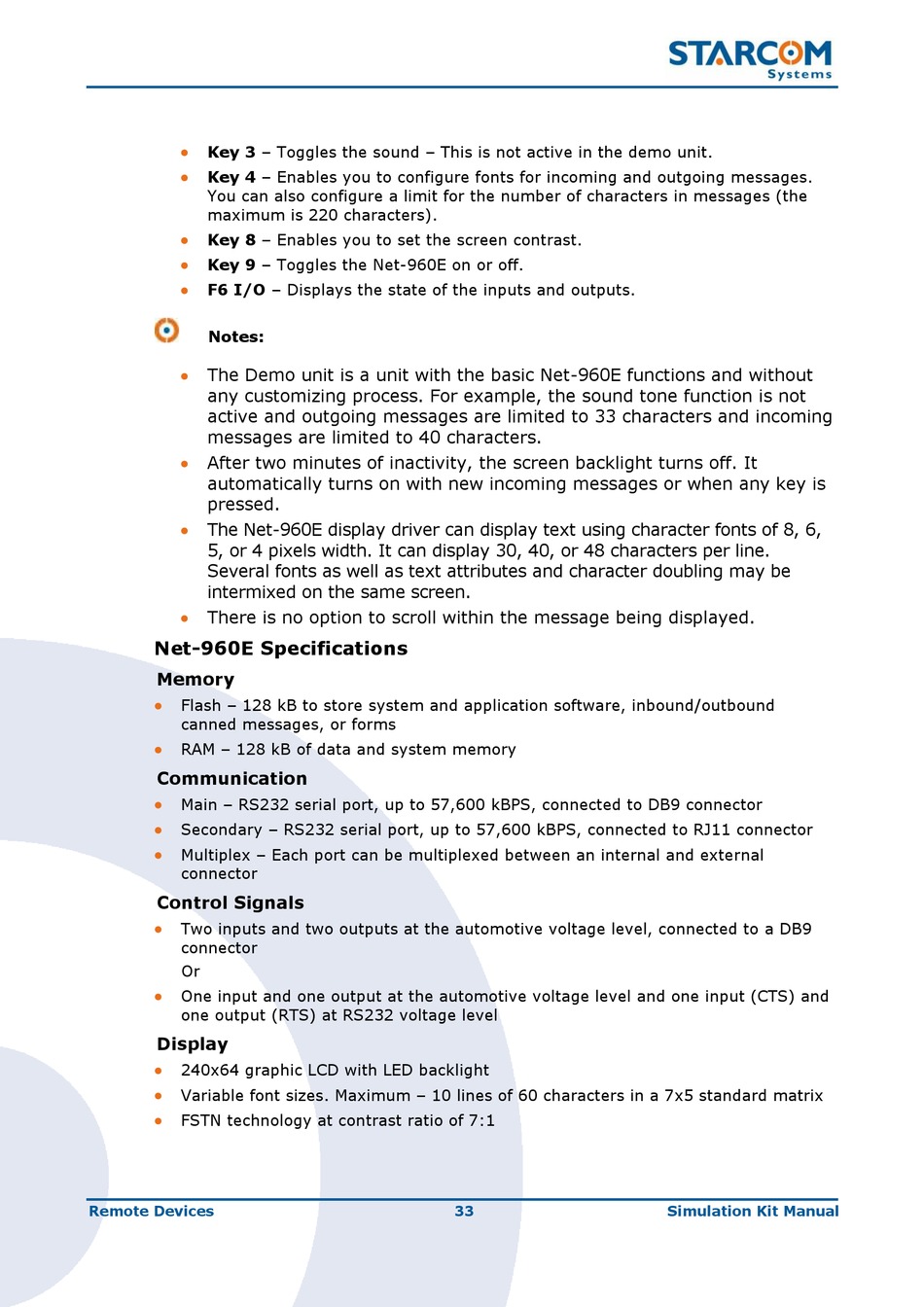

Key 3 – Toggles the sound – This is not active in the demo unit.
Key 4 – Enables you to configure fonts for incoming and outgoing messages.
You can also configure a limit for the number of characters in messages (the
maximum is 220 characters).
Key 8 – Enables you to set the screen contrast.
Key 9 – Toggles the Net-960E on or off.
F6 I/O – Displays the state of the inputs and outputs.
Notes:
The Demo unit is a unit with the basic Net-960E functions and without
any customizing process. For example, the sound tone function is not
active and outgoing messages are limited to 33 characters and incoming
messages are limited to 40 characters.
After two minutes of inactivity, the screen backlight turns off. It
automatically turns on with new incoming messages or when any key is
pressed.
The Net-960E display driver can display text using character fonts of 8, 6,
5, or 4 pixels width. It can display 30, 40, or 48 characters per line.
Several fonts as well as text attributes and character doubling may be
intermixed on the same screen.
There is no option to scroll within the message being displayed.
Net-960E Specifications
Memory
Flash – 128 kB to store system and application software, inbound/outbound
canned messages, or forms
RAM – 128 kB of data and system memory
Communication
Main – RS232 serial port, up to 57,600 kBPS, connected to DB9 connector
Secondary – RS232 serial port, up to 57,600 kBPS, connected to RJ11 connector
Multiplex – Each port can be multiplexed between an internal and external
connector
Control Signals
Two inputs and two outputs at the automotive voltage level, connected to a DB9
connector
Or
One input and one output at the automotive voltage level and one input (CTS) and
one output (RTS) at RS232 voltage level
Display
240x64 graphic LCD with LED backlight
Variable font sizes. Maximum – 10 lines of 60 characters in a 7x5 standard matrix
FSTN technology at contrast ratio of 7:1
Remote Devices
33
Simulation Kit Manual
