Installation

The sauna heater is designed for a default sup-
ply voltage of 400 V 3N ~.
8 cm

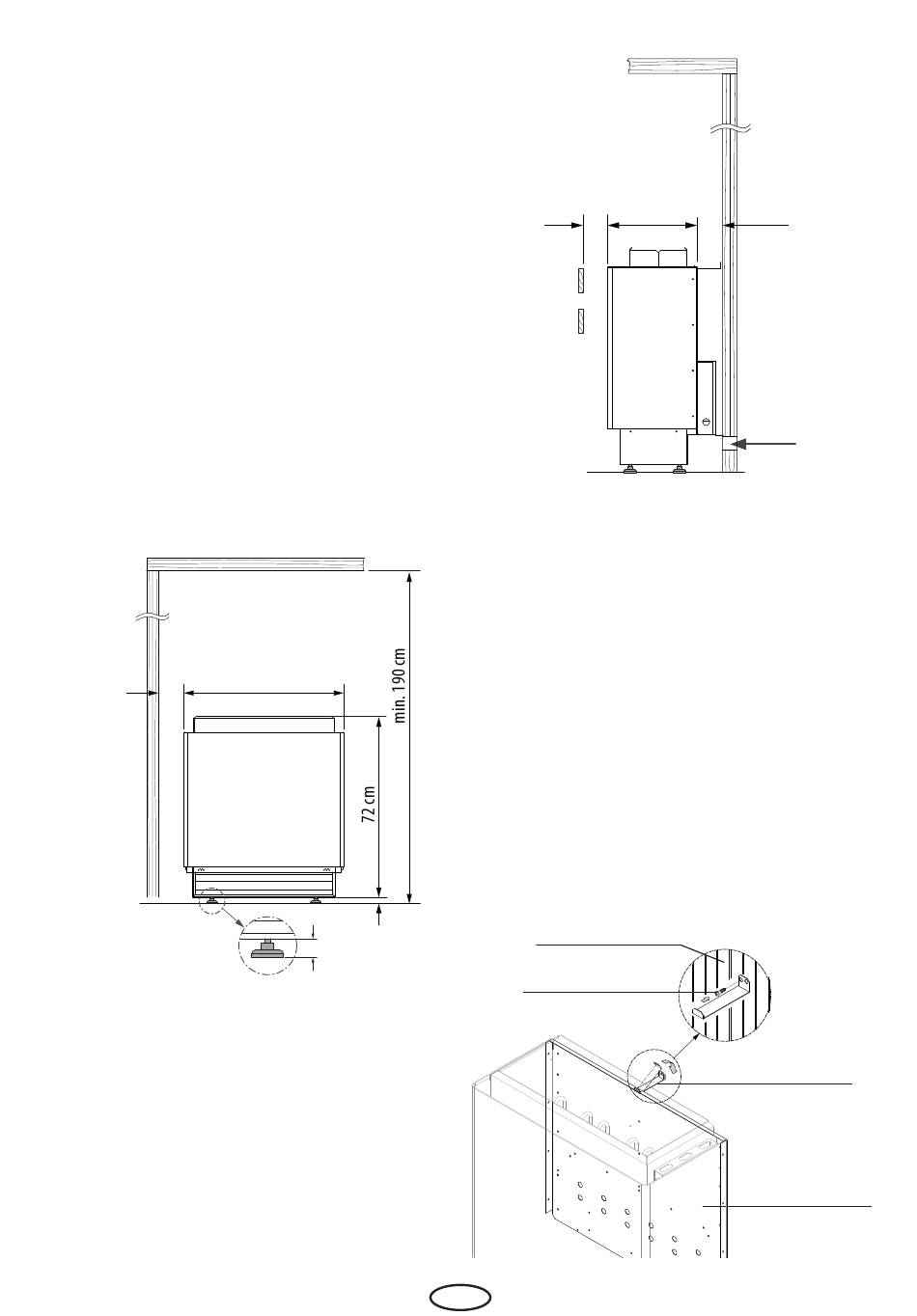

Minimum distances

• The minimum height of the sauna should be
1.90 m on the inside (Fig. 1)
• During the installation of the sauna heater,
make certain that the vertical distance be-
tween the upper edge of the sauna heater
and the sauna ceiling is at least 90 cm, and
that the horizontal (lateral) distance between
the heater and the cabin wall is at least 8 cm.
Cabin ceiling
8 cm
Fig. 1
• The distance between the oven safety grid
or recliner bench and other flammable ma-
terials and the oven must be at least 8 cm.
The safety grid height must be equal to the
frontal heater height (fig. 2).
The heater safety system does not belong to
the scope of delivery and has to be ordered
separately.
30
63 cm
2,5-3,5 cm
25-35 mm
63 cm
2,5-3,5 cm
25-35 mm
8 cm
Installation of the adjustable feet
and the angle bracket
Mount the adjustable feet. In accordance with
required safety distances, center the heater in
front of the air intake vents. Align the adjusta-
8 cm
ble feet to any unevenness in the floor.
30 cm
Insert angle bracket into the mounting slot on
the rear wall in accordance with the following
illustration and swing into horizontal position.
To this end, make certain the short side of the
angle bracket latches into the upper slot. Tight-
en the brackets with the screws for particle
board which are provided.
Cabin wall
Mounting screw
EN
30 cm
8 cm
air inlet
8 cm
Angle bracket
Rear wall, sauna oven
Fig. 2
Fig. 3
