7.4 Replacing electronics module with connection board

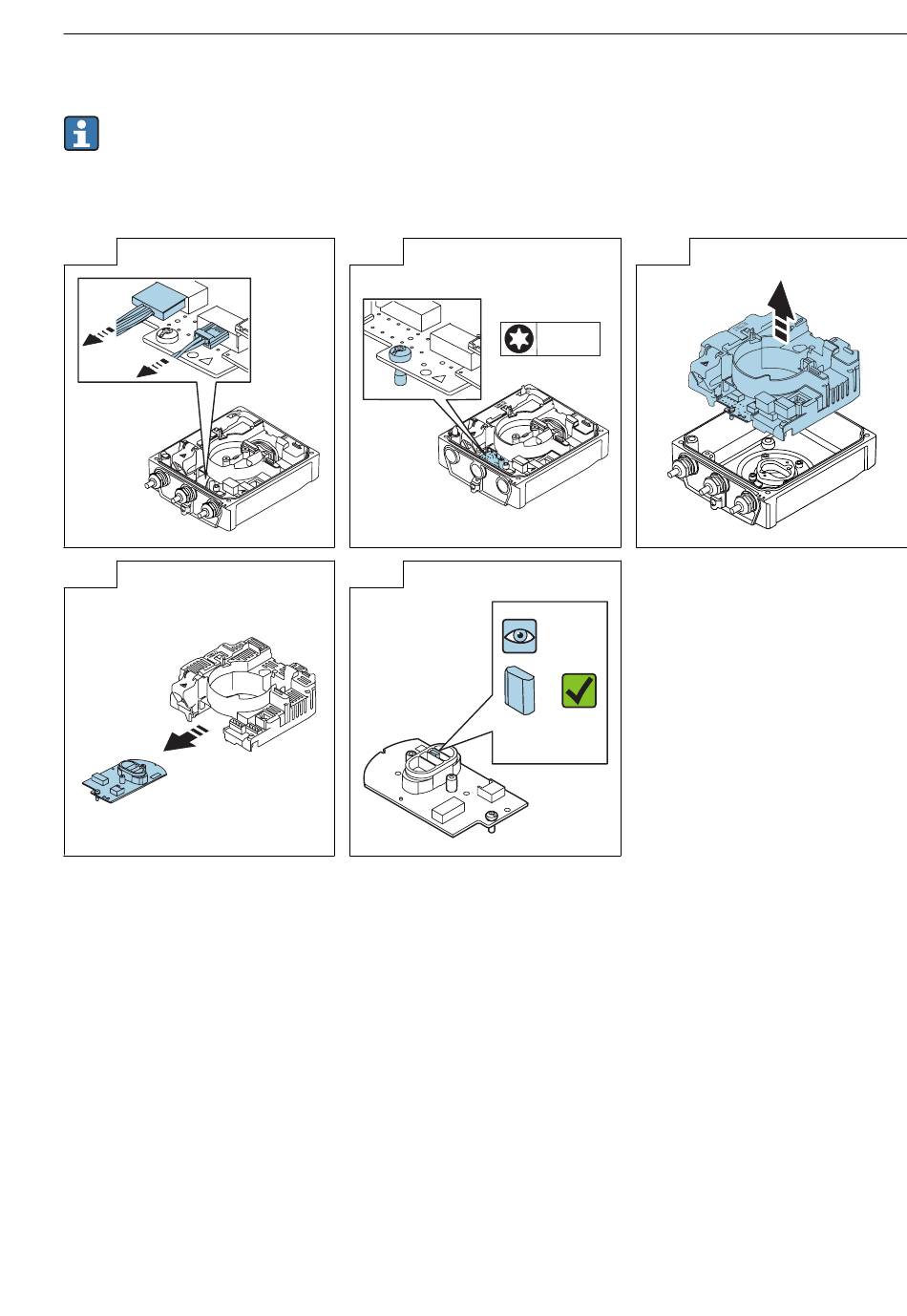

Proceed according to section 7.1, Fig. 1 - 7 and remove the connection board (Fig. 1 - 4
below). Check if the S-DAT is in the connection board (Fig. 5 below). Install the
connection board in the new electronics module, and remove the jumper prior to
installing the amplifier (see section 7.6).
1 →
4 →
7.5 Assembling electronics module with connection board
Re-assembly is carried out in reverse order.
Endress+Hauser
2 →
5
S-DAT
3 →
T20
EA01099D
