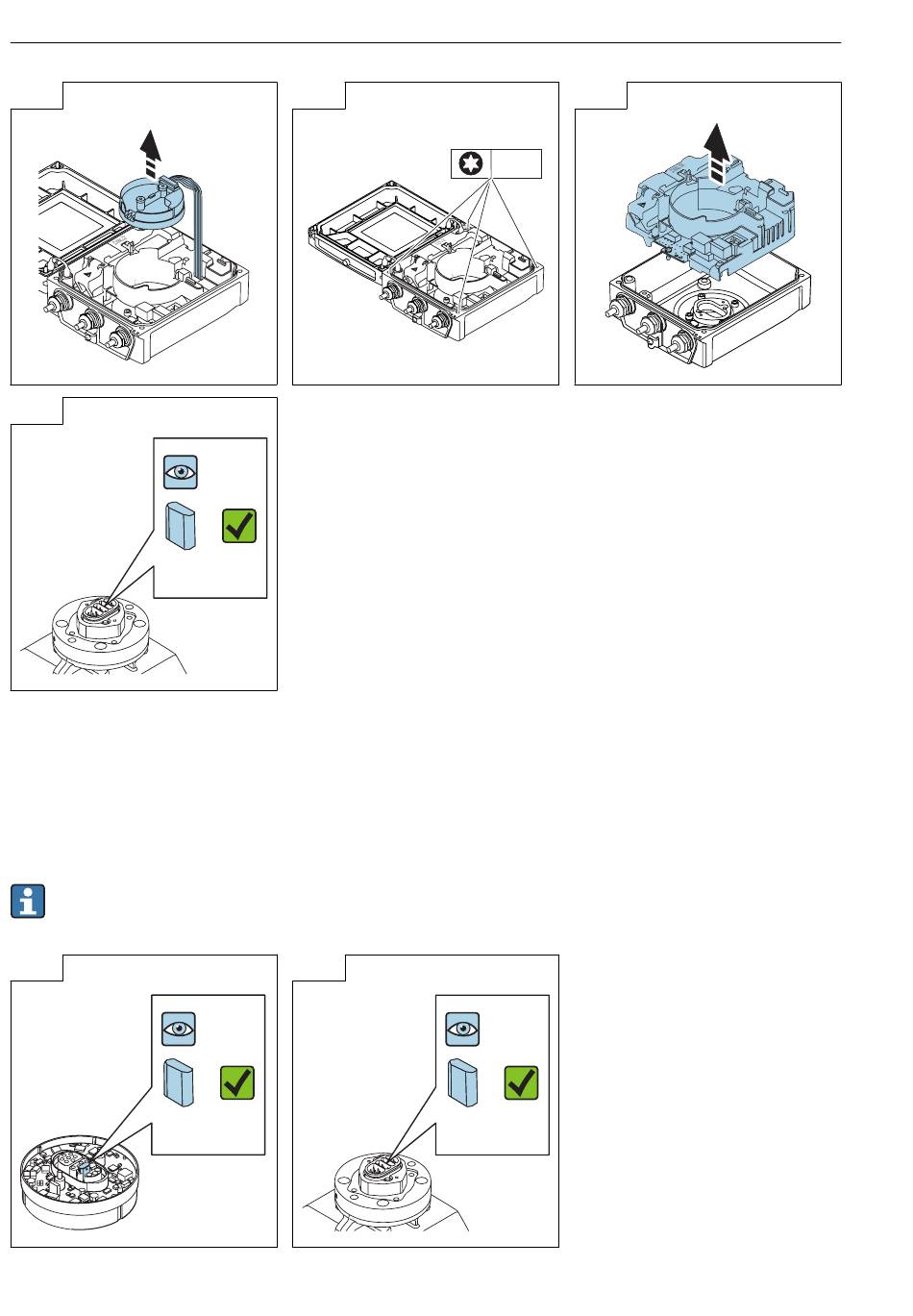

7.2 Assembling electronics module without connection board
Re-assembly is carried out in reverse order.
7.3 Note on assembling electronics module without connection
board
Check if the S-DAT is inserted in the amplifier (Fig. 1 below). Otherwise, check if the S-
DAT is inserted in the sensor interface (Fig. 2 below).
1 →
S-DAT
10
7 →
2
S-DAT
8 →
T20
