Interlogix VE1120 Series Installation Sheet Seite 3

7
(1) VE1120
J4
J3
CP
Normal < 33 Ω
A larm
VE1120
(2)
J4
J3
CP
Normal 4.7 k Ω
A larm 9.4 kΩ
Tamper
Short 0 Ω
EN: Installation Sheet
Introduction
The VE1120 series includes the VE1120 PIR and VE1120AM
PIR-AM motion sensors. They have a patented mirror, pyro,
and signal processing technology.
Note: VE1120AM has not been evaluated by UL/cUL.
Installation guidelines
The technology used in these detectors resists false alarm
hazards. However, avoid potential causes of instability (see
Figure 1) such as:
• Direct sunlight on the detector
• Strong draughts onto the detector
• Heat sources within the detector field of view
• Animals within the detector field of view
• Obscuring the detector field of view with large objects,
such as furniture
• Objects within 50 cm (20 in.) of the anti-masking (AM)
detector
P/N 146279999-2 (ML) • REV C • ISS 28JUN12
J4
J3
J4
J3
J4
J3
Normal 4.7 k Ω
A larm 9.4 kΩ
Tamper
Short 0 Ω
VE1120AM
J4
J3
CP
Normal < 33 Ω
A larm
VE1120AM
J4
J3
CP
Normal 4.7 k Ω
A larm 9.4 kΩ
Tamper
Short 0 Ω
AM/TF
• Installing two detectors facing each other and less than
50 cm (20 in.) apart (only AM detectors)
Installing the detector

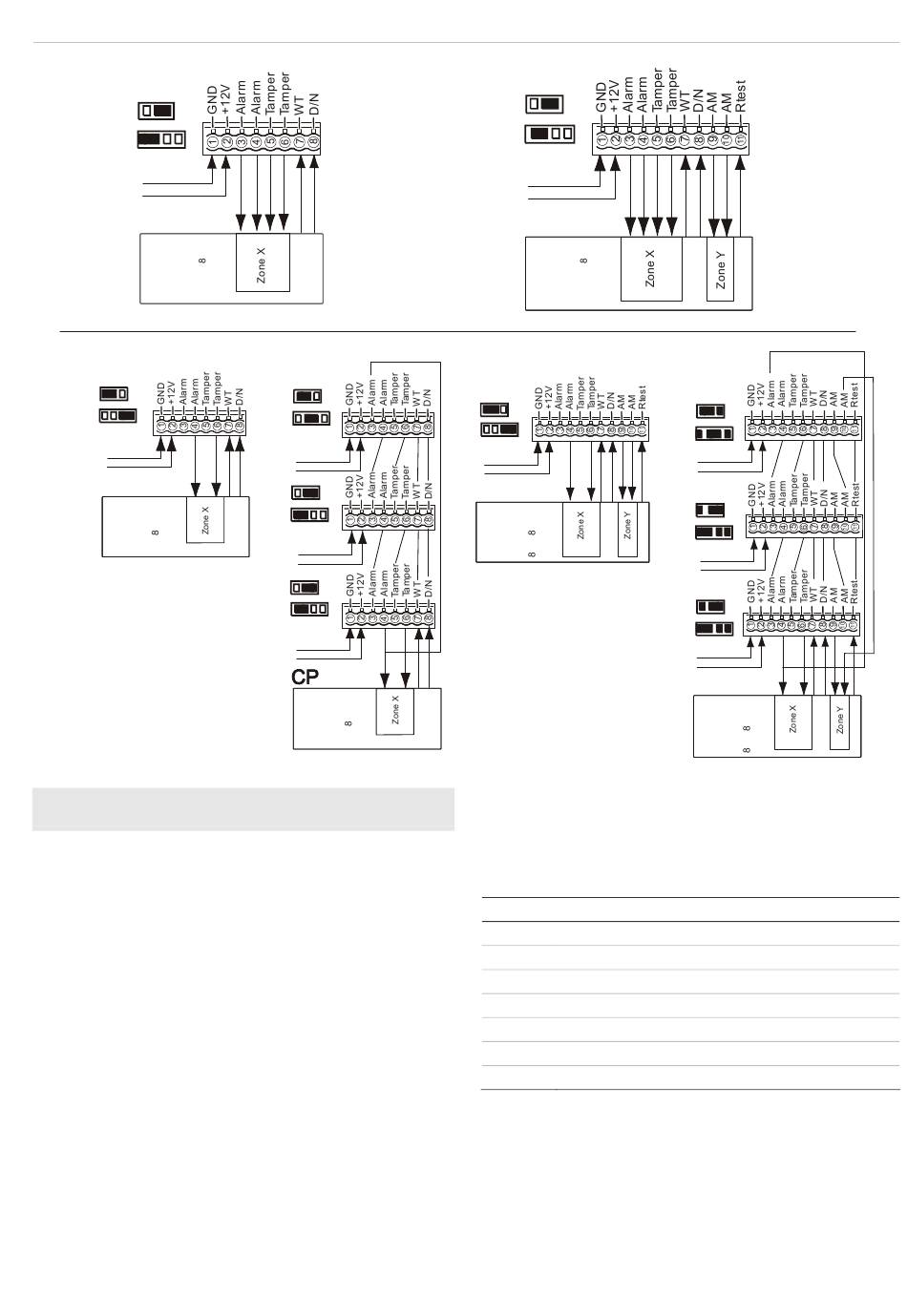

Figure 7 legend
Item Description
(1) Standard connection (factory default)
(2) Dual loop connection
CP Control panel
WT Walk test
AM Antimasking
D/N Day/night
Rtest Remote test
To install the detector:
1. Lift off the custom insert and remove the screw
(see Figure 2, step 1).
2. Using a screwdriver, carefully prise open the detector (see
Figure 2, steps 2 and 3).
3. Fix the base to the wall between 1.8 and 3.0 m (5.9 and
9.8 ft.) from the floor. For flat mounting use a minimum of
J4
J3
J4
J3
J4
J3
CP
Normal 4.7 k Ω
A larm 9.4 kΩ
Tamper
Short 0 Ω
AM/TF
