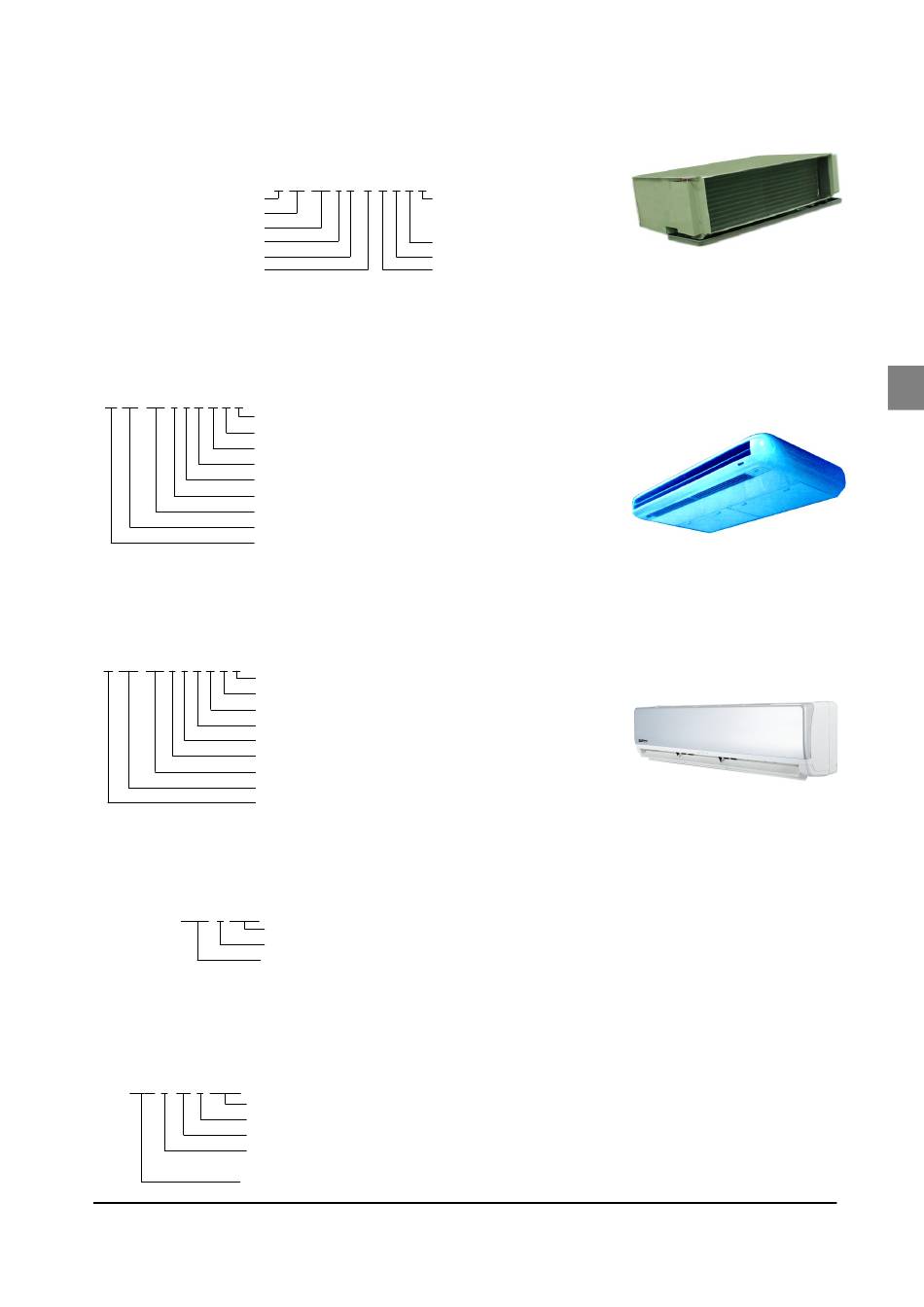

Ceiling Duct Indoors Units: ADB-TP Series
Product Range: ADB032TP, ADB035TP, ADB045TP, ADB050TP, ADB060TP
Feature: Installed above ceiling with air supply duct working, meet the requirement for long distance air supply.
Nomenclature:
Acson
Air-cooled cooling duct indoor unit
Cooling capacity No.(HP)
Design serial No.
For R410A refrigerant
External static pressure:
10 means 100Pa
●
Horizontal Ceiling mounted and Vertical floor standing indoor units: ACM-TP Series
Product Range: ACM020TP, ACM028TP, ACM045TP, ACM050TP
Feature: elegant design, friendly installation.
Nomenclature:
A CM 050 T P-A M A R
●
Wall mounted units: AWM-TP Series
Product Range: AWM009TP, AWM011TP, AWM015TP, AWM020TP, AWM028TP
Feature: elegant design, friendly installation, In-build high efficiency and mould proof filter, easy to detach and clean.
Nomenclature:
A WM 015 T P-A M B R
●
External hot water coil box
Product Range:AHWT08-15, AHWT18-32, AHWT35-50, AHWT60
Feature: For ACC-T series indoor units, easy to install and simple to maintain.
Nomenclature:
AHW T 08-15
●
External electric heater box
Product Range: AHDP1.2/2.4T08-15, AHDP2.4/3.6T18-32, AHDP2.4/3.6T35-45, AHDP4.8/7.2T35-50, AHDP5.4/7.2/10.8T60
Feature: For ACC-T series indoor unit, easy to install and simple to maintain.
Nomenclature:
AHD P 1.2 T 08-15
A DB 050 T P-10-A M A R
Applied region Omitted: China, B: Australia, U: America, R: RoHS, E: Other region.
Design alternation No.
Matching outdoor units: AMDS series
Power supply features A: 220-240V~/50Hz; K: 208-230V~/60Hz.
For R410A refrigerant
Design serial No.
Cooling capacity No.(HP)
Ceiling exposed/floor standing unit
Acson
Applied region Omitted: China, B: Australia, U: America, R: RoHS, E: Other region.
Design alternation No.
Matching outdoor units: AMDS series
Power supply features A: 220-240V~/50Hz; K: 208-230V~/60Hz.
For R410A refrigerant
Design serial No.
Cooling capacity No.(HP)
Indoor unit: Wall mounted indoor units
Acson
08-15 means it can be used in ACC008 - 015T
T means that unit can be used in MCC "T" series
Acson External hot water coil box
08-15 means it can be used in ACC008 - 015T
T means that unit can be used in ACC "T" series
Heating capactity (kW)
Heating unit: P means the heating is PTC
Omitted means the heating unit is electric heating pipe
Acson External electric heater box
Applied region Omitted: China,
B: Australia, R: RoHS,
U: America, E: Other region.
Design alternation No.
Matching outdoor units: AMDS series
Power supply features
A: 220-240V~/50Hz; K: 208-230V~/60Hz.
