1 General Introduction

AMDS (Multi-Digital Scroll) units are most suitable for commercial building, office room, hotel, which includes the outdoor units and multi-
indoor units; The most advantage of this product range is unconventional outdoor units with digital scroll compressor, To meet different
requirements, there are many indoor units for options: ceiling concealed indoor units, ceiling cassette indoors units and ceiling duct indoor
units, When indoors are ceiling duct type, if there is a special requirement, the indoor units can add the electrical heater and steam coil to
extend the heating capacity ;
●
Outdoor Units: AMDS-B Series
Product range: AMDS050B(R)5, AMDS060B(R)5, AMDS070B(R)5
Feature: The outdoor units are designed that the return air from front and back side panel and vertical air discharge; Units are compact,
and elegant design with low noise; the compressor is with advanced technology of digital scroll, can meet the stageless energy level
adjustment from 10% to 100%;

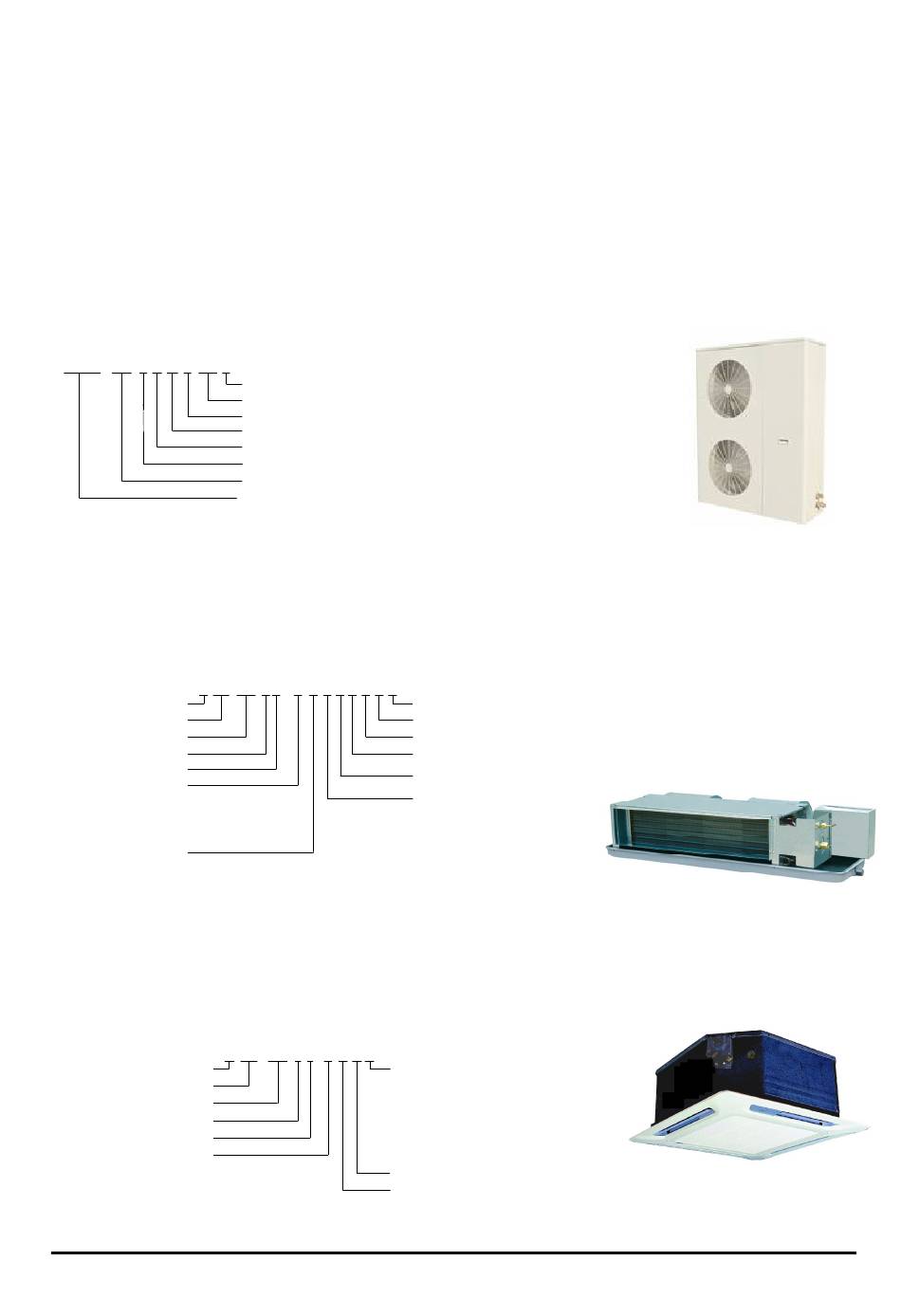

Nomenclature:
AMDS 060 B R 5 -F AA R
●
Ceiling Concealed Indoor Units: ACC-TP Series
Product Range: ACC009TP, ACC011TP, ACC015TP, ACC018TP, ACC020TP, ACC028TP, ACC032TP, ACC035TP, ACC045TP,
ACC050TP, ACC060TP
Feature: Concealed type, space saving, ESP is optional.
Nomenclature:
A CC 050 T P -36 R B F A M A R
Acson
Ceiling conceal indoor unit
Cooling capacity No.(HP)
Design serial No.
For R410A refrigerant
Type of additional heater
W: hot water coil
36: 3600W electric heater
Omitted: no additional heater
Type of connecting pipe
R: right connecting pipe
L: left connecting pipe
●
Ceiling Cassette Indoor Units: MCK-UP/TP Series
Product Range: ACK011UP, ACK015UP, ACK018UP, ACK020UP, ACK028TP, ACK032TP, ACK035TP, ACK045TP, ACK050TP,
ACK060TP
Feature: 4 ways air supply evenly, streamlined design, in-build high efficiency filter.
Nomenclature:
Acson
Ceiling cassette
Cooling capacity No.(HP)
Design serial No.
For R410A refrigerant
Power supply features
A: 220-240V~/50Hz;
K: 208-230V~/60Hz.
RoHS
Description of the unit
Power supply features A: 220-240V/~/50Hz; F: 380-415V/3N~/50Hz
For R410A refrigerant
Heat pump (omitted if cooling only)
Design serial No.
Cooling capacity No.060 means 6HP
Acson multi digital scroll unit
A CK 032 T P -A M A R
Applied region
Omitted: China
B: Australia
U: America
R: RoHS
E: Other region.
Design alternation No.
Matching outdoor units: AMDS series
Applied region Omitted: China, B: Australia, U: America, R: RoHS, E: Other region.
Design alternation No.
Matching outdoor units: AMDS series
Power supply features A: 220-240V~/50Hz; K: 208-230V~/60Hz.
F: using air filter, X: no air filter
Air return model
B: rear air return plenum
D: lower air return plenum
C: no air return plenum
