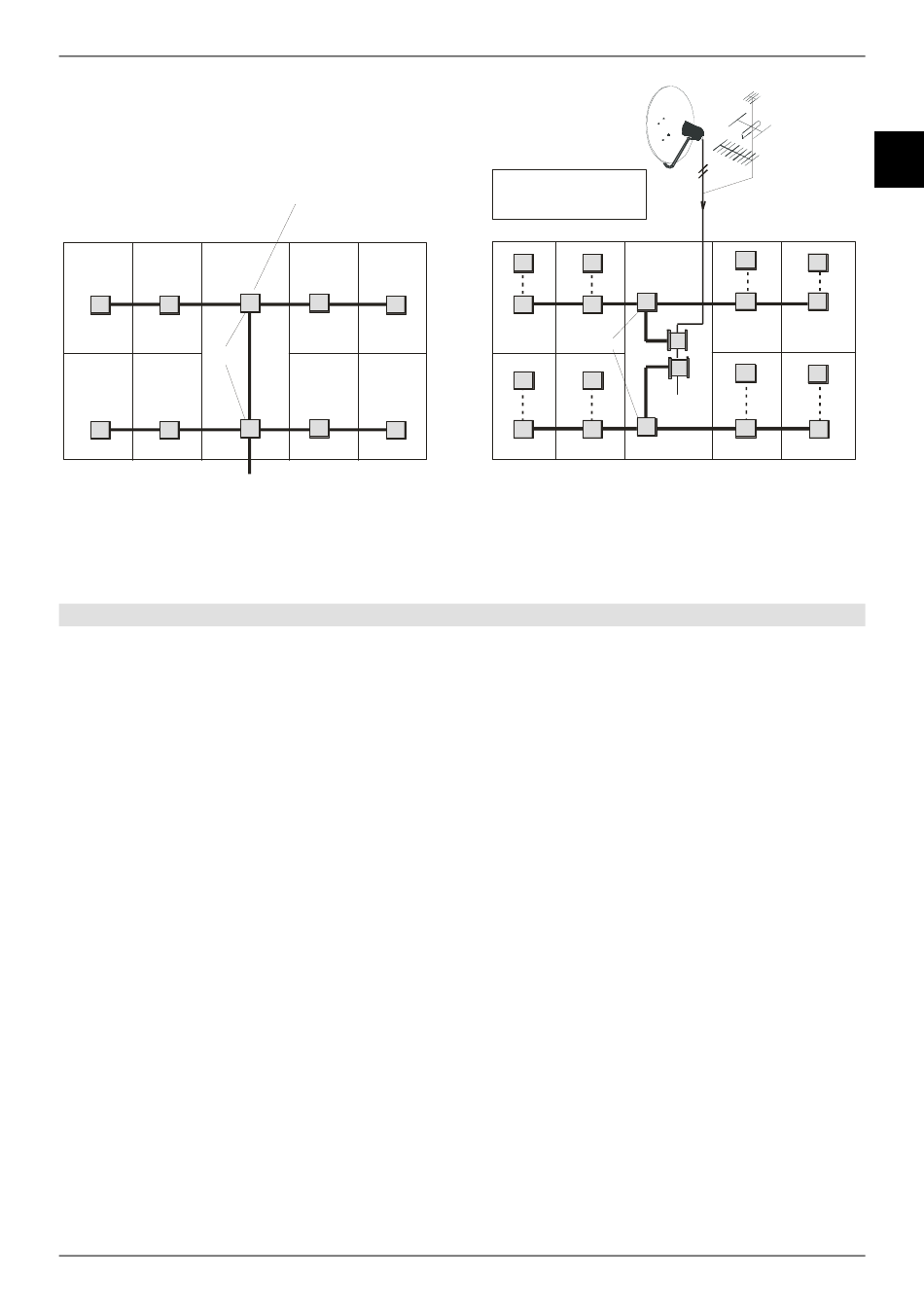

Trunk lines e. g. on staircase
Splitter
In the example shown, the practical compatibility of the system means it makes more sense to
use two switching matrices 5/2x4. The probability of interference between participating
neighbours is lower.

4.2 Setting up a New System

Advantage: Significantly fewer cables are required.
•
You do not need to construct a "star-shaped distribution", and none of the receivers need
"their own" cables connected to a multiswitch.
•
Since the cable is very sensitive, you should install it at the end of the construction progress.
Where possible, use conduits for this purpose during installation. If the conduit has bends or
need to bridge long stretches, you must feed in the cable before the laying process. Ensure
there are no kinks in the cable. Do not expose to excessive tensile strain.
new
A maximum of 8
subscribers per line
Splitter
We recommend at least two sockets per residence are planned.
