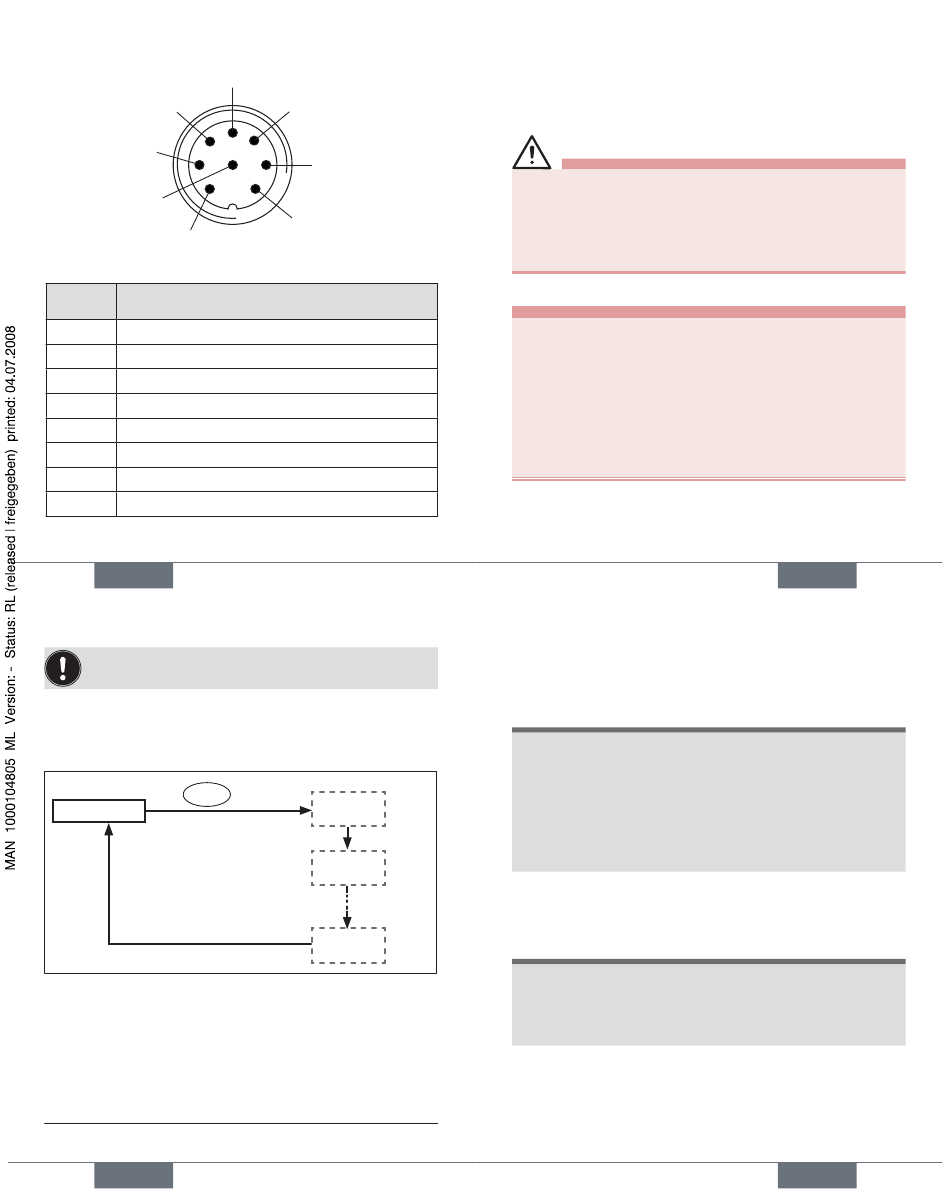

Multi-pole connection
6
7
8
1
Circular plug M12 8-pole
Pin Configuration
1
Nominal value +
2 Nominal value GND
3 Operating voltage
4
Operating voltage +
5 Binary input +
6
Binary input GND
7 Analogue position feedback GND
8
Analogue position feedback +
english
24
To run X.TUNE, the positioner must be in the AUTO-
MATIC operating state (DIP switch 4 = OFF).
→
Start X.TUNE by pressing key 1 for 5 sec.
While X.TUNE is running, LED 1 flashes very quickly
(green).
Key 1
X.TUNE
When the automatic adjustment has completed, LED 1
flashes slowly (green)*.
The changes are automatically transferred to the memory
(EEPROM) provided the X.TUNE function is successful.
* if a fault occurs, LED 1 is lit red
english
26
5
4
3
2
(0/4 ... 20 mA / 0 ... 5/10 V)
GND
24 V DC
approx.
X.TUNE
5 sec.
STARTED
TUNE #0
INIT
X.TUNE
READY
STARTING-UP TYPE 8696
Automatic adjustment of the positioner to the oper-
ating conditions (X.TUNE)
WARNING!
While the X.TUNE function is running, the valve auto-
matically moves from its current position!
• Never run X.TUNE while a process is running!
• Take appropriate measures to prevent the equipment
from being accidentally actuated!
NOTE!
Avoid maladjustment of the controller due to an in-
correct supply pressure or applied operating medium
pressure!
• Run X.TUNE whenever the supply pressure (= pneu-
matic auxiliary energy) is available during subsequent
operation. Run the X.TUNE function preferably
without operating medium pressure to exclude inter-
ference caused by flow forces.
PACKAGING, TRANSPORT,
STORAGE
NOTE!
Transport damage/Storage damage
• Transport and store the device, protected from wet
and dirty conditions, in shock-resistant packaging.
• Avoid the effects of heat and cold which could result
in temperatures above or below the permitted storage
temperature.
• Storage temperature: -20 ... +65°C.
DISPOSAL
NOTE!
Damage to the environment caused by device
components contaminated with media.
• Observe the relevant disposal and environmental
protection regulations.
→
Dispose of the device and packaging in an environ-
mentally friendly manner.
→
Observe national waste disposal regulations.
