NOTE
When the electronic battery charger is connected to the electrical mains, all machine functions are automatically
disabled.
4. When the green LED (4) turns on, the batteries are charged.
For further information about the battery charger operation (40), see the Battery Charger Manual.
5. Disconnect the electronic battery charger cable (38) from the electrical mains and place it in its housing (39) on the machine.
6. Now the machine is ready to be used.

MAIN BROOM HEIGHT CHECK AND ADJUSTMENT

NOTE
Brooms with harder or softer bristles are available.
This procedure is applicable to all types of brooms.
Check
7. Check the main broom distance from the ground, according
to the following procedure:
Drive the machine on a level loor.
8.
9. Keep the machine stationary and turn on the main broom
for a few seconds.
10. Stop the main broom, then move the machine and turn it
off.

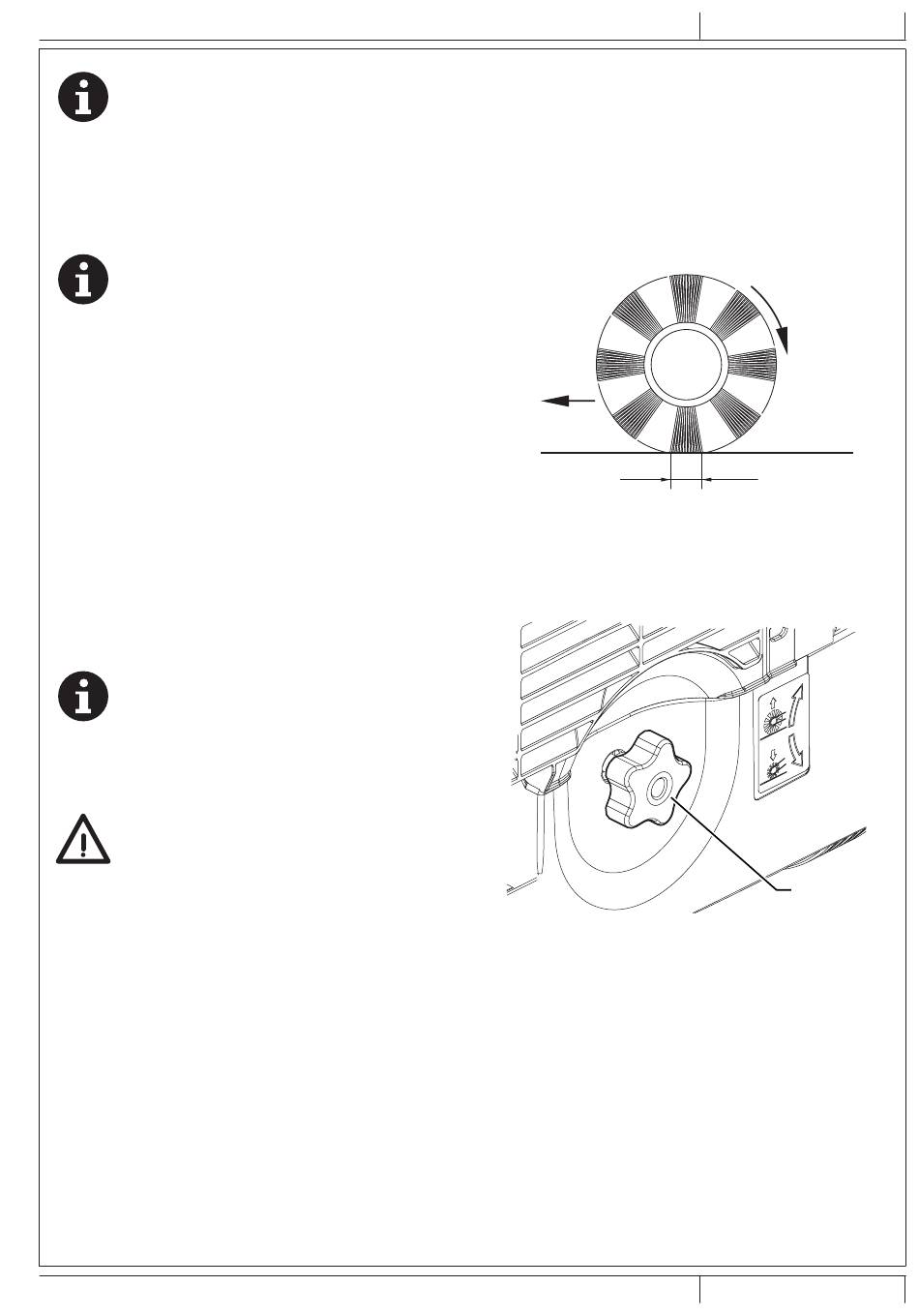

11. Check that the main broom print (A, Fig. 2), along its
length, is 2 to 4 cm wide.
12. If the print (A) is not within speciications, adjust the broom
height.
Adjustment
13. Turn the ignition key (2) to "0".
14. Turn the knob (B, Fig. 3) as shown below:
•
to increase the print width, turn the knob counter-
clockwise
•
to decrease the print width, turn the knob clockwise
NOTE
The knob can be used both to adjust the print and to
adjust the broom according to the bristle wear.
15. Perform step 1 again to check that the main broom is at the
correct distance from the ground.
16. When the broom is too worn to be adjusted, replace it as
shown in the next paragraph.
CAUTION!
If the main broom print is excessive (larger than
4 cm), the machine regular operation is affected
and the moving parts or electrical components
can overheat, thus reducing machine life.
Pay careful attention when performing the above-
mentioned checks, and always use the machine
according to the indicated conditions.
USER MANUAL
2 - 4 cm
0,8 - 1,6 in
Figure 2
Figure 3
1465366000 - SW900
ENGLISH
A
P100817
B
P100818
15
