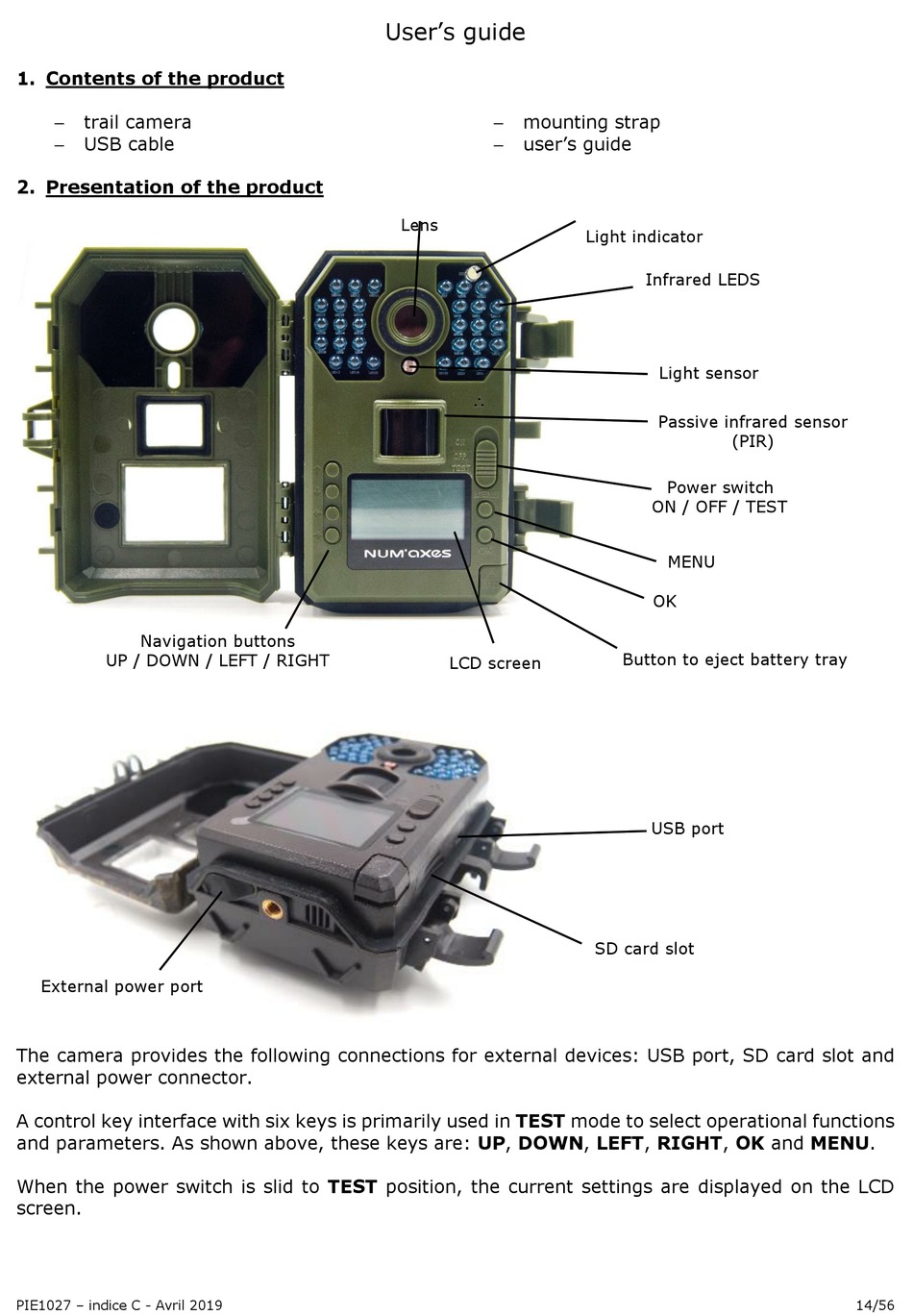

1. Contents of the product
 trail camera
 USB cable

2. Presentation of the product

Navigation buttons
UP / DOWN / LEFT / RIGHT
External power port
The camera provides the following connections for external devices: USB port, SD card slot and
external power connector.
A control key interface with six keys is primarily used in TEST mode to select operational functions
and parameters. As shown above, these keys are: UP, DOWN, LEFT, RIGHT, OK and MENU.
When the power switch is slid to TEST position, the current settings are displayed on the LCD
screen.
PIE1027 – indice C - Avril 2019

User's guide

 mounting strap
 user's guide
Lens
LCD screen
Light indicator
Infrared LEDS
Light sensor
Passive infrared sensor
(PIR)
Power switch
ON / OFF / TEST
MENU
OK
Button to eject battery tray
USB port
SD card slot
