Mode
Photo / Video / Photo + Video
Number of images
Available space

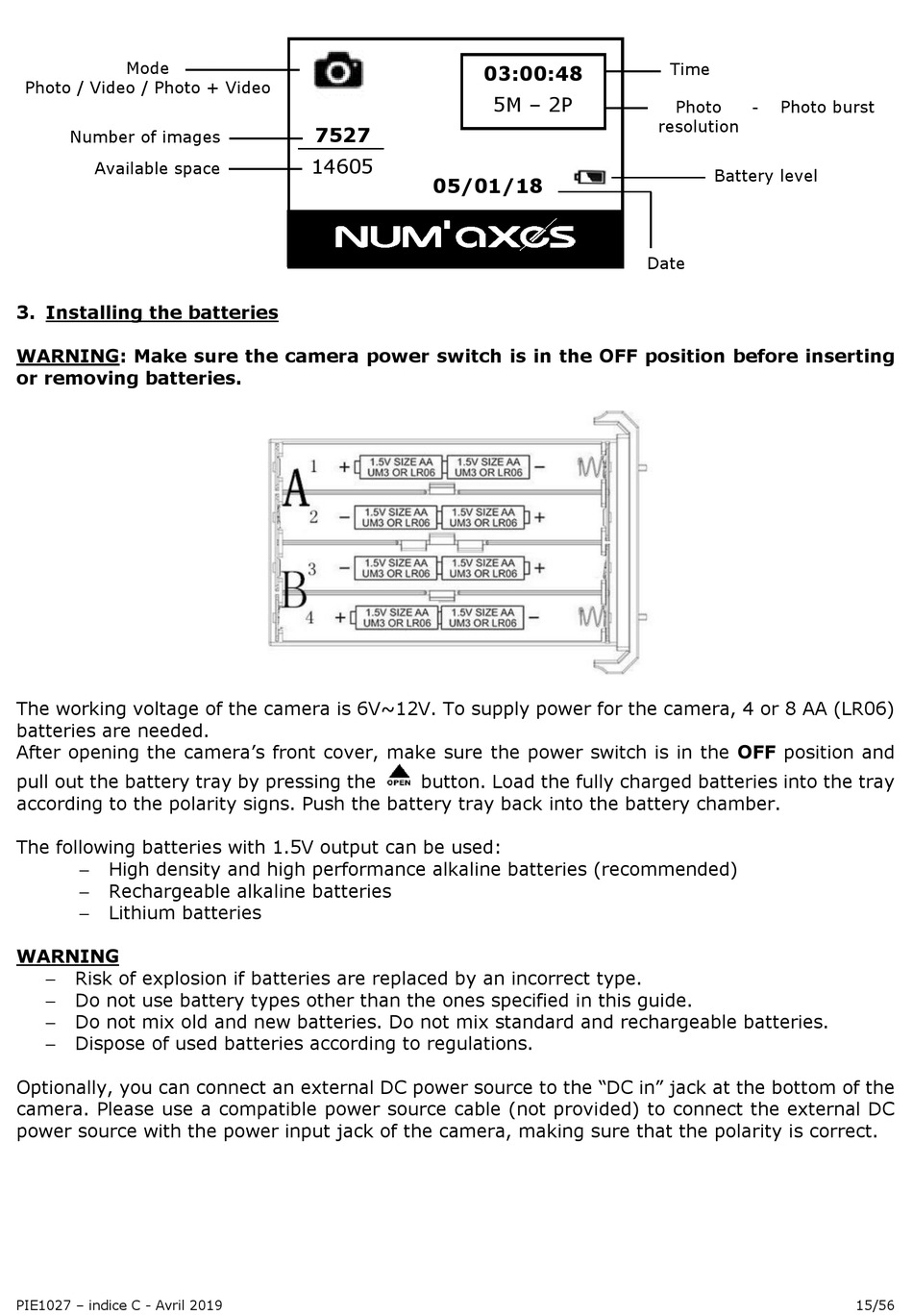

3. Installing the batteries
WARNING: Make sure the camera power switch is in the OFF position before inserting
or removing batteries.
The working voltage of the camera is 6V~12V. To supply power for the camera, 4 or 8 AA (LR06)
batteries are needed.
After opening the camera's front cover, make sure the power switch is in the OFF position and
pull out the battery tray by pressing the
according to the polarity signs. Push the battery tray back into the battery chamber.
The following batteries with 1.5V output can be used:
 High density and high performance alkaline batteries (recommended)
 Rechargeable alkaline batteries
 Lithium batteries
WARNING
 Risk of explosion if batteries are replaced by an incorrect type.
 Do not use battery types other than the ones specified in this guide.
 Do not mix old and new batteries. Do not mix standard and rechargeable batteries.
 Dispose of used batteries according to regulations.
Optionally, you can connect an external DC power source to the "DC in" jack at the bottom of the
camera. Please use a compatible power source cable (not provided) to connect the external DC
power source with the power input jack of the camera, making sure that the polarity is correct.
PIE1027 – indice C - Avril 2019
03:00:48
7527
14605
05/01/18
button. Load the fully charged batteries into the tray
5M – 2P
resolution
Date
Time
Photo - Photo burst
Battery level
15/56
