Intended Use; Wall Mounting - Dräger Polytron 7000 Installationshinweis

Remote Sensor, Installation Instructions
Operation of the Dräger Polytron 7000 with the remote sensor requires full understanding and
strict observance of the Instructions for Use of the Dräger Polytron 7000 (Part No. 90 23 758)!

Intended use

Remote Sensor Adapter Polytron 7000 – 83 17 275:
— For the external installation of a sensor at a measuring point located at a distance of up
to 30 m from the installation site of the Polytron 7000 Transmitter.
With:
— Remote Cable + Connector, 5 m Polytron 7000 – 83 17 270,
— Remote Cable + Connector, 15 m Polytron 7000 – 83 17 591,
— Remote Cable + Connector, 30 m Polytron 7000 – 83 17 592:
Attention:
The cable lenght of the remote adapter may be shortened on the connector side. An
extension of the cable or replacement by a different cable is not permitted.
If a remote adapter and a remote sensor are used on a transmitter installed in accordance with
device category 3:
Caution:
Remove the Category 1 marking from the transmitter. After being installed in the
manner described here, the accessory may never be used in explosion-hazard areas
of zone 0 or zone 1 (device category 1 or 2)! Explosion hazard!
If a remote adapter and a remote sensor are used on a transmitter installed in a non-explosion-
hazard area:
Caution:
Remove the explosion-protection marking from the transmitter. After being installed
in the manner described here, the accessory may never be used in explosion-hazard
areas! Explosion hazard!

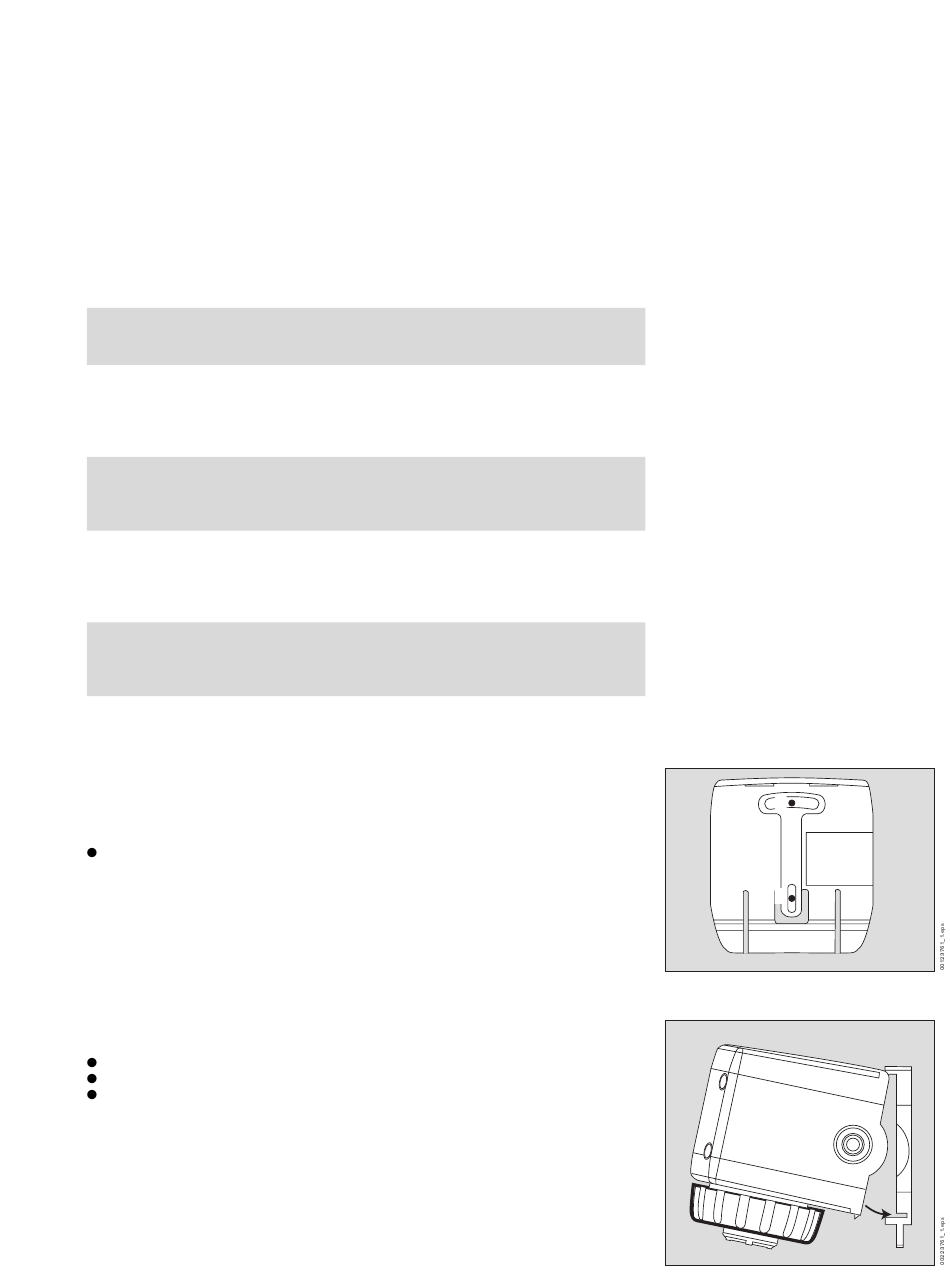

Wall mounting

1 Drill the fixing holes for the mounting plate (drilling template: see the pale grey illustration
on page 2). Spacing between holes: 50 ±4 mm.
Screw the mounting plate for the remote sensor in the desired position.
2 Fit the housing of the remote sensor onto the mounting plate so that it clicks into place.
Installing the sensor
3 Unscrew the bayonet ring from the transmitter and remove the dummy plate.
Remove the sensor from the pack.
Place the sensor in the opening, with the Dräger logo facing the front.
Secure the sensor with the bayonet ring.
