Dräger Polytron 7000 Installationshinweis Seite 4

Connection to the Dräger Polytron 7000

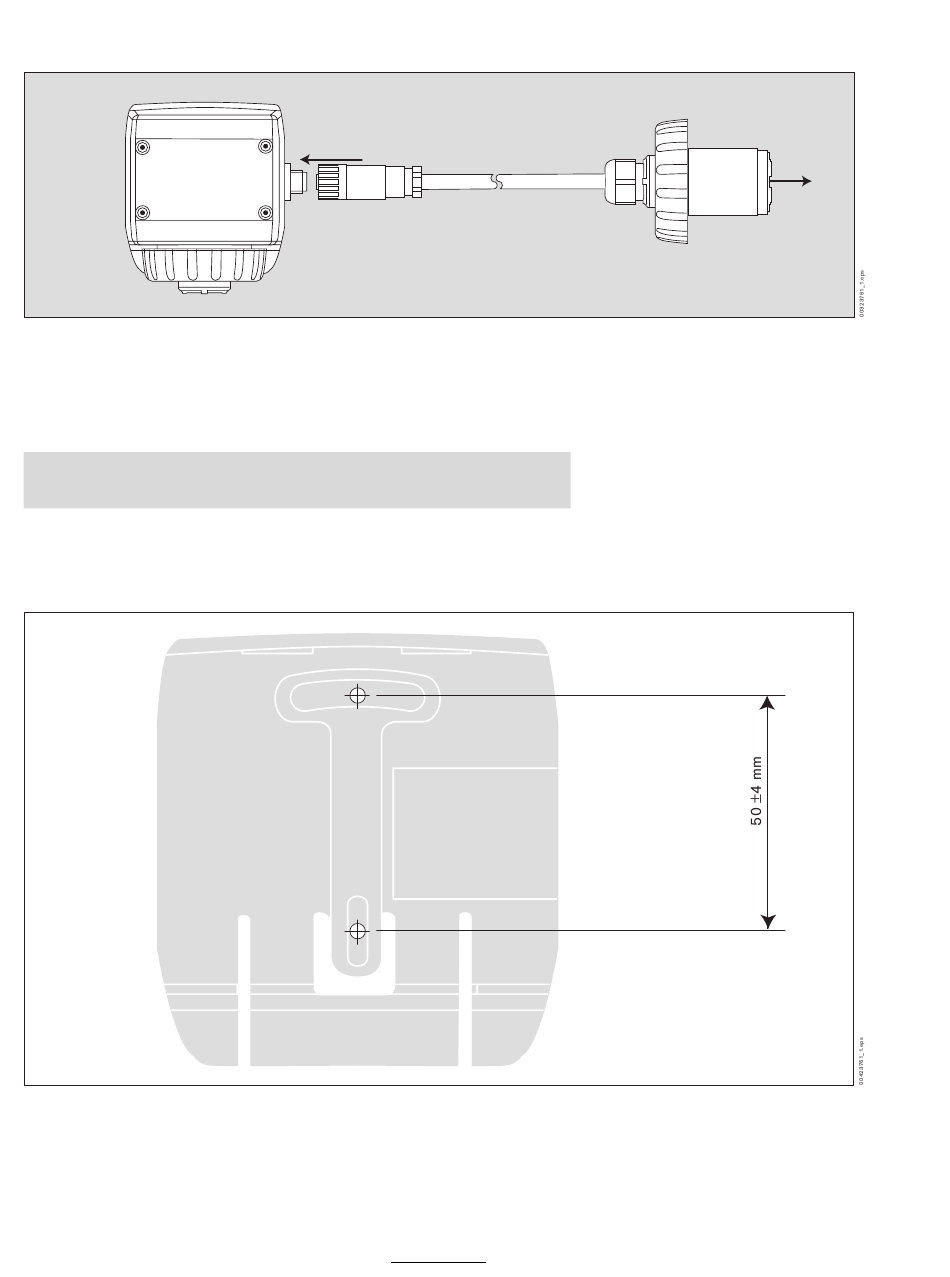

4 Connect the plug of the external sensor (cable length 5, 15 or 30 m) to the housing and
secure by turning the ring clockwise.
5 Insert the sensor adapter into the opening of the Dräger Polytron 7000 Transmitter, with
the Dräger logo on the sensor facing the front.
6 Secure the sensor adapter with the bayonet ring.
Note:
The remote sensor is recognised automatically by the transmitter. No more installation
steps are required.
Drilling template
90 23 761 - MA 4683.105 en
