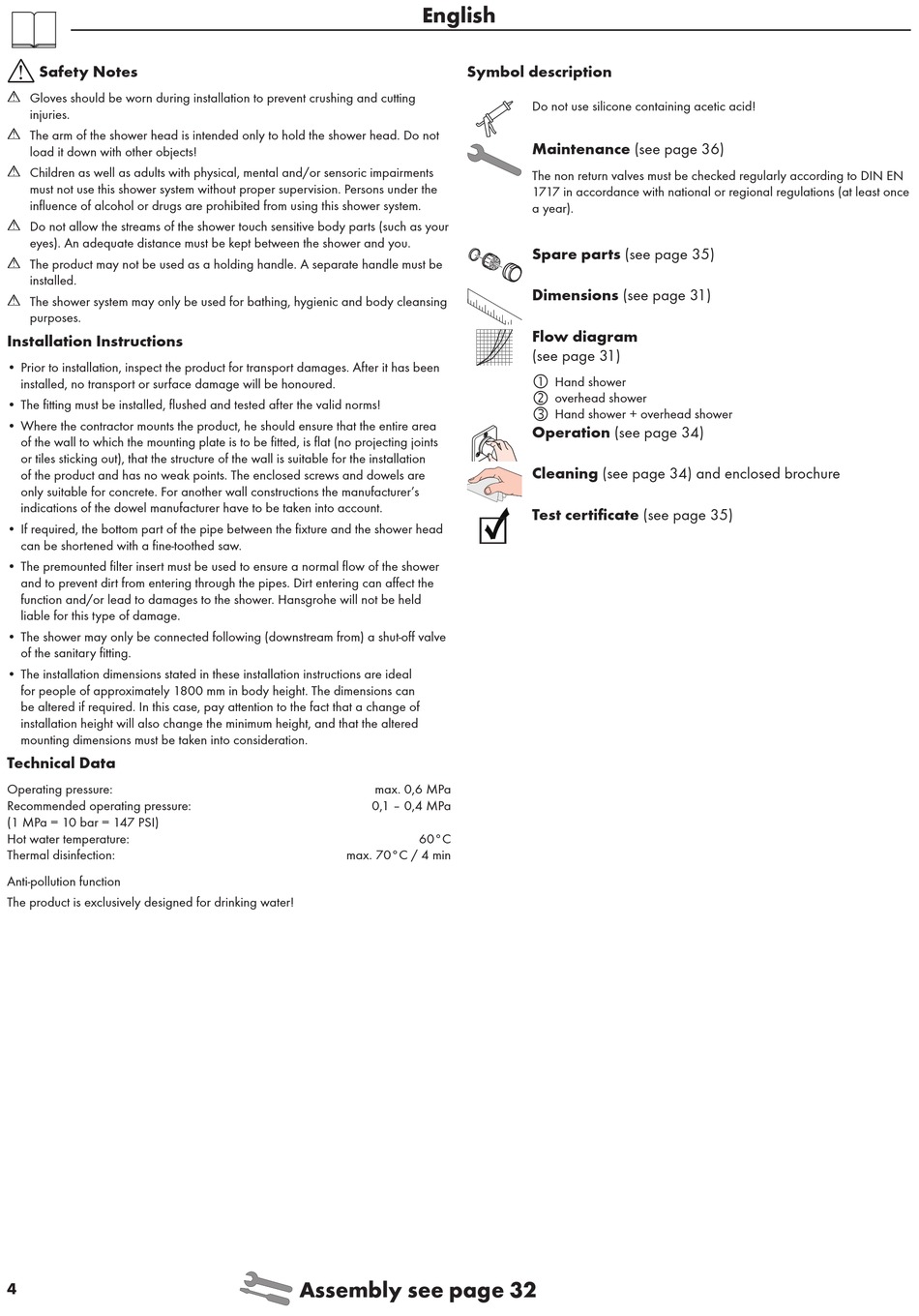

Safety Notes
Gloves should be worn during installation to prevent crushing and cutting
injuries.
The arm of the shower head is intended only to hold the shower head. Do not
load it down with other objects!
Children as well as adults with physical, mental and/or sensoric impairments
must not use this shower system without proper supervision. Persons under the
influence of alcohol or drugs are prohibited from using this shower system.
Do not allow the streams of the shower touch sensitive body parts (such as your
eyes). An adequate distance must be kept between the shower and you.
The product may not be used as a holding handle. A separate handle must be
installed.
The shower system may only be used for bathing, hygienic and body cleansing
purposes.
Installation Instructions
• Prior to installation, inspect the product for transport damages. After it has been
installed, no transport or surface damage will be honoured.
• The fitting must be installed, flushed and tested after the valid norms!
• Where the contractor mounts the product, he should ensure that the entire area
of the wall to which the mounting plate is to be fitted, is flat (no projecting joints
or tiles sticking out), that the structure of the wall is suitable for the installation
of the product and has no weak points. The enclosed screws and dowels are
only suitable for concrete. For another wall constructions the manufacturer's
indications of the dowel manufacturer have to be taken into account.
• If required, the bottom part of the pipe between the fixture and the shower head
can be shortened with a fine-toothed saw.
• The premounted filter insert must be used to ensure a normal flow of the shower
and to prevent dirt from entering through the pipes. Dirt entering can affect the
function and/or lead to damages to the shower. Hansgrohe will not be held
liable for this type of damage.
• The shower may only be connected following (downstream from) a shut-off valve
of the sanitary fitting.
• The installation dimensions stated in these installation instructions are ideal
for people of approximately 1800 mm in body height. The dimensions can
be altered if required. In this case, pay attention to the fact that a change of
installation height will also change the minimum height, and that the altered
mounting dimensions must be taken into consideration.
Technical Data
Operating pressure:
Recommended operating pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Thermal disinfection:
Anti-pollution function
The product is exclusively designed for drinking water!
4
English
Symbol description
max. 0,6 MPa
0,1 – 0,4 MPa
60°C
max. 70°C / 4 min
Assembly see page 32
Do not use silicone containing acetic acid!
Maintenance (see page 36)
The non return valves must be checked regularly according to DIN EN
1717 in accordance with national or regional regulations (at least once
a year).
Spare parts (see page 35)
Dimensions (see page 31)
Flow diagram
(see page 31)
Hand shower
overhead shower
Hand shower + overhead shower
Operation (see page 34)
Cleaning (see page 34) and enclosed brochure
Test certificate (see page 35)
