Indoor Unit Installation

Indoor Unit Parts
Safety Precautions
WARNING
• Securely install the indoor unit on a
structure that can sustain its weight. If the
structure is too weak, the unit may fall and
cause personal injury, unit and property
damage, or death.
• Install the indoor unit at a height of more
than 2.5m (8') above the floor.
DO NOT install the indoor unit in a
•
bathroom or laundry room as excessive
moisture can short the unit and corrode
the wiring.
ƒ Page 8 „
Drain pump
(within indoor unit)
Drain pipe
Louver
Display panel
Refrigerant pipe
Air inlet
Front grille

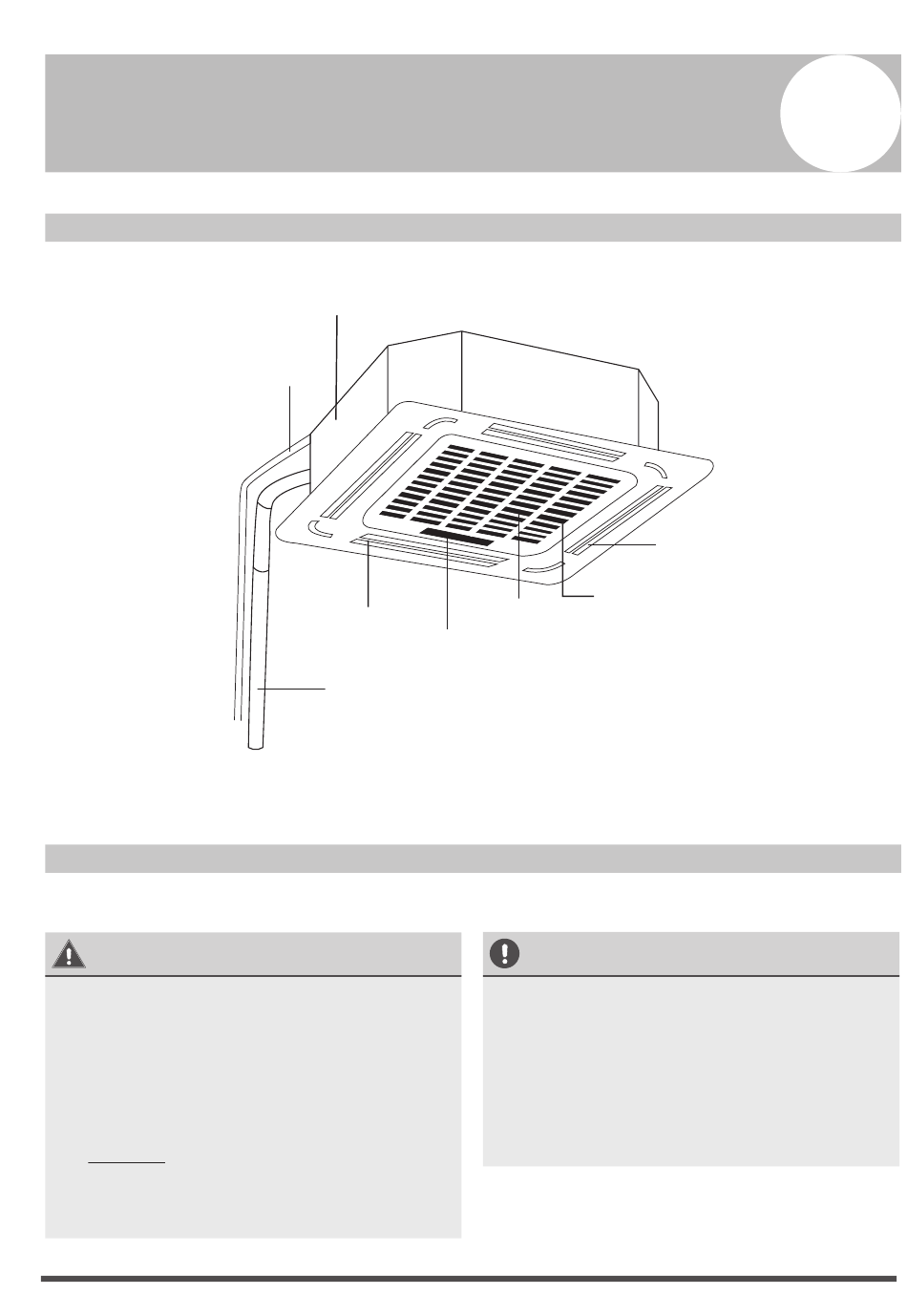

Fig. 4.1
CAUTION
• Install the indoor and outdoor units, cables,
and wires at least 1m (3.2') from televisions
and radios to prevent static or image
distortion. Depending on the appliances,
a 1m (3.2') distance may not be sufficient.
• If the indoor unit is installed on metal,
it must be electrically grounded.
4
Air outlet
