EX-6084

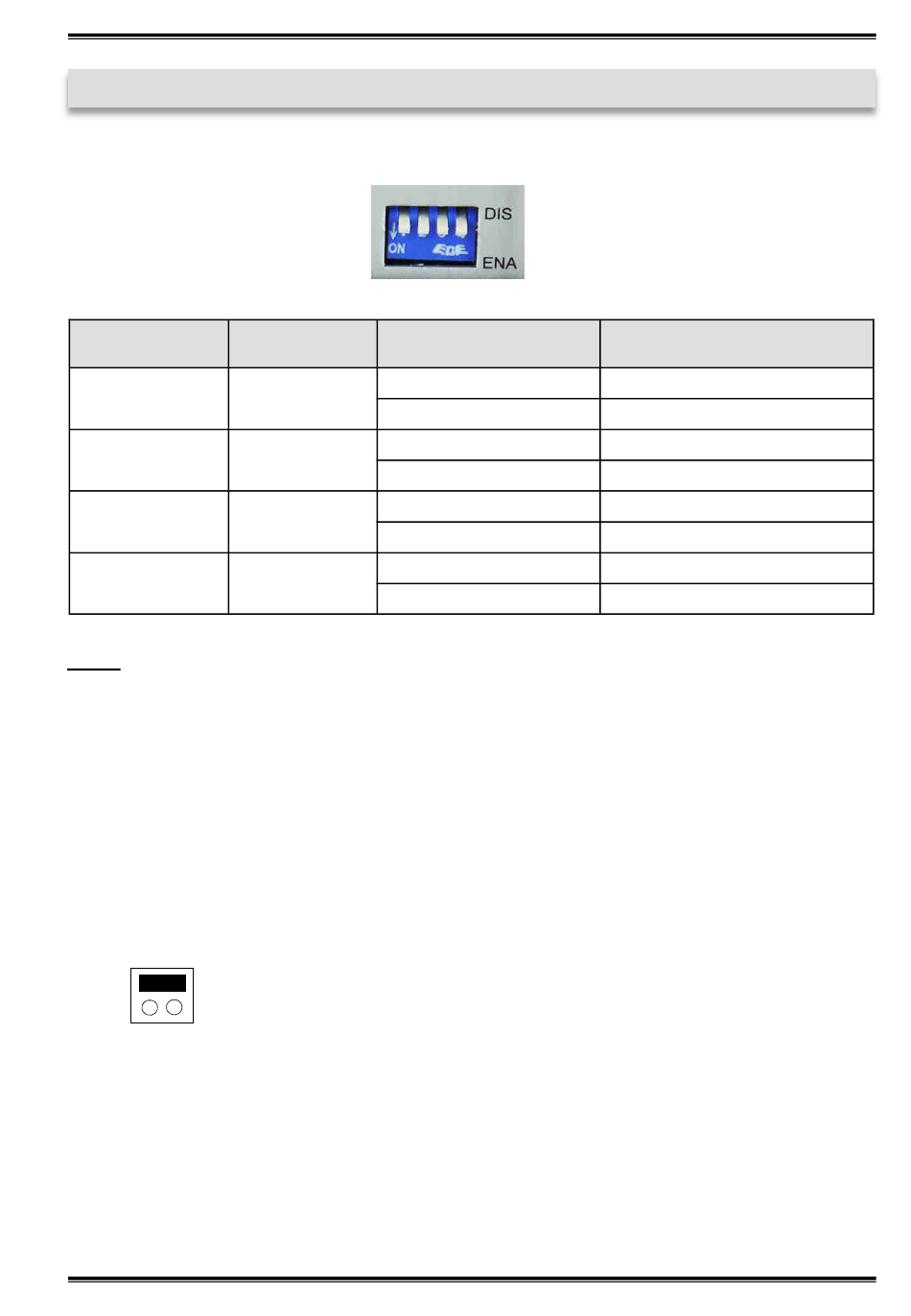

4. DIP-Switch & Jumper Setting

4.1 DIP-Switch

DIP-Switch
1
2
3
4
Note!
*DIP-Switch 1 controls the Onboard Windows Driver. If DIP-Switch 1 is enabled,
then also the driver is enabled. Otherwise the DIP-Switch 1 is disabled, then also
the driver is disabled.

4.2 Jumper Setting

JP1:
DIS
DIS
ENA
ENA
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
Ethernet Port
Port 1
Port 2
Port 3
Port 4
= The EX-6084 is not powered with with Standby Power (3.3V AUX),
when the system is in sleep mode or is powered off.
(Factory Setting)
= The EX-6084 is powered with Standby Power (3.3V AUX), when the
system is in sleep mode or is powered off.
DIP-Switch
Position
OFF
ON
OFF
ON
OFF
ON
OFF
ON
11
English
Description
Disabled*
Enabled* (Factory Setting)
Disabled
Enabled (Factory Setting)
Disabled
Enabled (Factory Setting)
Disabled
Enabled (Factory Setting)
