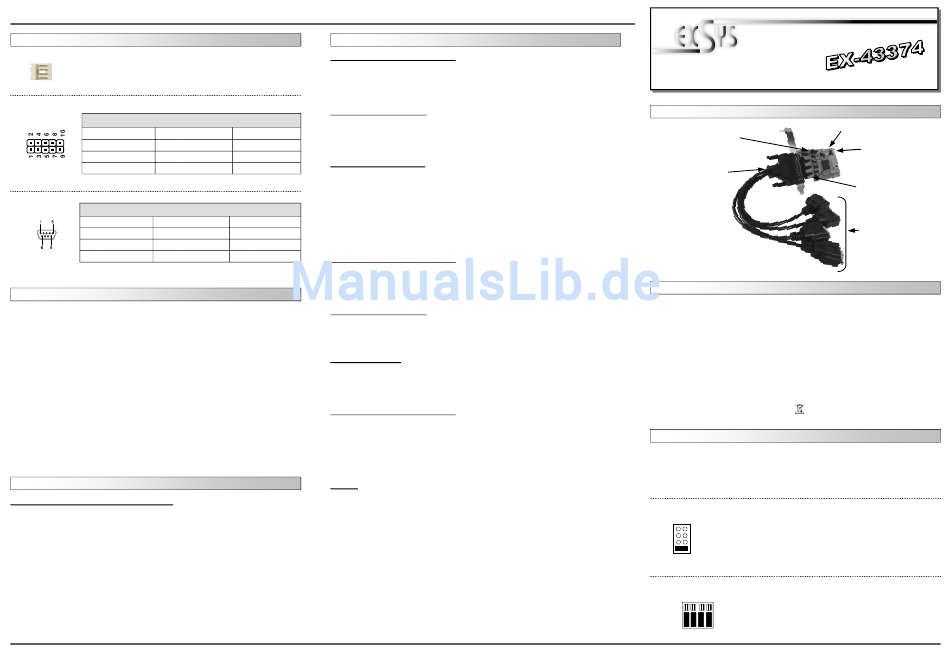

JUMPER SETTING & CONNECTORS
J8:
1 +5V
To use external power (JP4) the PC power supply must be connected
2 GND
3 GND
to J8.
4 +12V
J2-J5:
Serial 10 Pin internal connector
Pin Signal Pin
1 CDC 4
2 RXD 5
3 TXD 6
DB9M:
Serial 9 Pin D-SUB male connector (S1 to S4)
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because there are large differences between PC's, we can give you only a
general installation guide. Please refer to your computer's reference manual whenever
in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows 9x/ ME/ 2000/ XP/ Vista/ 7/ 8
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system into the box for the Path/Source and click at >next/continue<. Now Windows
searches for the drivers in the specified directory. Follow the hardware assistant and
finish the installation. If Windows recognizes other new devices repeat the above de-
scribed steps. Attention! Restart Windows in any case after installing the drivers.
5
English English English EX EX EX- - - 43374 43374 43374
DRIVER INSTALLATION
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that opens select >Device Manager<. Under „Ports (COM and LPT)" you should find
a new „PCI Port" as sample (Com3). If you see this or similar entries the card is in-
stalled correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
Signal Pin Signal
between COM3 to COM256.
DTR 7 RTS
GND 8 CTS
Windows Server 200x
DSR 9 RI
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system for Server 2000 "2000", for Server 2003 "XP32" or "XP64", for Server 2008
„Vista32" or „Vista64" and for Server 2008 R2 „Win7_8_32bit" or „Win7_8_64bit" into
the box for the Path/Source and click at >next/continue<. Now Windows searches for
Signal Pin Signal
the drivers in the specified directory. Follow the hardware assistant and finish the instal-
DTR 7 RTS
lation. If Windows recognizes other new devices repeat the above described steps.
Attention! Restart Windows in any case after installing the drivers.
8 CTS
DSR 9 RI
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that opens select >Device Manager<. Under „Ports (COM and LPT)" you should find
a new „PCI Port" as sample (Com3). If you see this or similar entries the card is in-
stalled correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM3 to COM256.
Windows NT 4.0
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).
Click at >Start< >Run< and enter „D:\IO\OXFORD\NT4\Install_Serial.exe" then click
>OK<. Windows NT will now start the setup program and install the driver. Please
Restart Windows NT after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at >Start< >Programs< >Administrative Tools[Common]< >Windows NT-
Diagnostics< then click at >Resource< >IRQ<. Here you should find the entry „09
oxser 0 PCI". Then click at >I/O-Port< here you should see the entries „D400-D407
oxser 0
for the ports. The I/O addresses can change depends which system and card is in-
stalled. If you see these or similar entry's the card is installed correctly.
LINUX
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard I/O ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
PCI" „D800-D802 oxser 0 PCI" and „DC00-DC1F oxser 0 PCI"
6
English English English
Bedienungsanleitung Bedienungsanleitung
Vers. 1.2 / 02.08.13
AUFBAU
JP2: Jumper für Power auf Pin9
für Port S1 bis S4
44 Pin Buchse für den
Anschluss des Octopus-
Kabel (4 x 9 Pin)
BESCHREIBUNG & TECHNISCHE DATEN

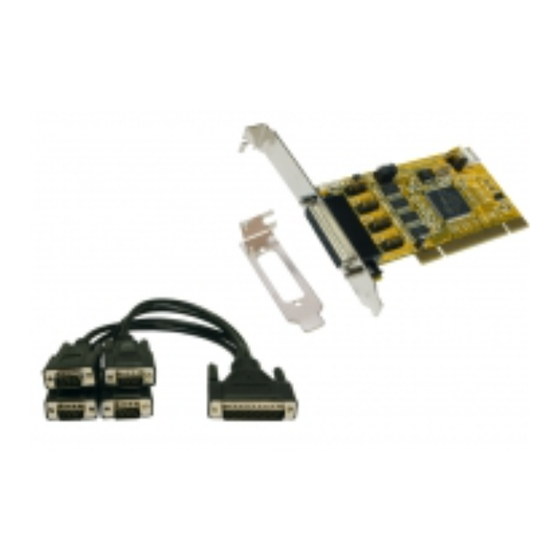

Die EX-43374 ist eine PCI serielle RS-232 Karte mit vier seriellen FIFO 16C95x Ports,
für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B. Terminal,
Modem, Plotter usw.). Sie unterstützt den 32 und 64-Bit PCI bzw. PCI-X Bus mit 5 Volt
und 3,3 Volt. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustellen,
da die Einstellungen der Karte vom System (BIOS) und beim Installieren des Betriebs-
systems automatisch vorgenommen werden. Es besteht bei Bedarf die Möglichkeit, +5V
- oder +12V auf einen von vier Pins der beiden 9 Pin Stecker zu legen (POS System).
Kompatibilität: PCI & PCI-X 3,3Volt & 5Volt bei 33Mhz
Betriebssysteme: WIN 9x/ ME/ NT4.0/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Linux
Anschlüsse: 4x 9 Pin D-SUB Seriell Stecker
Lieferumfang: EX-43374, Treiber CD, Anleitung, Oktopus Kabel, LowProfile Bügel
Zertifikate: CE CE CE CE / FCC / RoHS / WEEE
JUMPER EINSTELLUNG & ANSCHLÜSSE
Mit der EX-43374 haben Sie die Möglichkeit +5V- oder +12V auf 9 Pin der Steckers S1
bis S4 zu konfigurieren:
Achtung!! Nur konfigurieren wenn für das Peripheriegerät auch +5Volt oder +12Volt
gebraucht wird. Für normale Anwendungen Jumper nicht verändern.
JP4:
(Nur in Verbindung mit JP2 auf PWR!!!)
I5V
I12V = Strom auf PIN 9 mit 12Volt vom Mainboard (STANDARD)
X5V
X12V = Strom auf PIN 9 mit 12Volt vom PC-Netzteil
X12V
I12V
X5V = Strom auf PIN 9 mit 5Volt vom PC-Netzteil
I5V = Strom auf PIN 9 mit 5Volt vom Mainboard
JP2:
S S S S
1 2 3 4
PWR
PWR = +5V oder +12V auf Pin 9 eingeschaltet
DIS = +5V oder +12V auf Pin 9 ausgeschaltet (Werkseinstellung)
DIS
JP4: Umschaltung der Spannung
von PCI-BUS auf PC-Netzteil
J8: Anschluss vom
PC Netzteil für
+5V oder +12V
Spannung
J2-J5: Interne Serielle 10
Pin Anschlüsse
S1-S4:
9 Pin Stecker
Seriell RS-232 Anschluss
DE97424562 / WHQL
