Exsys EX-6081 Anleitung

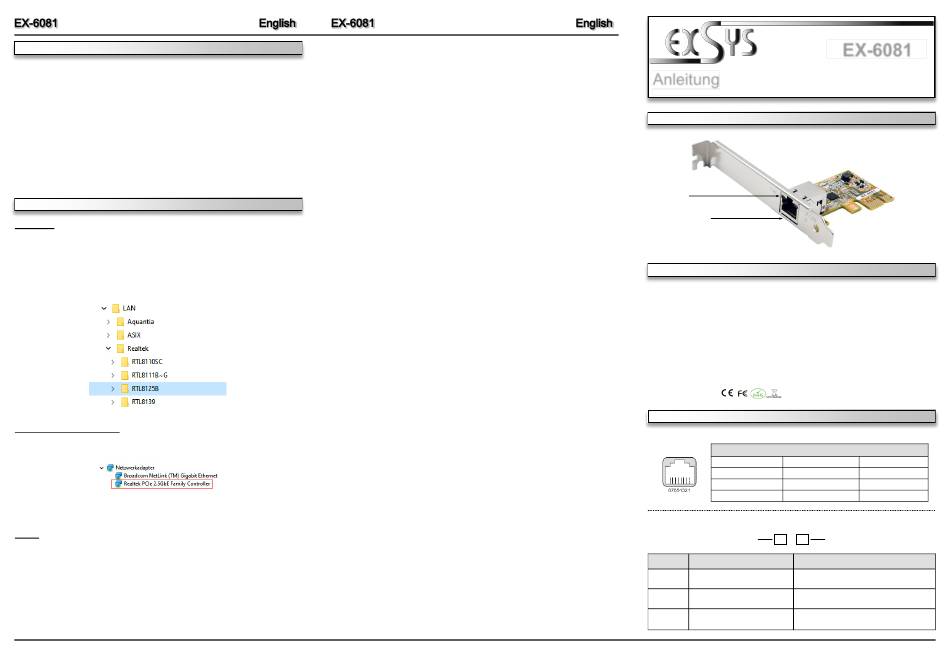

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-6081. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD-
ROM drive (eg drive D:) and then open the folder „LAN/Realtek/RTL8125B". Please select the
folder with your operating system and install the driver (see Picture). Follow the hardware
assistant and finish the installation. Important! Restart your PC in any case after installing the
drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Network adapters" the following new
entry's:
If you see this or a similar information the device is installed correctly.
Linux
The drivers are located in the following folder on our driver CD:
"D:\LAN\Realtek\8125B\Linux"
Because each individual version/distribution and kernel version of Linux is different, sadly we
can not provide a installation instruction. Please refer to the installation manual for Ethernet
ports from your Linux version! In some newer versions the card will even be installed automati-
cally after starting the OS.
5
AUFBAU
Status LED´s
1x RJ45 Anschlüsse
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-6081 ist eine high speed 2,5Gigabit Ethernet PCI-Express Karte. Sie ist mit einem
externen Port ausgestattet. Sie unterstützt alle PCI-Express Slots von x1 bis x16. Der PCI-
Express Bus unterstützt optimal die Leistung des schnellen Renesas Chipsatz. Die EX-6081
gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu
2500Mbit/s! Im Lieferumfang ist zusätzlich ein Low Profile Bügel enthalten, welches auch einen
Einbau in Slimline Gehäuse ermöglicht!
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE & LED`S
RJ45 Anschluss:
Status LED´s:
6
Anleitung
Vers. 1.0 / 24.02.21
PCI-Express x1 bis x16
Windows 7/ 8.x/ 10/ Server 20xx/ Linux
1x RJ45 2,5Gigabit Ethernet Anschluss
EX-6081, Treiber CD, Anleitung, Low Profile Bügel
RJ45 Anschluss
Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+
2 BI_DA- 5 BI_DC-
3 BI_DB+ 6 BI_DB-
Grüne LED Dual Farbige LED
Modi Grüne LED
An = Verbunden
2,5G
Blinkend = Datenübertragung
Grün leuchtend = Verbunden
1G Aus
Grün blinkend = Datenübertragung
Bernstein leuchtend = Verbunden
10/100M Aus
Bernstein blinkend = Datenübertragung
1
EX-6081
Pin Signal
7 BI_DD+
8 BI_DD-
Dual Farbige LED
Aus
