Connection
Pool sensor must be connected on the EBV card on termi­
nal X1:16–17.
To connect the shuttle valve and any external pool circula­
tion pump, carry out the following:
First cut the power supply before working inside the
■
unit. All work on high current circuits must be carried
out under the supervision of an authorised electrician.

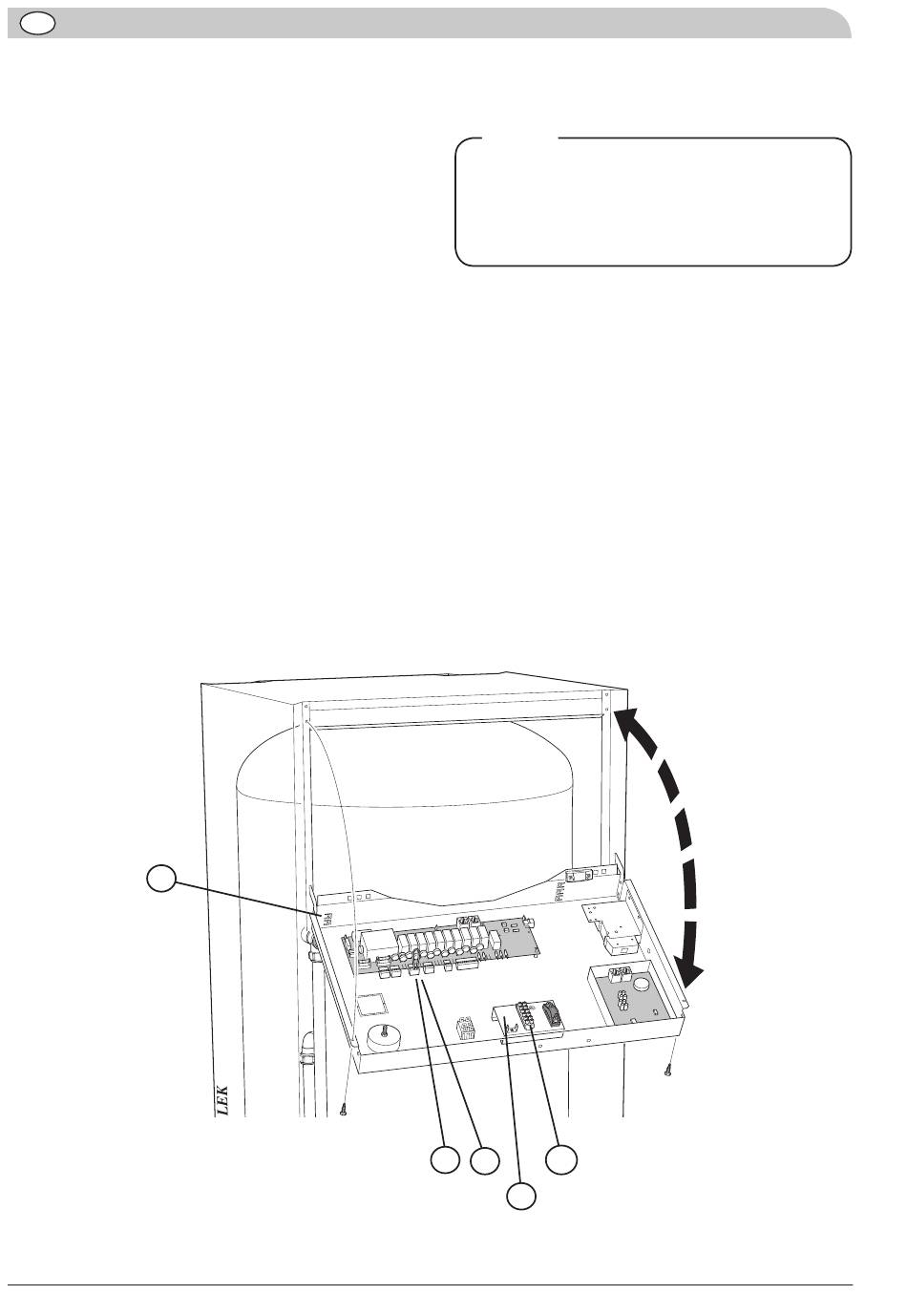

Place the panel (A) with terminal block on the inside
■
of the cover for the upper electrical panel. Clean using
denatured alcohol or similar before securing the panel
using the double­sided tape.
Remove the bridge connector (B) on the relay card
■
terminals 7–9.
Install the 6­pin connector (C) in terminals 6–11.
■
Connect the green­yellow ground lead to a ground
■
contact (D) in the cover.
Secure the cables with the supplied tie strap.
■
Connect the shuttle valve to terminal X13:1 (control
■
phase), X13:2 (L), X13:3 (N)
Connect any external pool circulation pump to termi­
■
nal X13:4 (L), X13:5 (N), X13:6 (PE)
Max. 1 A and 230V
Replace existing CPU card if necessary (must be ver­
■
sion 1.11 or greater).
D
6
Note!
Sensor and communication cables
must not be placed near power
B
C X13
A
POOL 20
cables.
Supplied panel with
terminal block
