Description Of The Device - EuroLite LED TBL-200 Bedienungsanleitung

DESCRIPTION OF THE DEVICE

Features
Powerful mirror barrel effect with 20 W LED array
• Equipped with a 20 W COB LED
• Comparable to the light output of a 250 W halogen lamp
• DMX-controlled operation or stand-alone operation with Master/Slave function (up to 4 slaves)
• Sound-controlled via built-in microphone
• Microphone-sensitivity adjustable via rotary-control
• Fuzzy sound control: program continues automatically during periods without music or bass-beat
• 7 brilliant, dichroic colors plus white
• Rainbow effect with adjustable speed
• Gobo-wheel with 7 rotating gobos plus open
• With gobo-shake function
• Strobe effect with 1-18 flashes per second
• Strobe effect with adjustable speed
• Random strobe effect
• Manual focus
• Dimmer
• Fan-cooled
• Small and portable
• Control board with 4-digit display
• 6.3 mm jack socket for remote control
• Blackout, gobos, colors and Auto/Manual Mode applicable in Stand Alone mode via optional EUROLITE
RC-1 remote control
• DMX control via every standard DMX controller

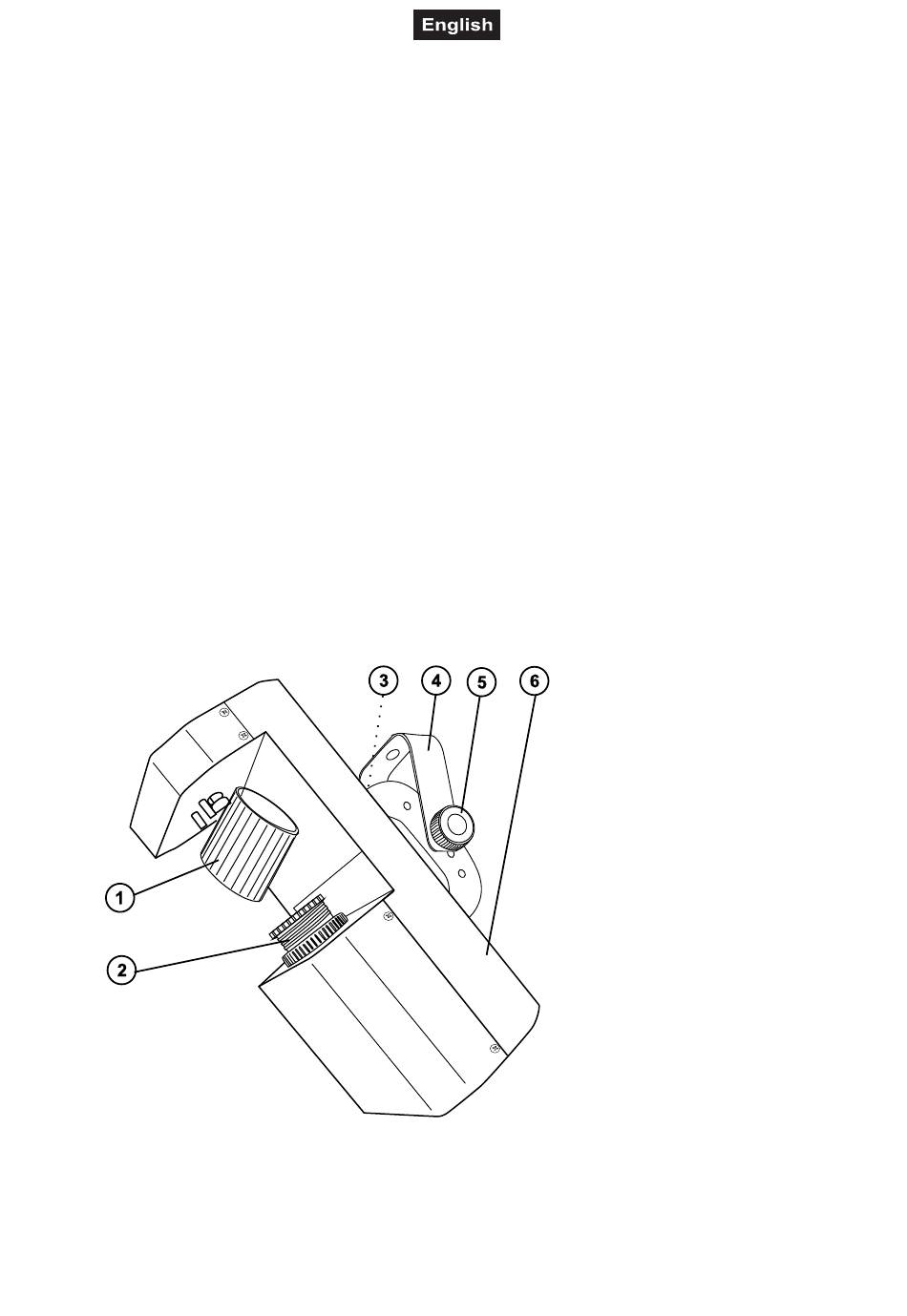

Overview
(1) Mirror barrel
(2) Objective-lens
(3) Safety eyelet
(4) Mounting bracket
(5) Fixation screw
(6) Housing cover
19/28 00074031.DOC, Version 1.1
