MSAC506
20

Accessory connector

ACHTUNG
NOTICE

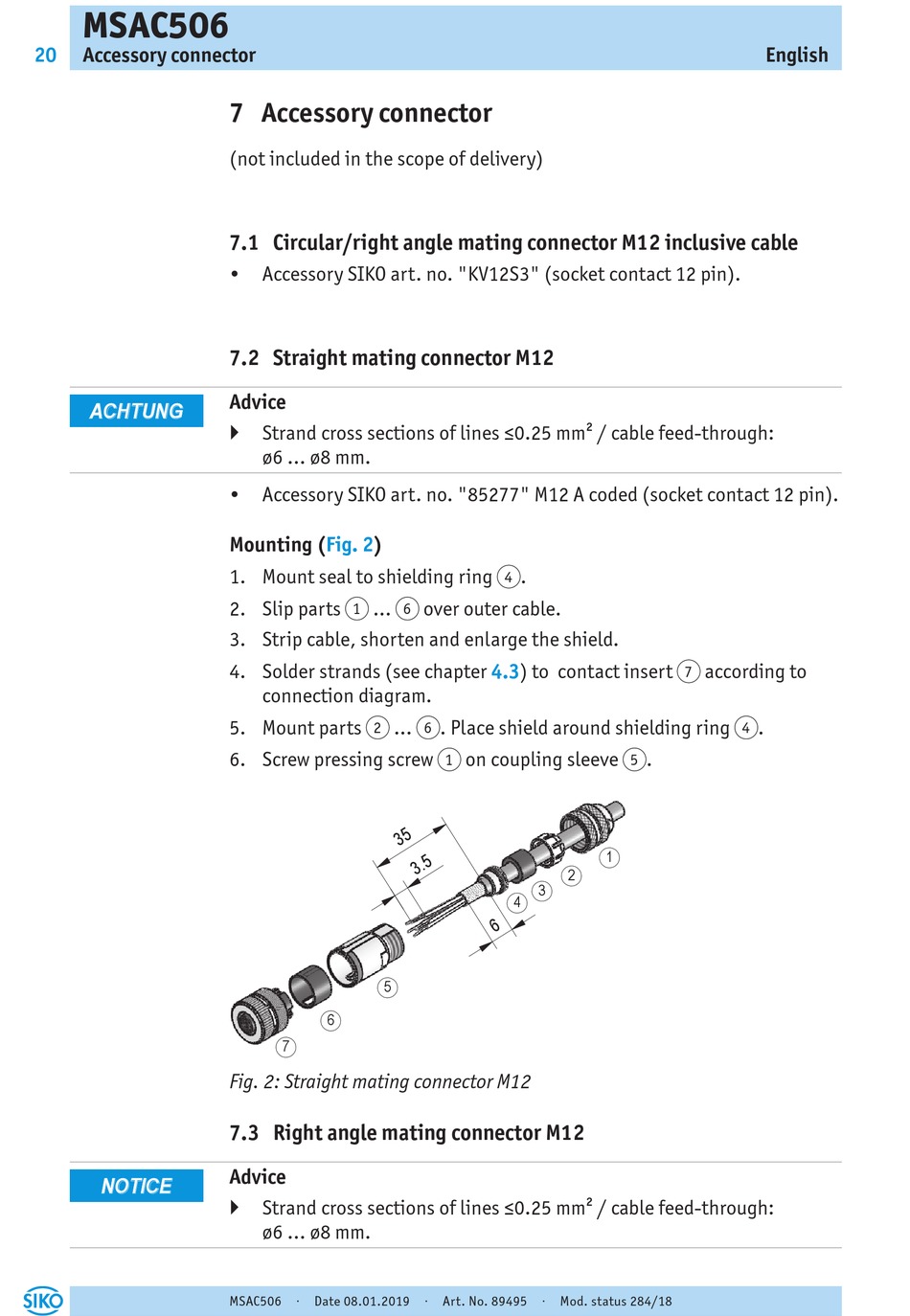

7 Accessory connector
(not included in the scope of delivery)

7.1 Circular/right angle mating connector M12 inclusive cable

• Accessory SIKO art. no. "KV12S3" (socket contact 12 pin).

7.2 Straight mating connector M12

Advice
` Strand cross sections of lines ≤0.25 mm² / cable feed-through:
ø6 ... ø8 mm.
• Accessory SIKO art. no. "85277" M12 A coded (socket contact 12 pin).
Mounting (Fig. 2)
1. Mount seal to shielding ring
2. Slip parts ...
1
3. Strip cable, shorten and enlarge the shield.
4. Solder strands (see chapter 4.3) to contact insert
connection diagram.
5. Mount parts ...
2
6. Screw pressing screw
5
6
7
Fig. 2: Straight mating connector M12

7.3 Right angle mating connector M12

Advice
` Strand cross sections of lines ≤0.25 mm² / cable feed-through:
ø6 ... ø8 mm.
MSAC506 · Date 08.01.2019 · Art. No. 89495 · Mod. status 284/18
.
4
over outer cable.
6
. Place shield around shielding ring
6
on coupling sleeve
1
2
3
4
English
according to
7
.
4
.
5
1
