MSAC506
18 Installation
WARNING
NOTICE
NOTICE

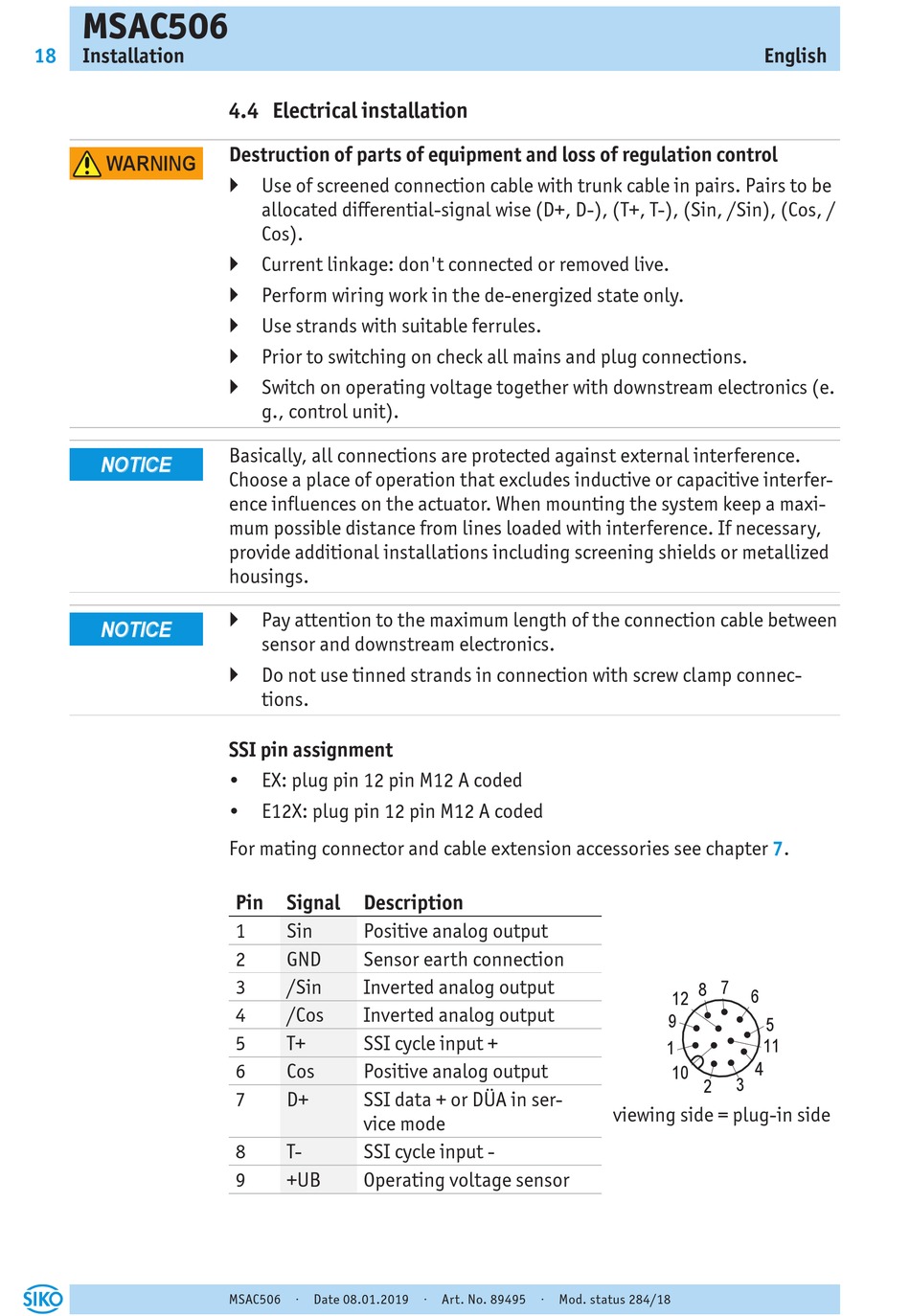

4.4 Electrical installation

Destruction of parts of equipment and loss of regulation control
` Use of screened connection cable with trunk cable in pairs. Pairs to be
allocated differential-signal wise (D+, D-), (T+, T-), (Sin, /Sin), (Cos, /
Cos).
` Current linkage: don't connected or removed live.
` Perform wiring work in the de-energized state only.
` Use strands with suitable ferrules.
` Prior to switching on check all mains and plug connections.
` Switch on operating voltage together with downstream electronics (e.
g., control unit).
Basically, all connections are protected against external interference.
Choose a place of operation that excludes inductive or capacitive interfer-
ence influences on the actuator. When mounting the system keep a maxi-
mum possible distance from lines loaded with interference. If necessary,
provide additional installations including screening shields or metallized
housings.
` Pay attention to the maximum length of the connection cable between
sensor and downstream electronics.
` Do not use tinned strands in connection with screw clamp connec-
tions.
SSI pin assignment
• EX: plug pin 12 pin M12 A coded
• E12X: plug pin 12 pin M12 A coded
For mating connector and cable extension accessories see chapter 7.
Pin Signal Description
1 Sin Positive analog output
2 GND Sensor earth connection
3 /Sin Inverted analog output
4 /Cos Inverted analog output
5 T+ SSI cycle input +
6 Cos Positive analog output
7 D+ SSI data + or DÜA in ser-
vice mode
8 T- SSI cycle input -
9 +UB Operating voltage sensor
MSAC506 · Date 08.01.2019 · Art. No. 89495 · Mod. status 284/18
English
7
8
6
12
9
5
11
1
4
10
3
2
viewing side = plug-in side
