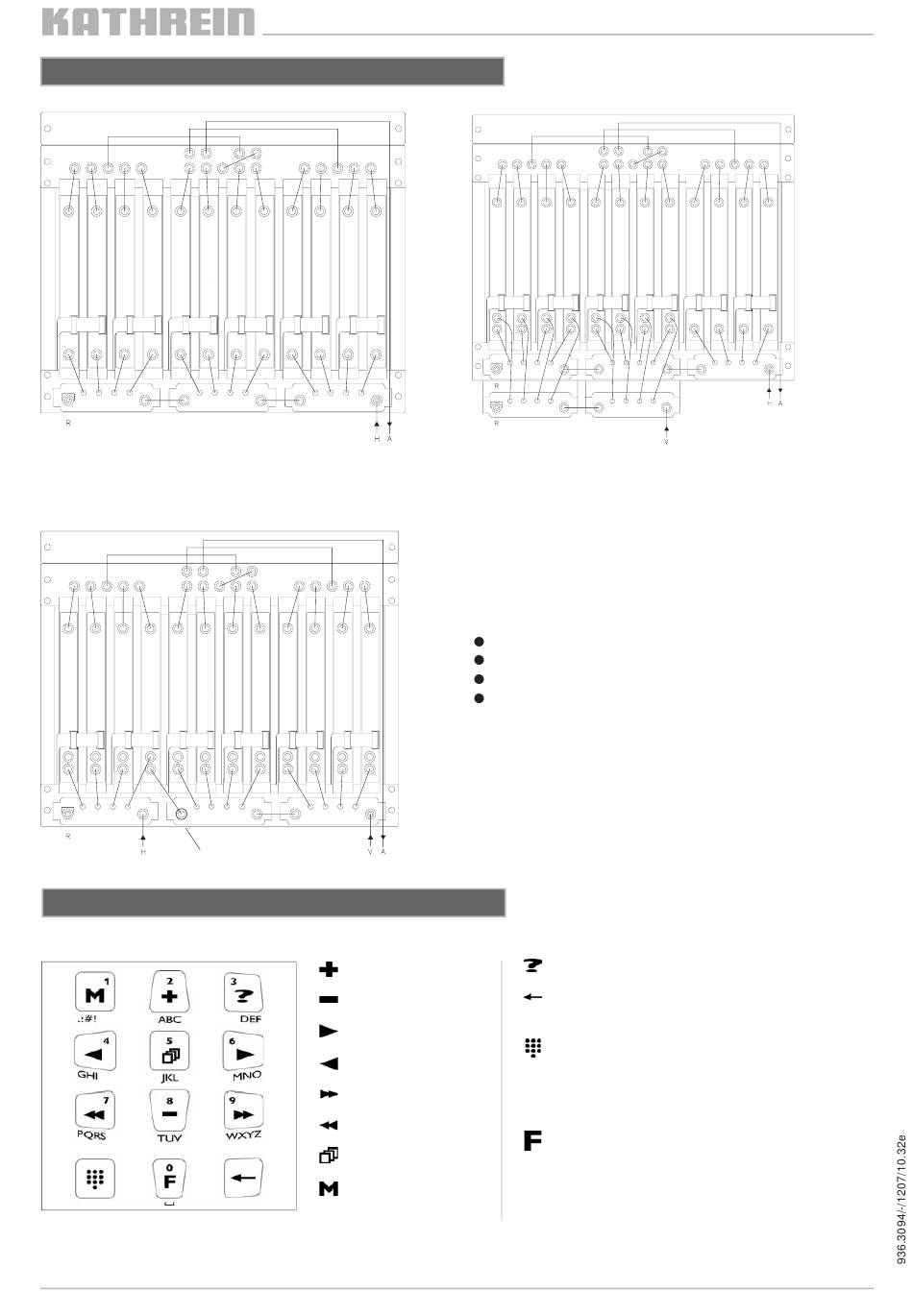

Layout variants with UFG 412 / UFG 412/R
0/12
Please check that the input level for the channel units at
the H input does not fall below the permissible value
(see also the user instructions for the channel unit).
17/7 ERE 02
Programming using the UFG 300 controller
1 Explanation of the keypad
The controller's power supply comes via the module by use
of a UFX 312 or UFX 314 controller bus demultiplexer.
0/12 + 8
2 x UFZ 300 are necessary (not included with the
UFG 412 / UFG 412/R base units).
R = Terminating resistor
Order numbers for the accessories that are illustrated:
ERE 01
ERE 02
EMU 02
UFZ 300
Screw the ERE 02 to the loop-through output of the splitter
and connect it to the Sat-IF input of the twin module using
EMU 02 F right angle plugs and the F connection cable that
is freed
Increase value
Decrease value
Next parameter
Previous parameter
Next channel unit
Previous channel unit
Sub-menu
Save all parameter
values
274854
274855
273245
20610070
Help text for the currently selected parameter
Move the cursor to the left in
alphanumeric input mode
Change editing mode:
1. press - Switch to the alphanumeric input
mode
2. press - Load the input and exit the
alphanumeric input mode
System menu:
- Language setting
- Display the software versions
of the controller and channel unit
- Special functions (cable-NIT)
* Not included
