Features
Base units each with 12 insert positions
Suitable for wall mounting (if necessary using additional
UFZ 412 wall mounting kit) and for fi tting in 19" rack cabinets
(such as Kathrein TUG 100)
Reliable heat dissipation thanks to two fans, therefore suitable for
use in non-air-conditioned rooms and where the contents of 19"
racks are tightly packed
Prepared for mounting the UFX 314 data bus de-multiplexer
Galvanised sheet steel module rack
Installation height: 9 RU
For indoor installation

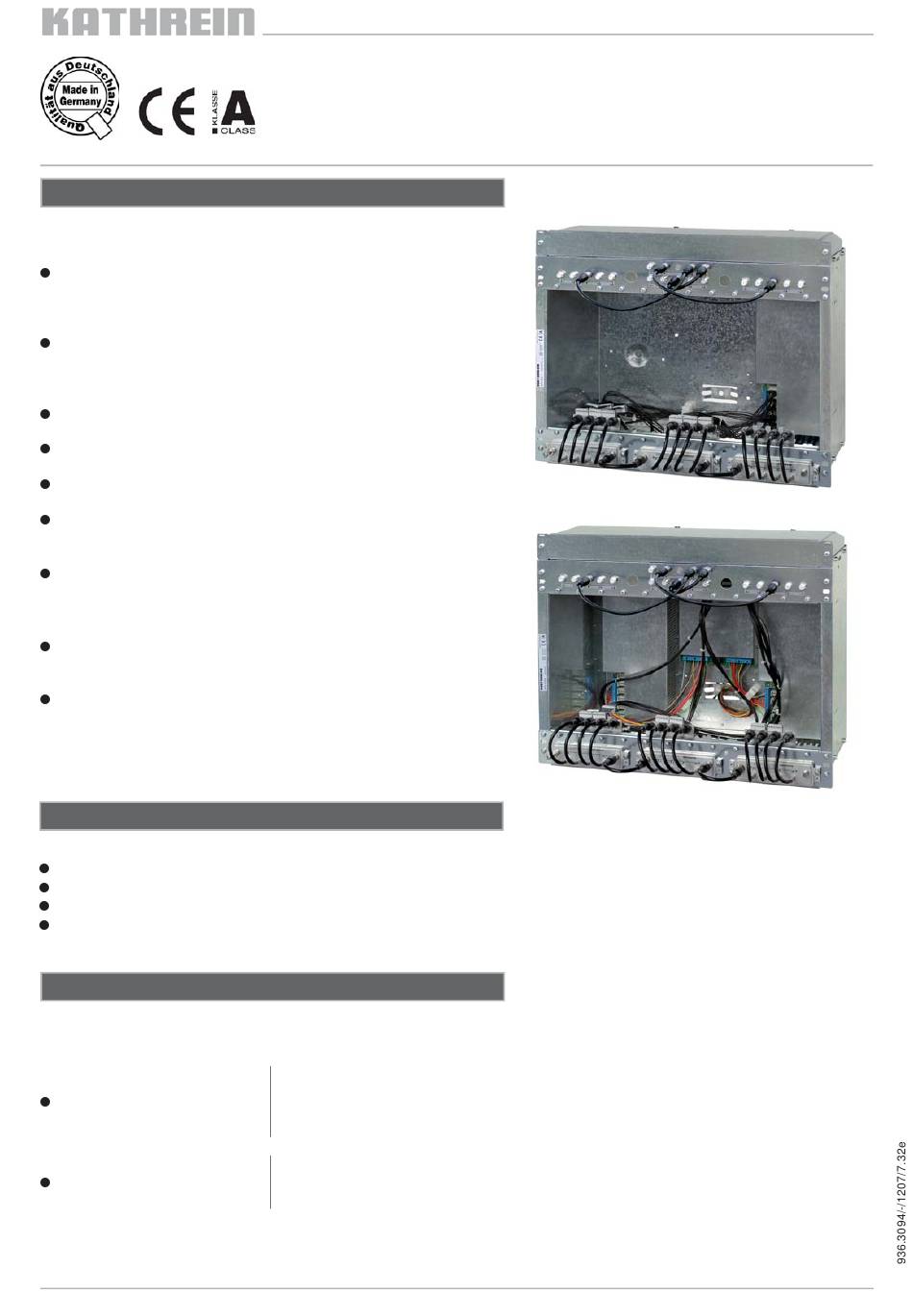

UFG 412:
Completely pre-assembled, with power supply unit, fans, output
coupler, input splitter and cabling
UFG 412/R:
Completely pre-assembled, with two power supply units,
redundancy unit, fans, output coupler, input splitter and cabling
Increased operational security with half-load parallel operation of
the two power supply units via the redundancy unit
Accessories
(not included)
UFG 300 20610082
UFZ 412 20610092
UFX 314 20610071
USW 30 20610041

Installation instructions

The UFG 412 / UFG 412/R base units are suitable both for installation in 19" rack cabinets and also for wall mounting.
Wall mounting
19" rack cabinet installation
UFO ® compact signal processing system
Base units
Controller
Wall mounting kit
Data bus de-multiplexer
Software
If there is no requirement for an enclosed base unit, these can be mounted directly on the
wall using only three screws.
The UFZ 412 wall mounting kit (not included) allows the base units to be arranged in a
lockable unit together with amplifi er and remote feed diplexer.
In air-conditioned rooms with a maximum ambient temperature of 40 °C, up to four base
units can be stacked one above the other.
A minimum of one height unit clearance should be left between each of the units
UFG 412
UFG 412/R
UFG 412
20610090
UFG 412/R
20610091
