3 - PRELIMINARY CHECKS

Before the installation starts, we suggest to carry out following
inspections and operations:
the gate framework must be strong and suitable;
the gate must not show too many sideways slide skids during the
running;
the system of wheels/lower rail and roller/upper runner must work
without too many frictions;

4 - INSTALLING THE PRODUCT

4.1 - Manual running

Insert the key and turn it 90° in anticlockwise direction.
N.B. Take care to re-engage the gearmotor before starting it up. Engaging with the motor running may damage its internal components.
4.2 - Installing
Respecting the overall size, fix to ground the base-plate through
4 sturdy screw-anchors (fig.3) or drown it into the concrete (fig.4).
N.B. The exact dimensions of the rack must be known to allow precise calculation of the counterplate position.
14
to avoid the gate derailment you must install the stop beats of the
sliding, whether at the opening or closing, and a second upper
roller/runner in full observance of the current law;
remove any manual lock in the beforehand gates;
take on the gate bottom the feed raceway of the feeding cables
(Ø25-50mm) and of external connection (photocell, flash-light, key
selector, etc...).
Pull the knob till it is perpendicular to the gearmotor.

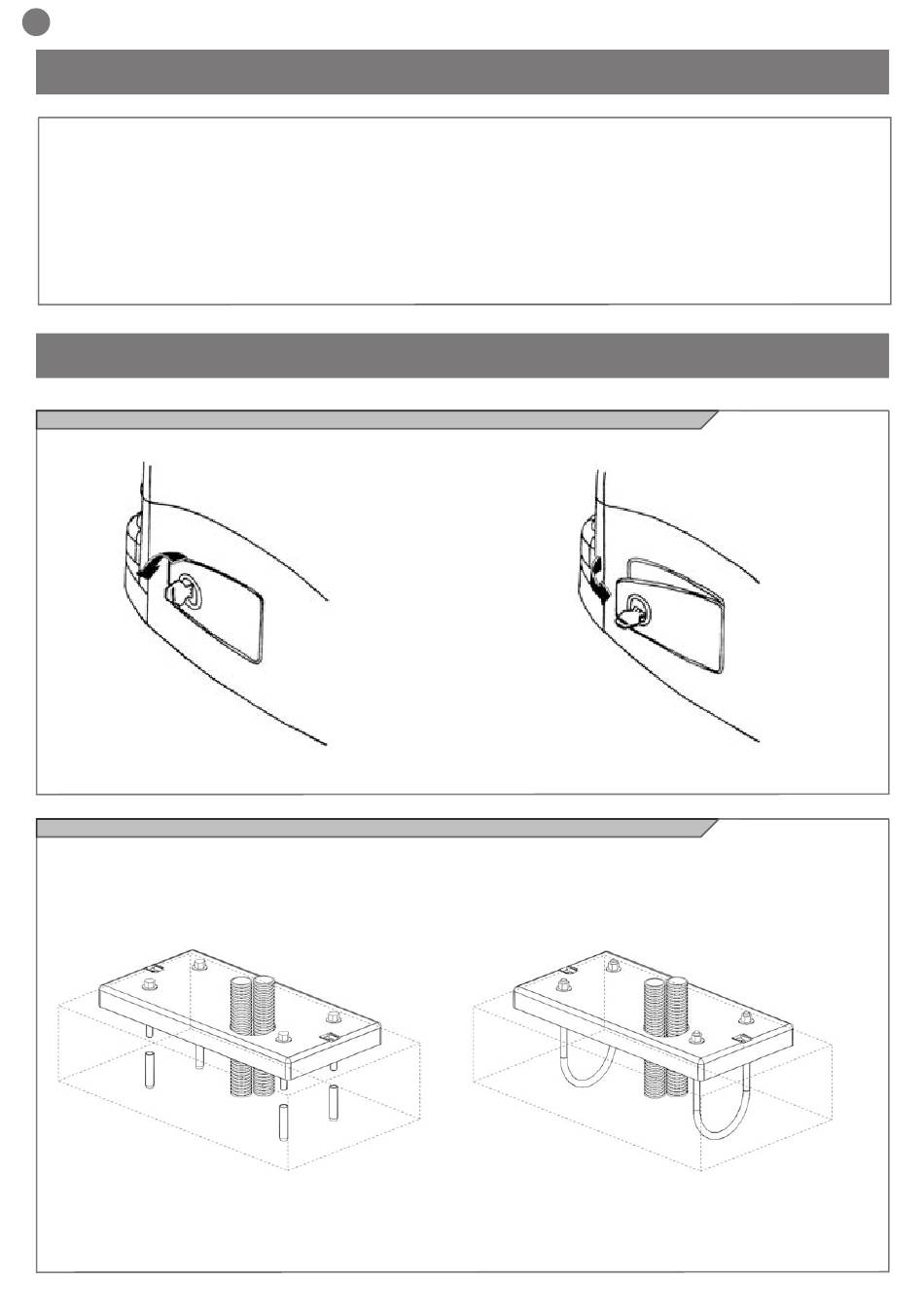

Fig. 2
Plan for one or more sheathing for the passage of the power lines.
Fig. 3 Fig. 4
