Installation and Operating Instructions
EN
CHAPTER 3
MOUNTING/
INSTALLATION
®
MultiVent
MV EC..
3.0

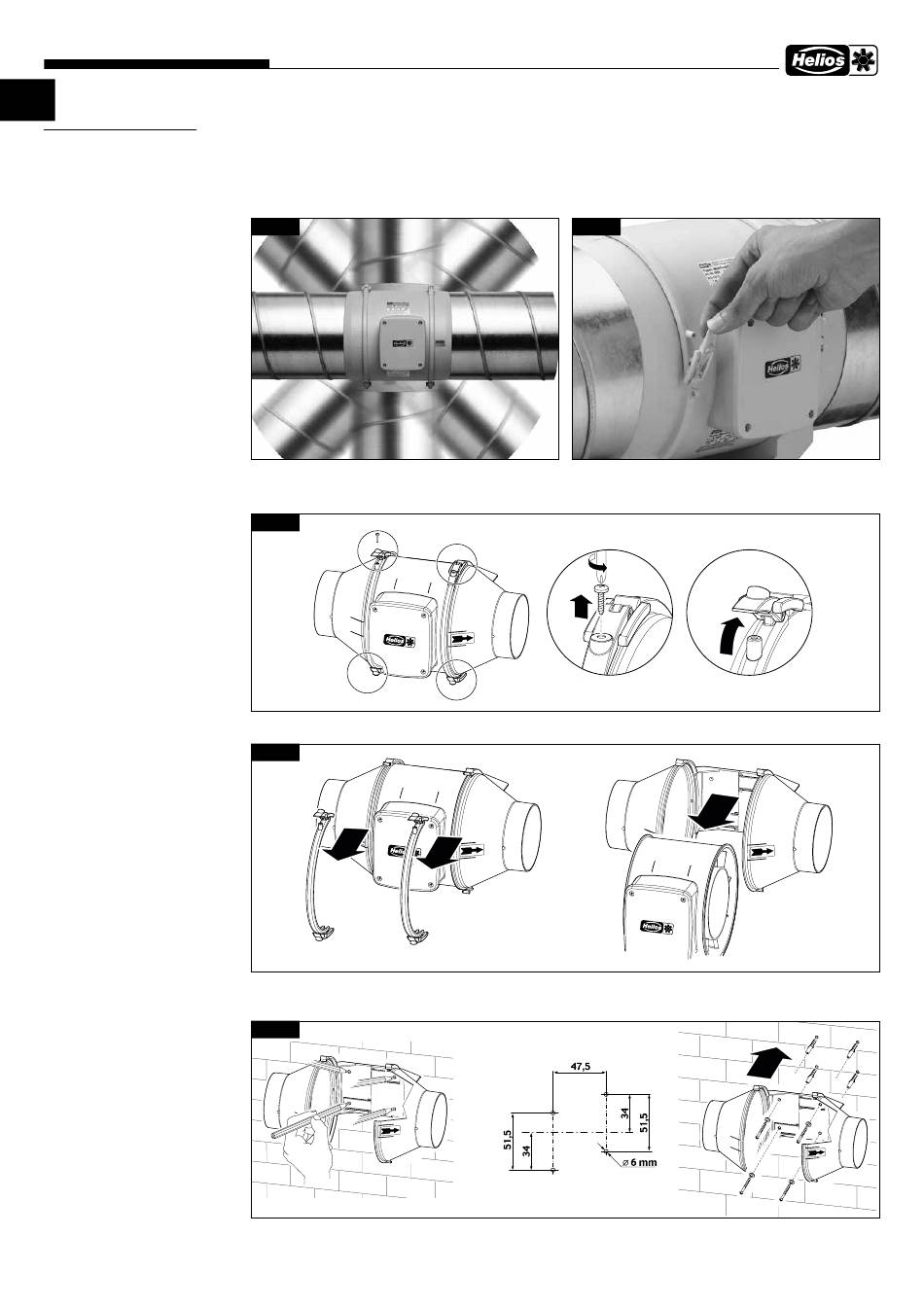

Installation
The fans are delivered as complete units as standard, i.e. ready for installation. Installation is possible in every axle position
– horizontal, vertical, diagonal (see Fig. 11). The fans are easy to remove by opening the clamp (see Fig. 12). The fan
requires little space due to its low construction height, e.g. in suspended ceilings.
Fig.11
Wall and ceiling installation takes place with the mounting bracket integrated in the fan.
For this purpose, loosen the screws (4x) on both clamps and press lock upwards (see Fig. 13).
Fig.13
Remove clamp and fan unit from the mounting bracket (see Fig. 14).
Fig.14
Mark mounting position and drill holes and fasten with dowels and screws (in scope of delivery) (see Fig. 15). Then
replace the fan unit and mount the clamp.
Fig.15
Fig.12
4
