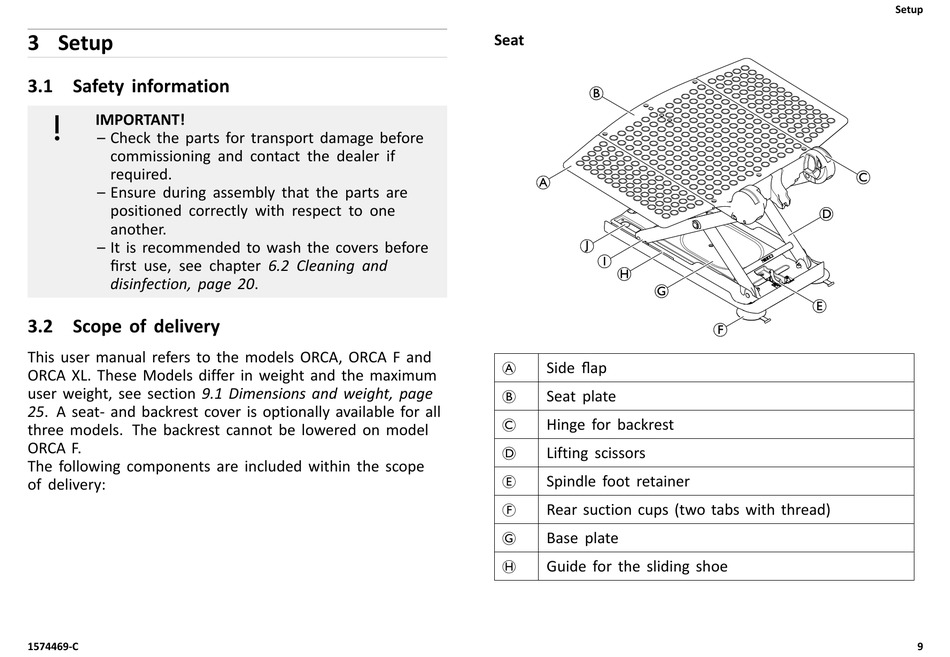

3 Setup

3.1 Safety information

IMPORTANT!
– Check the parts for transport damage before
commissioning and contact the dealer if
required.
– Ensure during assembly that the parts are
positioned correctly with respect to one
another.
– It is recommended to wash the covers before
first use, see chapter 6.2 Cleaning and
disinfection, page 20.

3.2 Scope of delivery

This user manual refers to the models ORCA, ORCA F and
ORCA XL. These Models differ in weight and the maximum
user weight, see section 9.1 Dimensions and weight, page
25. A seat- and backrest cover is optionally available for all
three models. The backrest cannot be lowered on model
ORCA F.
The following components are included within the scope
of delivery:
1574469-C
Seat
Side flap
A
Seat plate
B
C Hinge for backrest
Lifting scissors
D
Spindle foot retainer
E
F Rear suction cups (two tabs with thread)
Base plate
G
Guide for the sliding shoe
H
