Aquatec® ORCA / ORCA F / ORCA XL

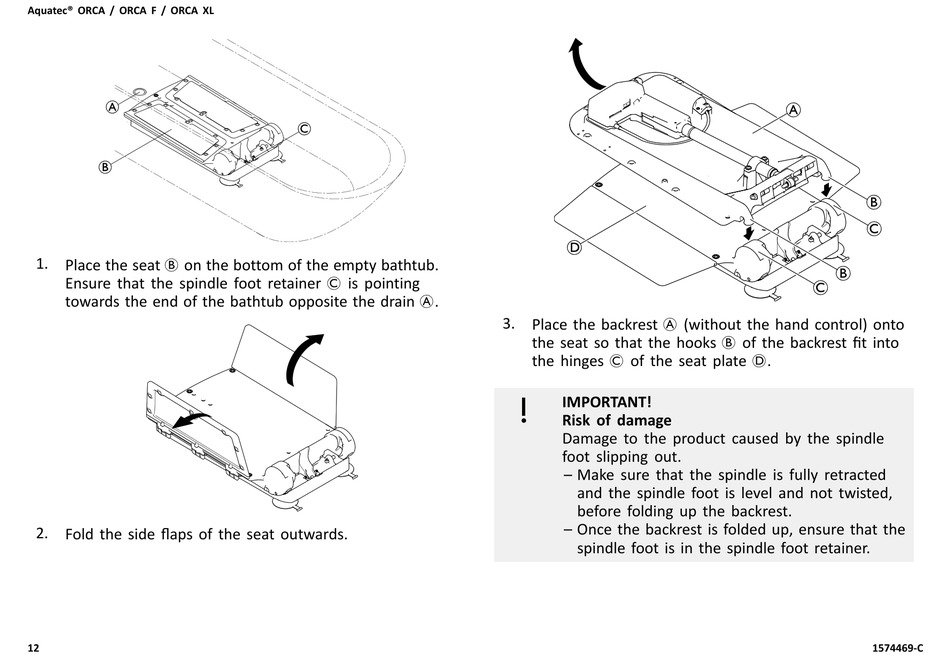

1. Place the seat B on the bottom of the empty bathtub.
Ensure that the spindle foot retainer C is pointing
towards the end of the bathtub opposite the drain A.
2. Fold the side flaps of the seat outwards.
12
3. Place the backrest A (without the hand control) onto
the seat so that the hooks B of the backrest fit into
the hinges C of the seat plate D.
IMPORTANT!
Risk of damage
Damage to the product caused by the spindle
foot slipping out.
– Make sure that the spindle is fully retracted
and the spindle foot is level and not twisted,
before folding up the backrest.
– Once the backrest is folded up, ensure that the
spindle foot is in the spindle foot retainer.
1574469-C
