MX 430B

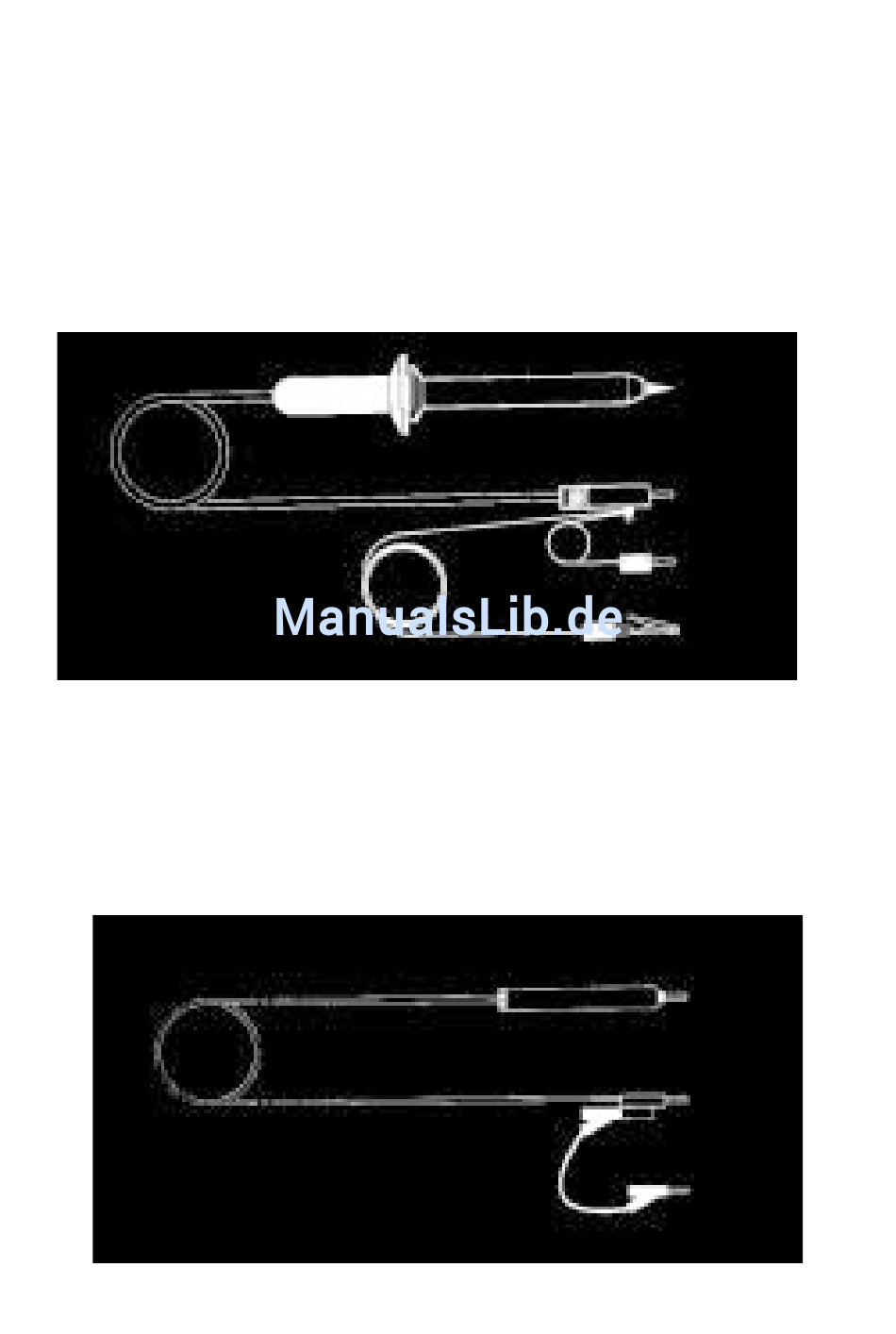

3.4.5 EHT probes 3.4.5 EHT probes
3.4.5 EHT probes 3.4.5 EHT probes 3.4.5 EHT probes
30 kV and 15 kV DC
Connect to - COM and V mA kW / W sockets
multimeter at 25 µ A DC (50 mV DC)
Read on black scale 150 (V x 200 or V x 100)
3.4.6 TV filter probe (see HA0902 instruction book) 3.4.6 TV filter probe (see HA0902 instruction book) 3.4.6 TV filter probe (see HA0902 instruction book)
3.4.6 TV filter probe (see HA0902 instruction book) 3.4.6 TV filter probe (see HA0902 instruction book)
Avoids VAC HF high peaks when the multimeter has been set to V DC 500 V
or 1500 V ranges
m A V kW / W
- COM
35
