Important information

Target group

Qualified craftsmen
Specialist personnel trained by Techem
Device properties
The computer unit is non-detachable. It has no internal stop and can be rotated as
desired.
Available as an M-bus version or with pulse output
Available in two variants with an integrated outlet sensor and a free inlet sensor or with
2 free temperature sensors.

Installation

Requirements
The heat meter must be protected against magnetite and dirt for the device's entire
working life.
Shut-off valves must be installed in front of the strainer and behind the heat meter.
Only install the heat meter in the section for which it is constructed - the outlet variant in
the low temperature section (outlet) and the inlet variant in the high temperature section
(inlet). Observe the name plate.
Installing the measuring capsule heat meter
!
Use the same installation method within one property!
The display must be accessible at all times and readable without further aids.
The meter may only be installed in the original connector.
Calibration-relevant heat meter seals may neither be damaged nor removed. Other-
wise the guarantee and validity of its calibration is null and void.

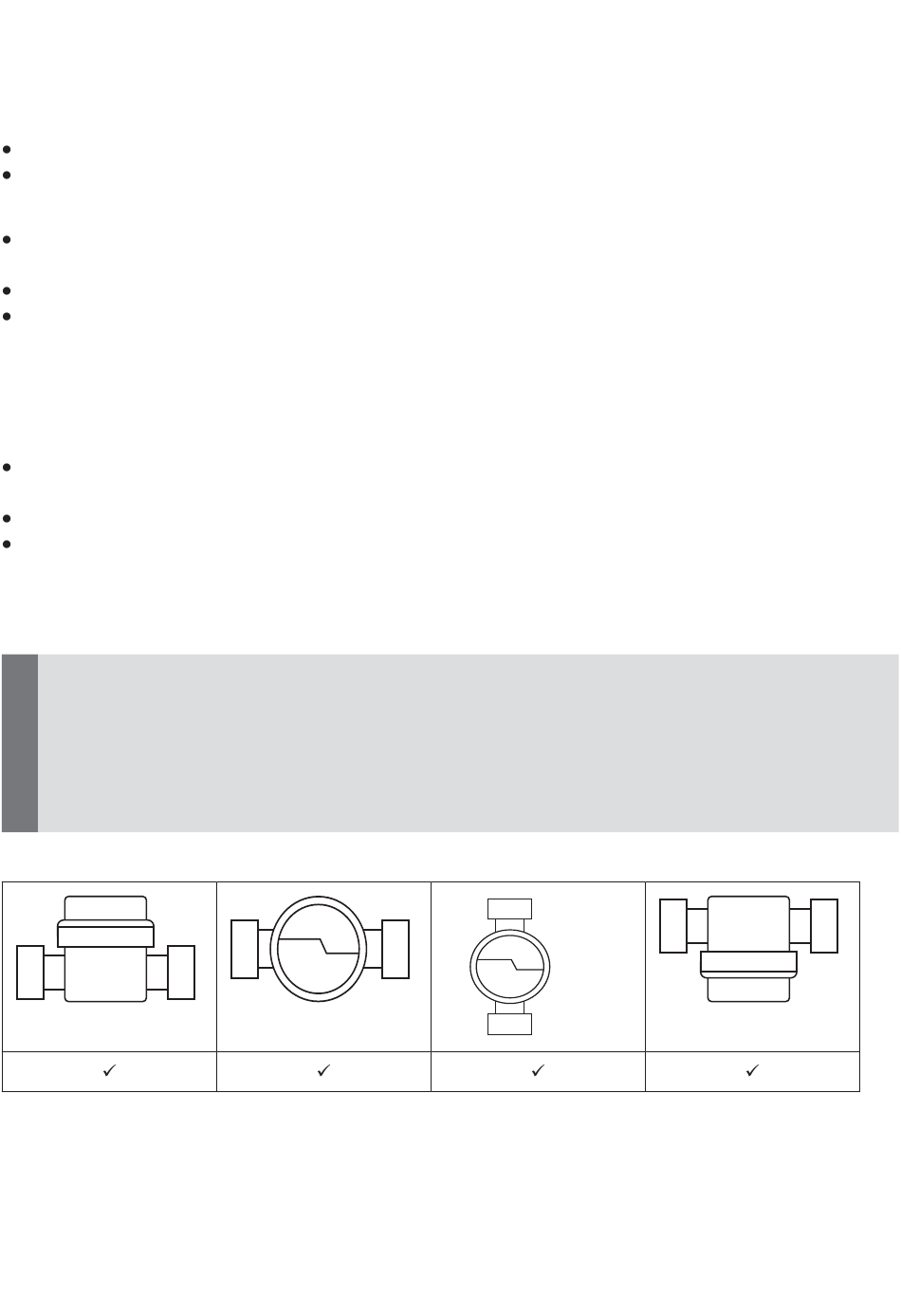

Approved installation positions
6
