Instructions and User Manual
ARF

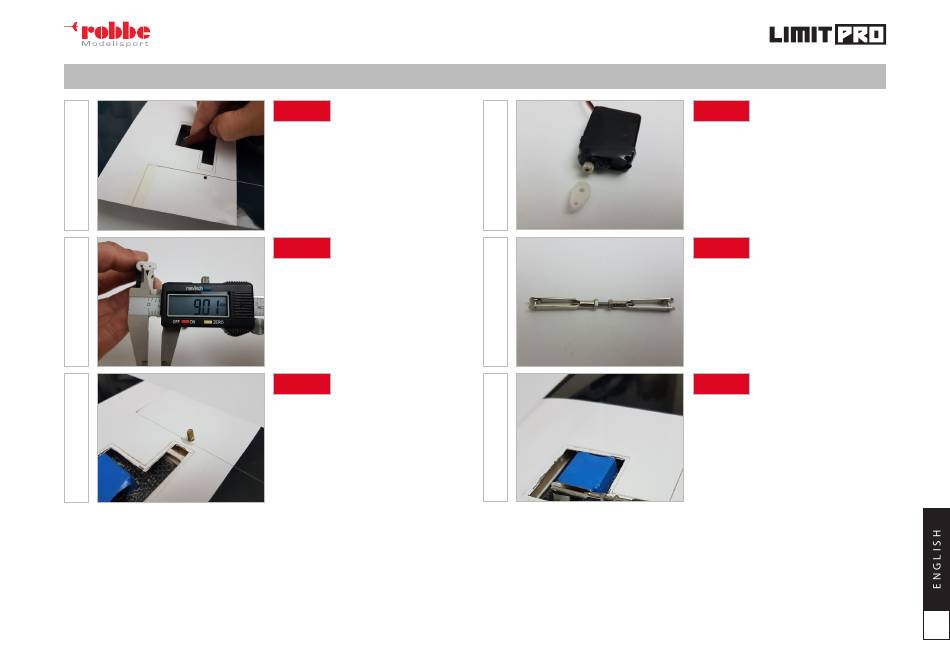

Sand the surface in the aileron servo housings with
sand paper.
ARF
Now mount the servo arms in 90 ° position on the
previously neutral servo. Drill a hole in the servo
arm at a distance of approx. 9mm from the output
to 1.6mm.
ARF
Screw the brass rudder horns with thread locking
compound into the threads in the rudders. Then
hook the linkage into the holes on the rudder and
servo levers.
W I N G
17
19
21
www.modellmarkt24.de
www.modellmarkt24.de
ARF
Remove the tabs from the servo housing. Then it
is completely shrunk and the shrink tube roughly
grinded. Plug in an extension cable and guide it
through the opening in the center of the wing.
ARF
Now make two 55mm long linkages from the M2
clevises, nuts and threaded rods.
ARF
Now glue both aileron servos with slightly
thickened epoxy resin. The exact position is now
determined by the neutral ixed rudder blade, the
90 ° servo lever and the rod length.
