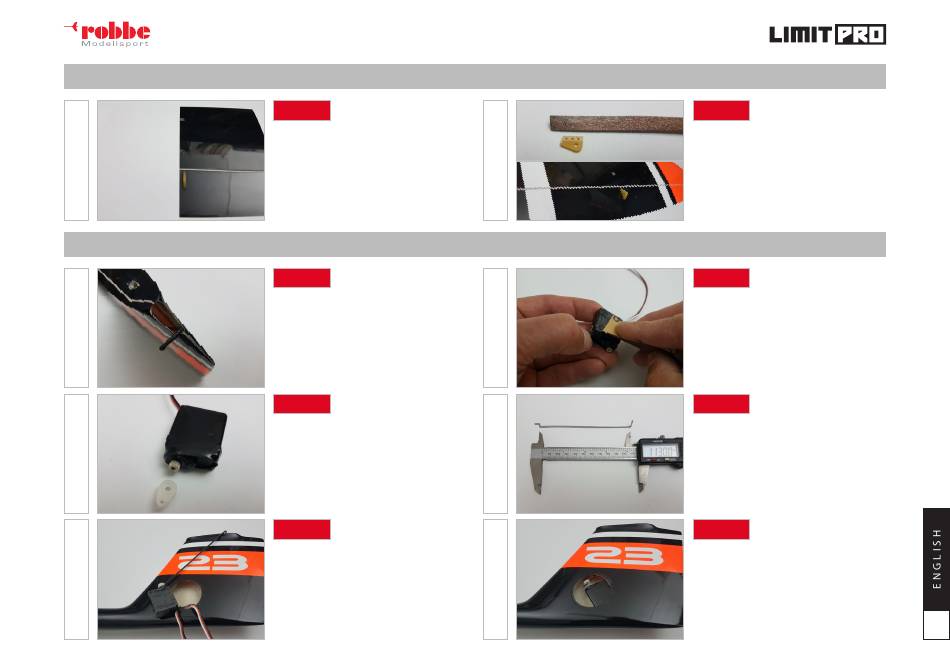

Instructions and User Manual
E L E V A T O R
ARF
Mark the center of the elevator on the bottom.
Milling a small slot 2mm eccentrically to accommo-
date the rudder horn of about 10x1.8mm, starting
about 6mm from the edge to the sealing lip in the
rudder blade. Be careful not to damage the top
side!
F U S E L A G E
ARF
First, cut the opening for the elevator linkage.
Sand the surface in the elevator servo housing with
sand paper.
ARF
Now mount a shortened servo arm with a bore dis-
tance of 5-6mm in 90 ° position on the servo. Make
sure the servo is in neutral before doing so.
ARF
Now thread the linkage suspended in the servo
into the fuselage and out through the outlet. Con-
nect the servo wire to the extension and pull it into
the front of the fuselage. Connect a 50cm
extension cable with the servo.
02
04
06
08
www.modellmarkt24.de
www.modellmarkt24.de
ARF
Grind the elevator horn on both sides and glue it
with thickened 24h epoxy resin or Uhu Endfest 300.
The bore points backwards, so you got a distance
from the bore to beginning of the elevator of
12mm!
ARF
Remove the tabs from the servo housing. Then it
is completely shrunk and the shrink tube roughly
grinded. Plug in an extension cable and lead it
forward in the fuselage.
ARF
Make a linkage with Z-bend and 90 ° angle. The
shaft distance is 113mm. Make sure that the linka-
ges are rotated 90 ° to each other!
ARF
Glue the servo with thickened 24h epoxy and ix it
roughly.
