Master-Modul
Für die Spannungsversorgung wird ein externes DC‑24‑V‑Netzteil verwendet:
•
•
Die maximal zulässige Länge der DC-24-V-Zuleitung beträgt 30 m.

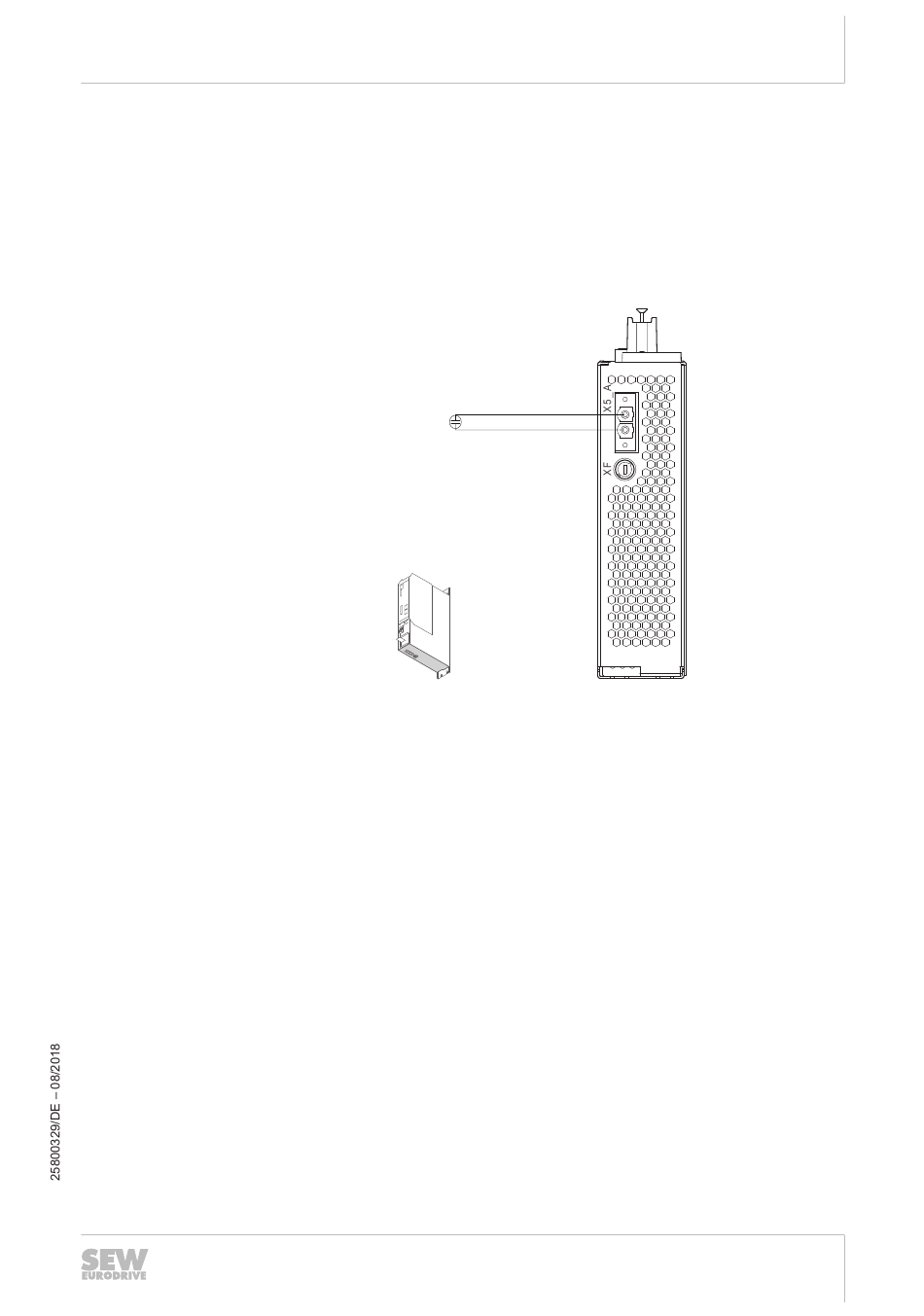

Schaltbild
Leistungsaufnahme P
= 972 W
max
Stromaufnahme I
= 40,5 A (bei Versorgungsspannung DC 24 V)
max
DC 24 V
+24 V
+
-
GND
®
Handbuch – MOVI-C
CONTROLLER advanced UHX45A
Installationshinweise
Elektrische Installation
