End charging cycle
The charging cycle is ended by releasing the vehicle and disconnecting the charging cable. Details of
this are described in the manual provided by the vehicle manufacturer.

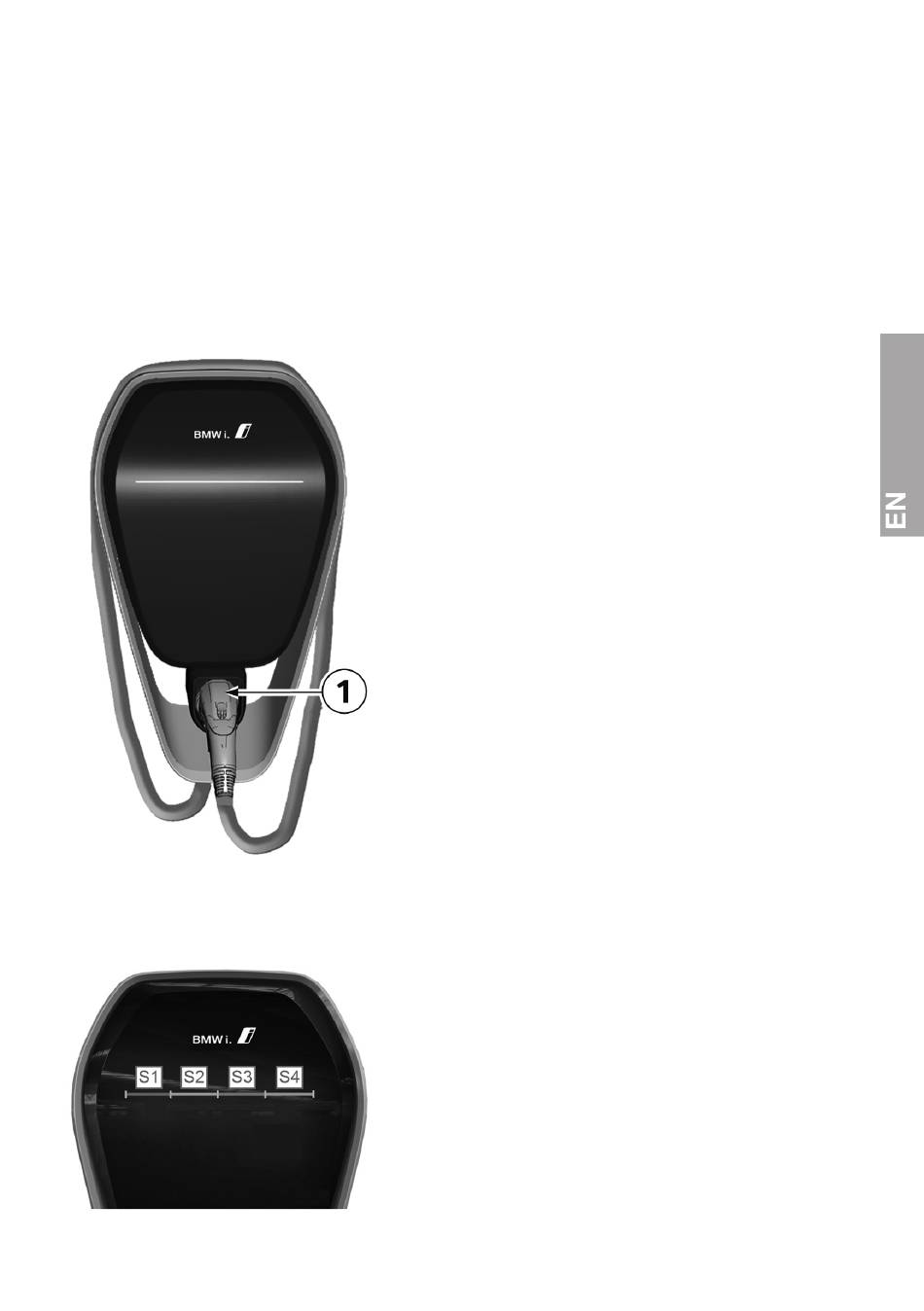

1. Disconnect the charging cable from the vehicle and coil the charging cable around the Wallbox.
Store the charging cable

Status LED information

1. Coil the charging cable around the Wallbox.
2. Place the charging cable plug in the holder for
the charging cable plug 1 for safekeeping.
Status LED segments
The status LED provides information on the
current state of the Wallbox. It consists of 4
segments, S1 to S4, which may be lit or flash in
various colours together or individually.
The status LED is only visible when the power
supply has been activated.
Unless otherwise stated, all 4 segments will be lit
together.
