Mains
230V ~1L/N/PE 50Hz
Output power
0,5 kW (0,7 HP) S1
Reference current
Extension cord (H07RN-F
Installation fuse protection
4.2 Noise emission
Acoustic pressure level
(according to EN ISO 11202):
Idling at maximum speed
LpA 75,8 dB (A)
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
As workplace conditions vary, this
information is intended to allow the
user to make a better estimation of the
hazards and risks involved only.
4.3 Content of delivery
13mm drill chuck with arbour MT2
Draw bar M10
Drilling and milling guard
Operating tools
Operating manual
Spare parts list.
4.4 Machine Description

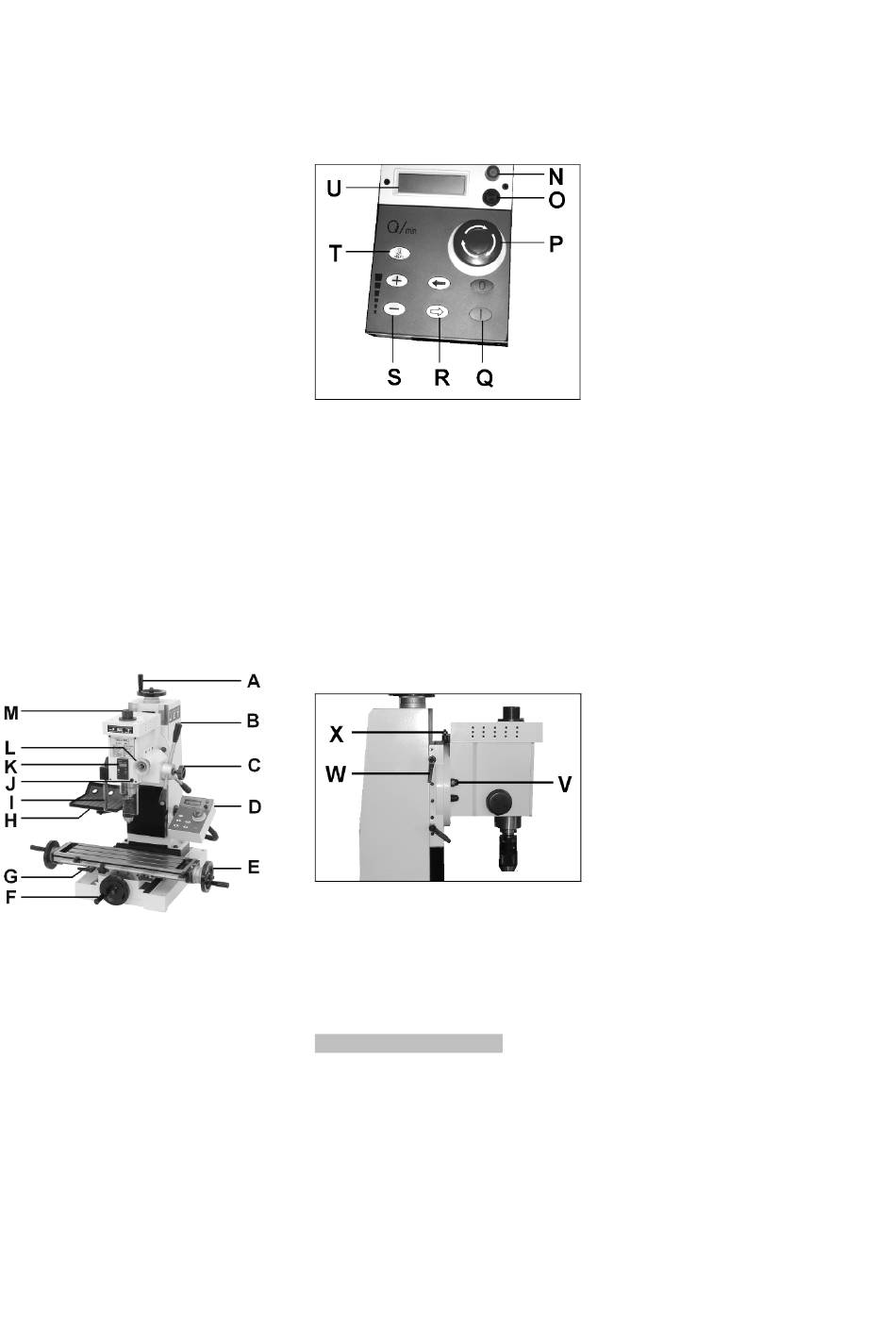

Fig 1
A......Z-axis hand-wheel
B..... Down feed handles
(with tapping control buttons
fwd-/rev.)
C.....Fine feed engagement knob
D....Control panel
E.....X-axis hand wheel
F......Y-axis hand-wheel
G......X-axis slide-lock
H.....Tool tray
I..... Chuck guard
J.....Quill lock
K.... Drill depth display
2,5 A
3x1,5mm²
L.... Fine feed hand wheel
16A
M..... Draw bar cover
N....Power indicationlamp
O....Overload fuse
P.... Emergency stop button
Q....ON/Off buttons
R....Forward/ Reverse buttons
S....Speed control buttons
T....Tapping function On/Off
U.....Spindle speed display
V.....Head lock bolts
W....Z-axis slide-lock
X.....Head 90° index pin
5. Transport and start up
5.1 Transport and installation
The machine will be delivered in a
closed crate.
For transport use a forklift or hand
trolley. Make sure the machine does
not tip or fall off during transport.
Fig 2
Fig 3
5
The machine is designed to operate in
closed rooms and must be bolted to
the cabinet stand or a solid work
bench.
Make sure the machine cannot tip!
For packing reasons the machine is
not completely assembled.
5.2 Assembly
If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with
petroleum, diesel oil or a mild solvent.
Attach the crank handles to the hand
wheels (A, E, F, Fig 1).
Mounting machine to solid
workbench.
Unbolt the lathe from the shipping
crate bottom.
Use heavy duty fibre belt for lifting the
machine off the pallet.
Caution:
The machine is heavy (127 kg)!
Assure the sufficient load capacity
and proper condition of your lifting
devices.
Never step underneath suspended
loads.
Carefully place the machine onto a
solid work bench.
Bolt together machine and workbench
Make sure the machine cannot tip!
Use a machinist's precision level to
make sure that the machine table is
level.
Loosen mounting bolts, shim and
tighten mounting bolts if needed.
The machine must be level to be
accurate.
5.3 Mains connection
Mains connection and any extension
cords used must comply with
applicable regulations.
The mains voltage must comply with
the information on the machine
licence plate.
