JDP-17FM/FT:
Spindle to column
Spindle travel
Spindle taper
Chuck size
Column diameter
Table size 365 x 365 mm
Overall height
Number of speeds
Range of speeds 170 – 3030 rpm
Net weight
Mains 230V ~1/N/PE 50Hz
Output power 0,56 kW (0,75 HP) S1
Reference current
Extension cord (H07RN-F):
Installation fuse protection
Mains 400V ~3/PE 50Hz
Output power 0,56 kW (0,75 HP) S1
Reference current
Extension cord (H07RN-F):
Installation fuse protection

4.2 Noise emission

Acoustic pressure level (EN 11202):
Idling
In operation
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
As workplace conditions vary, this
information is intended to allow the
user to make a better estimation of the
hazards and risks involved only.

4.3 Content of delivery

Head assembly
Table
Column and bracket assembly
Machine base
16mm keyless chuck
MT-2 arbor
3 downfeed handles
Table bracket lock handle
Table bracket rising handle
Drift key
Operating tools
Assembly kit
Operating manual
Spare parts list.
5. Transport and start up

5.1 Transport and installation

The machine is designed to operate in
closed rooms and must be placed
stable on firm and levelled ground.
The machine can be bolted down if
required.
For packing reasons the machine is
not completely assembled.
215mm
85mm
MT-3/B16
5.2 Assembly
If you notice transport damage while
16mm
unpacking, notify your supplier
80mm
immediately. Do not operate the
machine!
1,625mm
Dispose of the packing in an
16
environmentally friendly manner.
90 kg
Clean all rust protected surfaces with
a mild solvent.

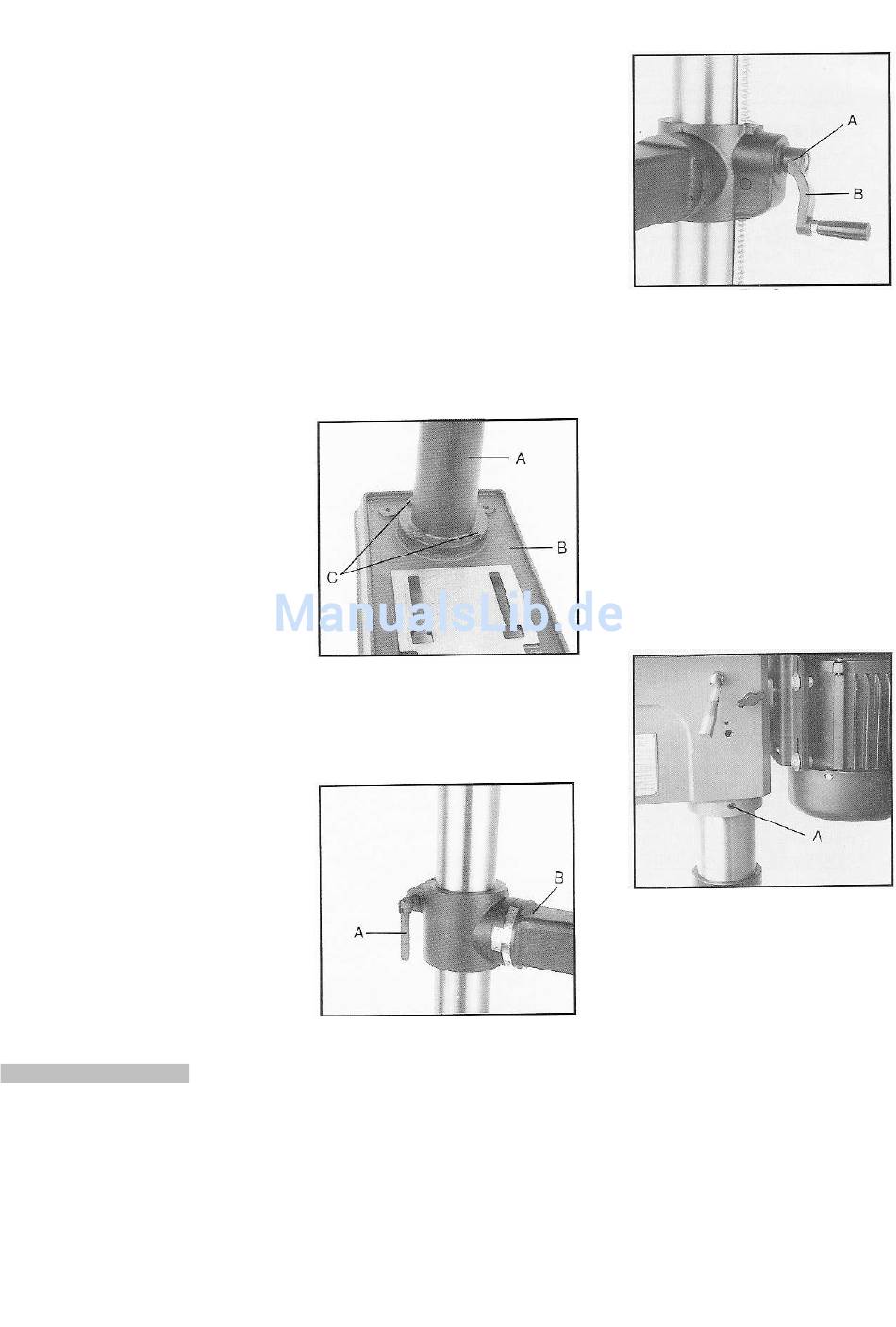

Attach the column assembly (A, Fig.
4 A
1) to the base (B, Fig. 1) with four
3x1,5²
M10 hex cap bolts (C, Fig. 1). Tighten
10A
firmly.
1.9 A
4x1,5²
10A
71,8 dB (A)
84 dB (A)
Thread the table bracket lock handle
(A, Fig. 2) into the table bracket (B,
Fig. 2).
Slide the table bracket rising handle
(B, Fig 3) onto the table bracket shaft.
Fig 1
Fig 2
5
Fig 3
Turn the handle until the set screw is
opposite the flat section on the shaft
and tighten the set screw (A, Fig 3).
Insert the table into the table bracket.
Tighten the table lock handle.
With the aid of a second person,
carefully lift the head onto the column
top.
Caution: The head assembly is
heavy! Use care when lifting onto
the column!
Rotate the head assembly until the
sides of the belt cover are parallel with
the sides of the base.
Tighten two set screws (A, Fig. 4).
Fig 4
