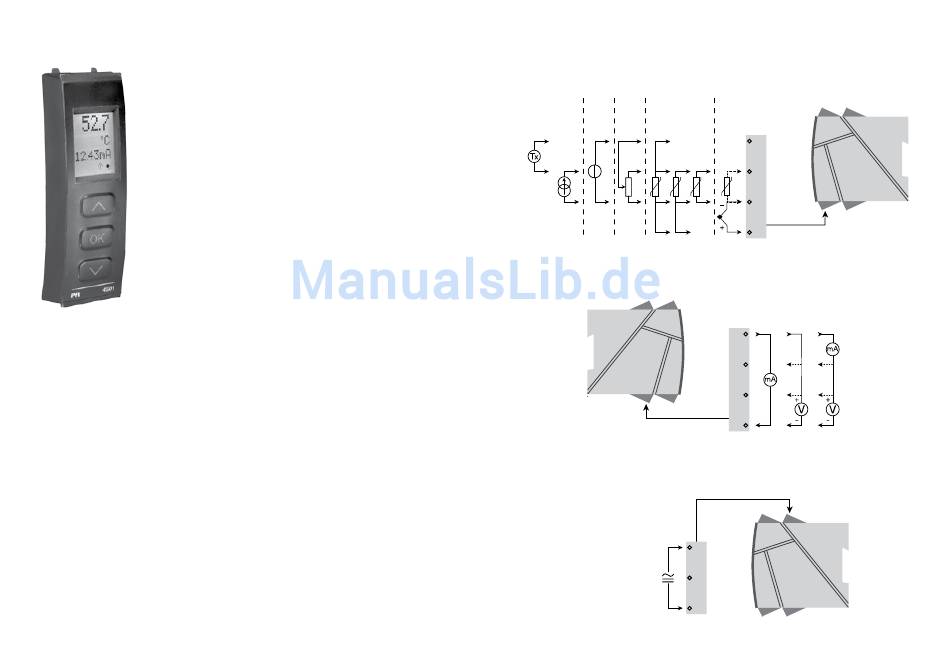

Pr 4501 disPlay / PrograMMing fronT
functionality:
The.simple.and.easily.understandable.PReasy.menu.
structure.and.the.explanatory.help.texts.guide.you.
effortless. l y.and.automatically.through.the.configuration.
steps,.thus.making.the.product.very.easy.to.use..
Functions.and.configuration.options.are.described.in.the.
section."Configuration./.
operating.the.function.keys".
application:
•. Communications.interface.for.modification.of.operational.parameters.in.4114.
•. Can.be.moved.from.one.4114.device.to.another.and.download.the.
configuration.of.the.first.transmitter.to.subsequent.transmitters..
•. Fixed.display.for.readout.of.process.data.and.status.
Technical characteristics:
•. LCD.display.with.4.lines;.Line.1.(H=5.57.mm).shows.input.signal,.line.2.
(H=3.33.mm).shows.units,.line.3.(H=3.33.mm).shows.analogue.output.or.tag.
no..and.line.4.shows.communication.status.
•. Programming.access.can.be.blocked.by.assigning.a.password..The.
password.is.saved.in.the.transmitter.in.order.to.ensure.a.high.degree.of.
protection.against.unauthorised.modifications.to.the.configuration.
Mounting / installation:
•. Click.4501.onto.the.front.of.4114.
32

aPPliCaTions

Input.signals:

Volt.
Potenti-
Current age ometer RTD.and.lin..R
Connect.,.wires
+
*
+
-
-
Order.separately:.5910.CJC.connector..
Output.signals:
See.the.connection.drawing.on.page.39.
Analogue,.0/4...20.mA.and.voltage
Supply:
33.
21.6...253.VAC.
32.
or.
19.2...300.VDC
31
TC
44.
43.
42.
41
12.
+
-
14.
+
10.V 10.V
-
1.V 1.V
13.
11
33
