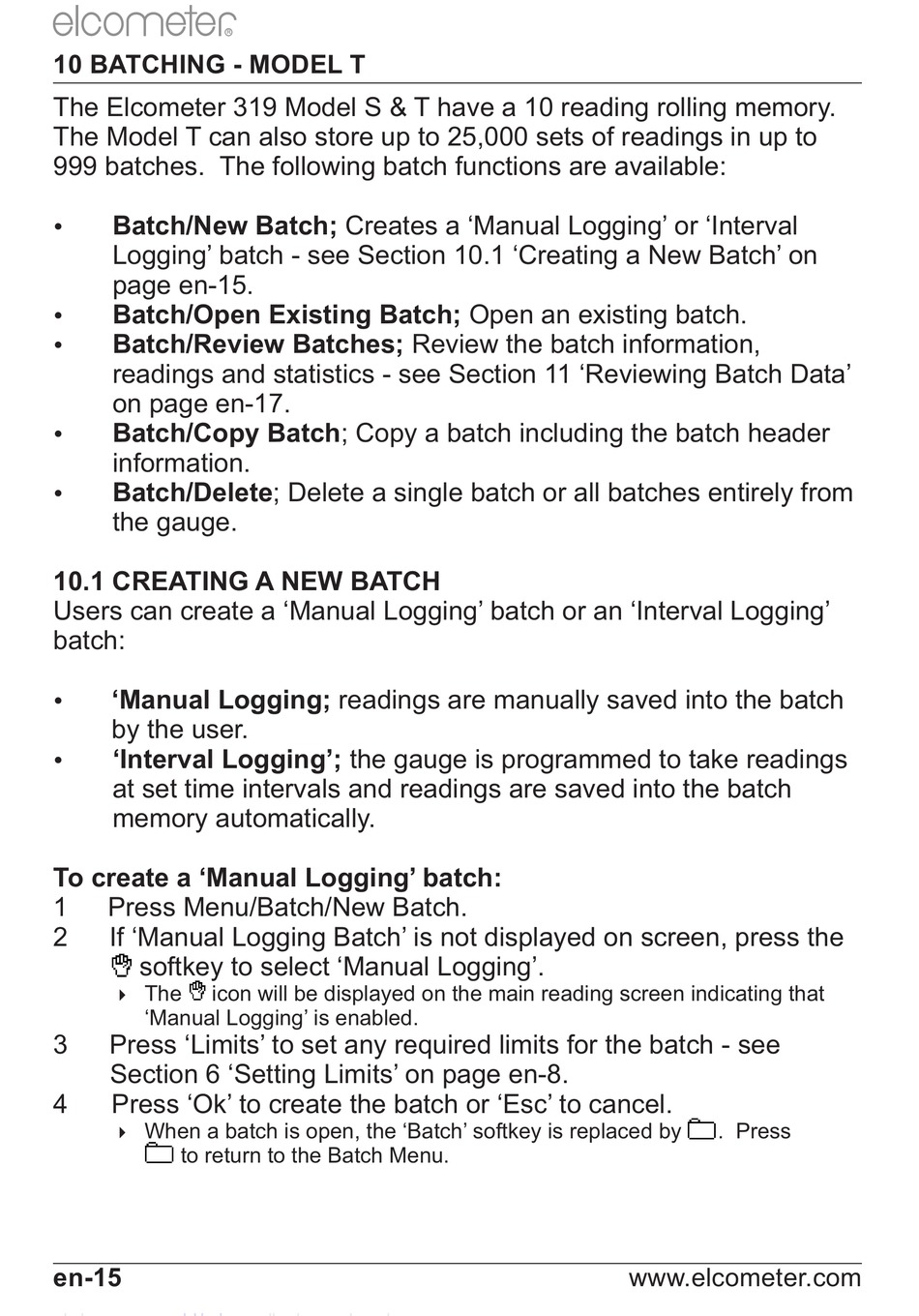

10 BATCHING - MODEL T

The Elcometer 319 Model S & T have a 10 reading rolling memory.
The Model T can also store up to 25,000 sets of readings in up to
999 batches. The following batch functions are available:
Batch/New Batch; Creates a 'Manual Logging' or 'Interval

Logging' batch - see Section 10.1 'Creating a New Batch' on
page en-15.
Batch/Open Existing Batch; Open an existing batch.

Batch/Review Batches; Review the batch information,

readings and statistics - see Section 11 'Reviewing Batch Data'
on page en-17.
Batch/Copy Batch; Copy a batch including the batch header

information.
Batch/Delete; Delete a single batch or all batches entirely from

the gauge.
10.1 CREATING A NEW BATCH
Users can create a 'Manual Logging' batch or an 'Interval Logging'
batch:
'Manual Logging; readings are manually saved into the batch

by the user.
'Interval Logging'; the gauge is programmed to take readings

at set time intervals and readings are saved into the batch
memory automatically.
To create a 'Manual Logging' batch:
1 Press Menu/Batch/New Batch.
2 If 'Manual Logging Batch' is not displayed on screen, press the
softkey to select 'Manual Logging'.
The icon will be displayed on the main reading screen indicating that

'Manual Logging' is enabled.
3 Press 'Limits' to set any required limits for the batch - see
Section 6 'Setting Limits' on page en-8.
4 Press 'Ok' to create the batch or 'Esc' to cancel.
When a batch is open, the 'Batch' softkey is replaced by

to return to the Batch Menu.
en-15
. Press
www.elcometer.com
