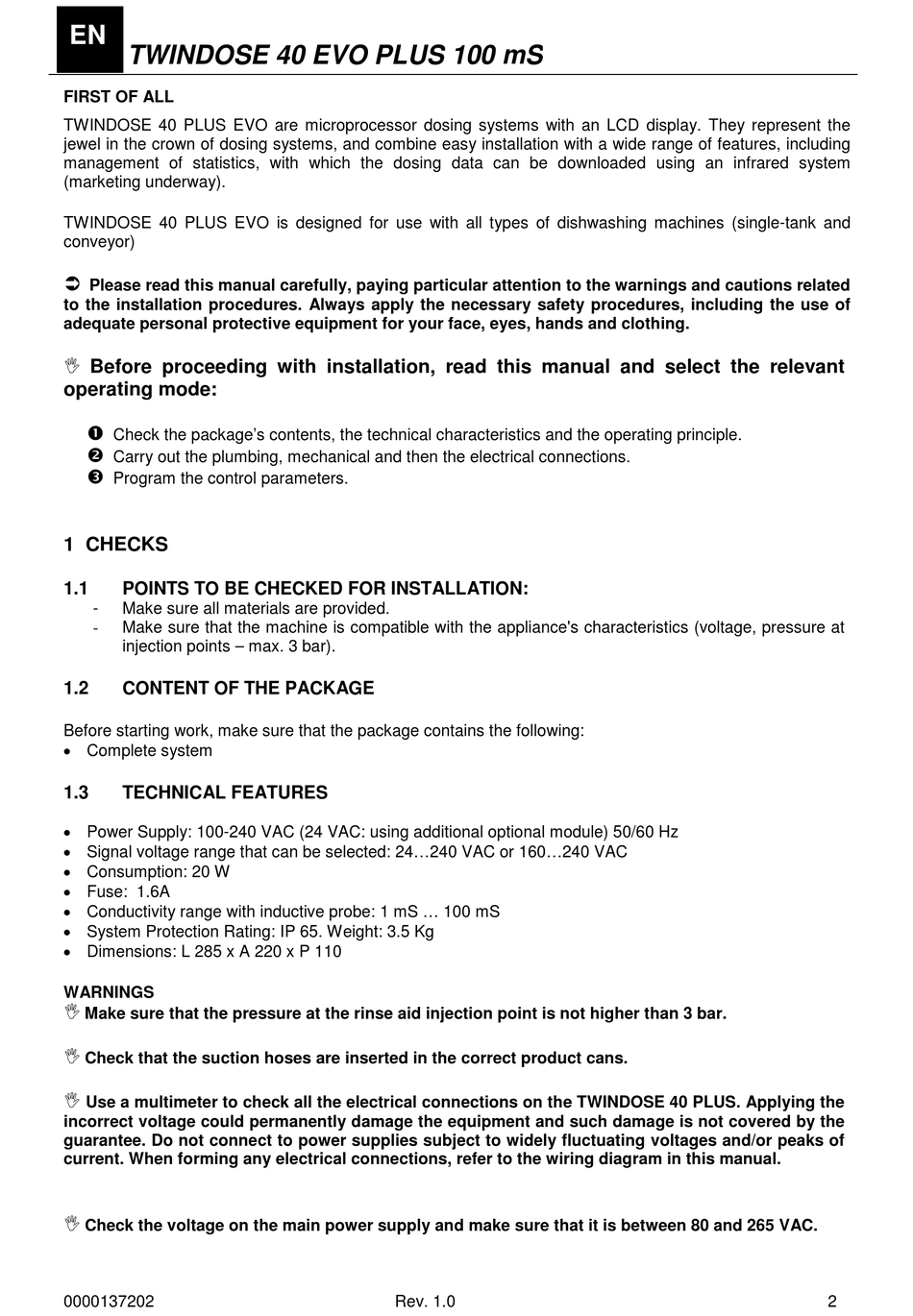

TWINDOSE 40 EVO PLUS 100 mS
FIRST OF ALL
TWINDOSE 40 PLUS EVO are microprocessor dosing systems with an LCD display. They represent the
jewel in the crown of dosing systems, and combine easy installation with a wide range of features, including
management of statistics, with which the dosing data can be downloaded using an infrared system
(marketing underway).
TWINDOSE 40 PLUS EVO is designed for use with all types of dishwashing machines (single-tank and
conveyor)
Please read this manual carefully, paying particular attention to the warnings and cautions related
to the installation procedures. Always apply the necessary safety procedures, including the use of
adequate personal protective equipment for your face, eyes, hands and clothing.
 Before proceeding with installation, read this manual and select the relevant
operating mode:
Check the package's contents, the technical characteristics and the operating principle.
Carry out the plumbing, mechanical and then the electrical connections.
Program the control parameters.
1 CHECKS
1.1
POINTS TO BE CHECKED FOR INSTALLATION:
-
Make sure all materials are provided.
-
Make sure that the machine is compatible with the appliance's characteristics (voltage, pressure at
injection points – max. 3 bar).
1.2

CONTENT OF THE PACKAGE

Before starting work, make sure that the package contains the following:
 Complete system
1.3

TECHNICAL FEATURES

 Power Supply: 100-240 VAC (24 VAC: using additional optional module) 50/60 Hz
 Signal voltage range that can be selected: 24...240 VAC or 160...240 VAC
 Consumption: 20 W
 Fuse: 1.6A
 Conductivity range with inductive probe: 1 mS ... 100 mS
 System Protection Rating: IP 65. Weight: 3.5 Kg
 Dimensions: L 285 x A 220 x P 110
WARNINGS
Make sure that the pressure at the rinse aid injection point is not higher than 3 bar.
Check that the suction hoses are inserted in the correct product cans.
Use a multimeter to check all the electrical connections on the TWINDOSE 40 PLUS. Applying the
incorrect voltage could permanently damage the equipment and such damage is not covered by the
guarantee. Do not connect to power supplies subject to widely fluctuating voltages and/or peaks of
current. When forming any electrical connections, refer to the wiring diagram in this manual.
Check the voltage on the main power supply and make sure that it is between 80 and 265 VAC.
0000137202
Rev. 1.0
2
