Fitting options

Mounting on the
Mounting Type 7 kW on the wall
wall
Mounting Type 14 kW on the wall
Important! Observe minimum clearances for ventilation purposes. Ensure an adequate
Minimum clea-
supply of fresh air. To ensure an adequate supply of fresh air, leave a minimum gap of
rances
100 mm to the left and right of the cooling vents.
min. 100mm (3,94 inch) min. 150mm (5,91 inch)
min. 150mm (5,91 inch)
min. 100mm (3,94 inch)
557 mm
(21.93 in.)

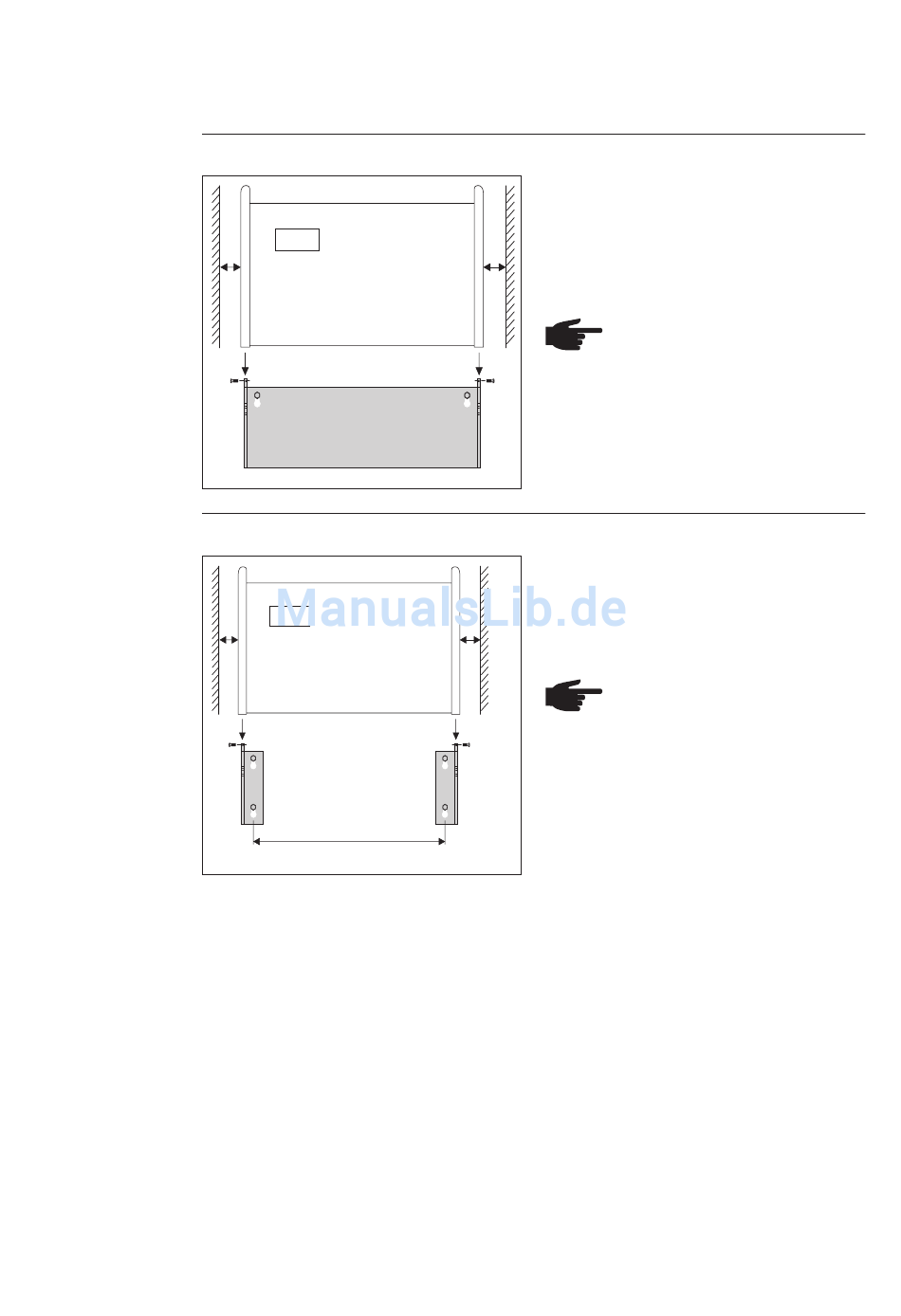

Fit the charger to the wall using the optio-
nal wall bracket:
1. Drill two holes in the wall, insert
suitable dowels and mount wall
bracket using 2 M6 x 80 mm hexagon
screws
NOTE! If fixing to the wall, please
note the weight of the charger.
Only fix to a wall that is suitable
to this purpose.
2. Place charger on the wall bracket and
secure using the Torx screws included
with the charger.
Mount the charger on the wall using the
optional fitting panels:
1. Drill holes in the wall, insert suitable
dowels and mount using 2 M6 x 80
mm hexagon screws for each panel
NOTE! If fixing to the wall, please
note the weight of the charger.
Only fix to a wall that is suitable
to this purpose.
2. Place charger on fitting panels and
secure using the Torx screws included
with the charger.
