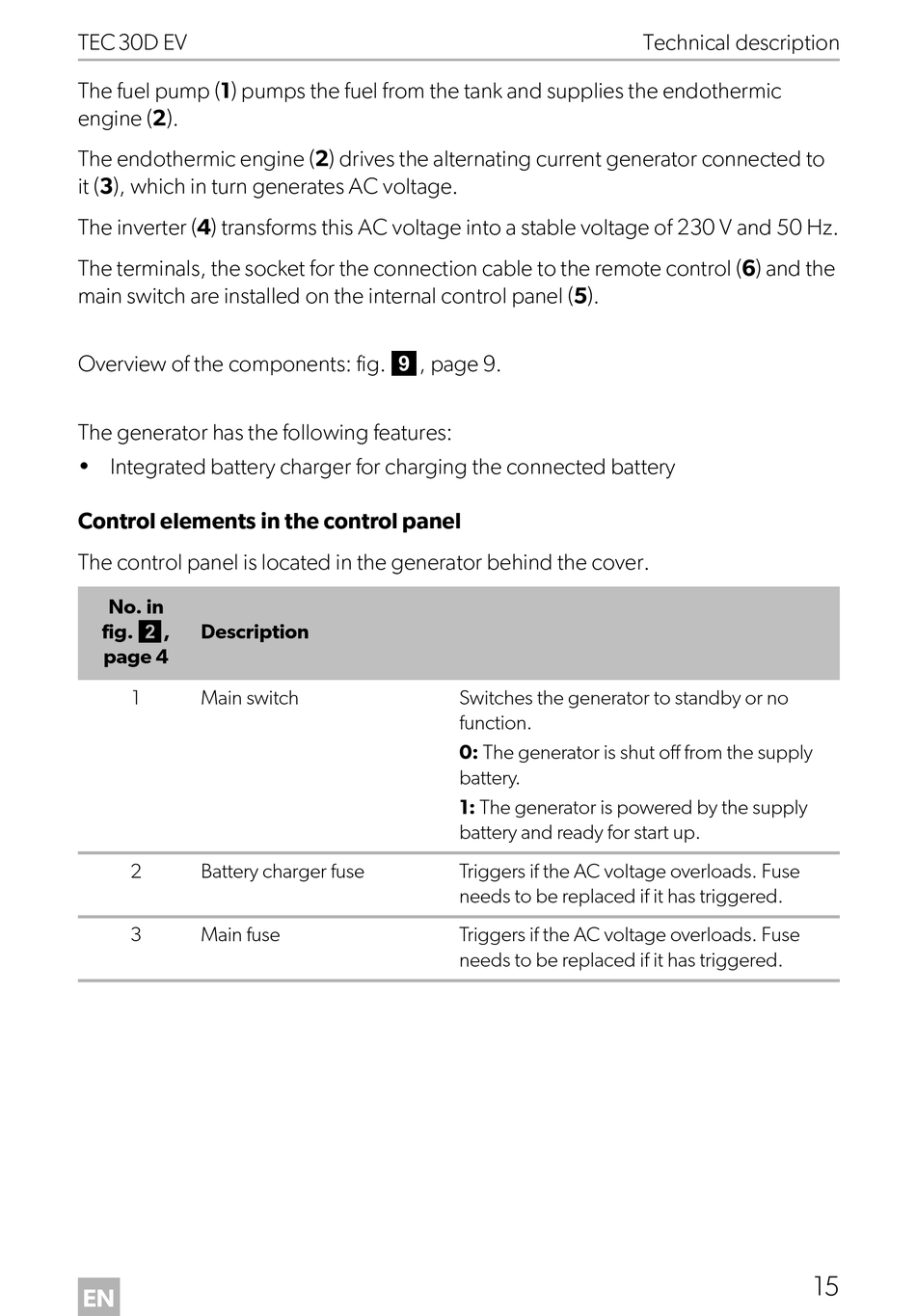

TEC30D EV
The fuel pump (1) pumps the fuel from the tank and supplies the endothermic
engine (2).
The endothermic engine (2) drives the alternating current generator connected to
it (3), which in turn generates AC voltage.
The inverter (4) transforms this AC voltage into a stable voltage of 230 V and 50 Hz.
The terminals, the socket for the connection cable to the remote control (6) and the
main switch are installed on the internal control panel (5).
Overview of the components: fig. 9, page 9.
The generator has the following features:
• Integrated battery charger for charging the connected battery
Control elements in the control panel
The control panel is located in the generator behind the cover.
No. in
fig. 2,
Description
page 4
1 Main switch
2 Battery charger fuse
3 Main fuse
EN
Switches the generator to standby or no
function.
0: The generator is shut off from the supply
battery.
1: The generator is powered by the supply
battery and ready for start up.
Triggers if the AC voltage overloads. Fuse
needs to be replaced if it has triggered.
Triggers if the AC voltage overloads. Fuse
needs to be replaced if it has triggered.
Technical description
