SG2 BASE

13 ABMESSUNGEN

MODELE 30mm
SG2-30-015-OO-X
SG2-30-030-OO-X
SG2-30-045-OO-X
SG2-30-060-OO-X
SG2-30-075-OO-X
SG2-30-090-OO-X
SG2-30-105-OO-X
SG2-30-120-OO-X
SG2-30-135-OO-X
SG2-30-150-OO-X
SG2-30-165-OO-X
SG2-30-180-OO-X

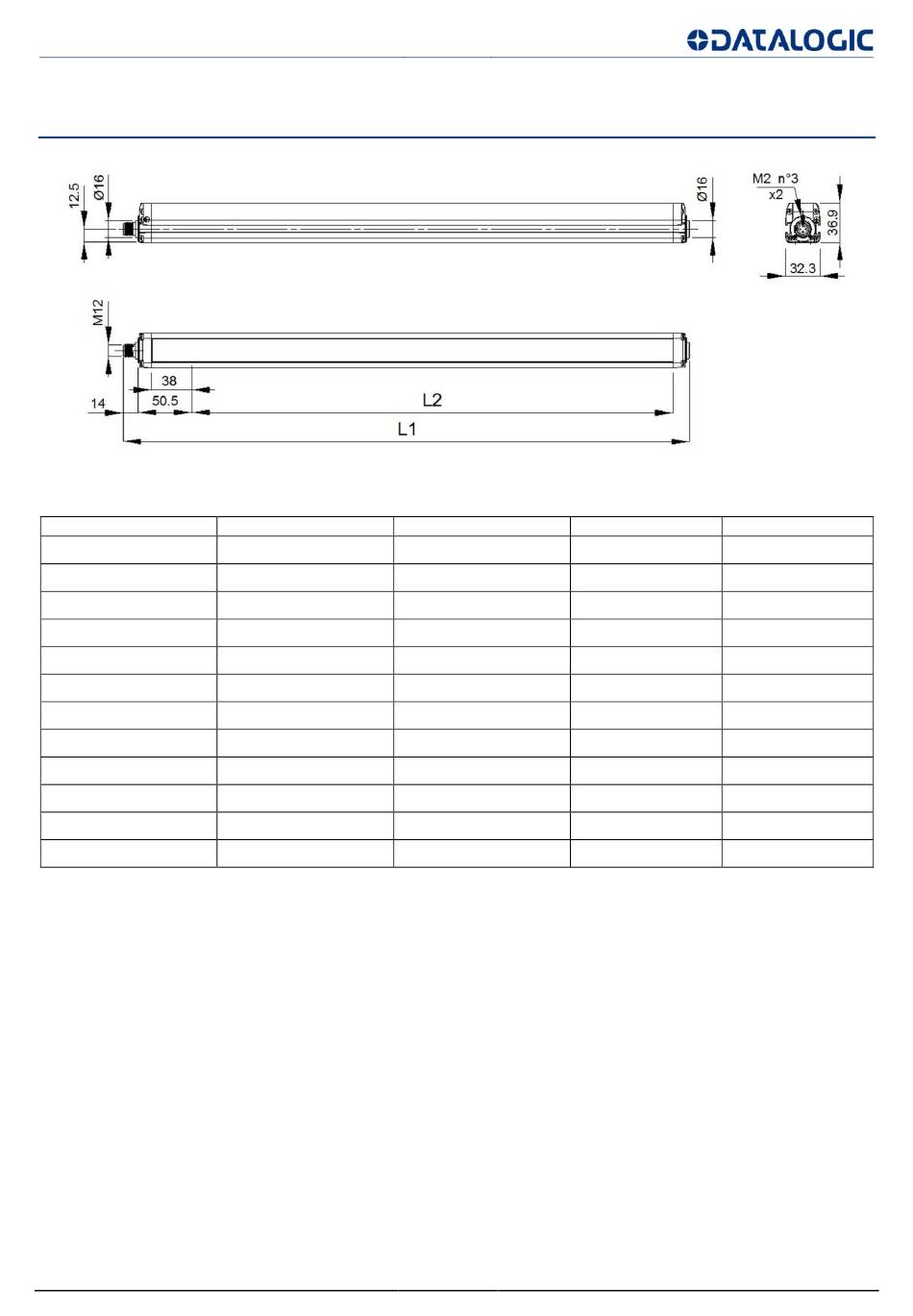

Fig 33 - Abmessungen (mm)
MODELE 50mm
-
SG2-50-030-OO-X
SG2-50-045-OO-X
SG2-50-060-OO-X
SG2-50-075-OO-X
SG2-50-090-OO-X
SG2-50-105-OO-X
SG2-50-120-OO-X
SG2-50-135-OO-X
SG2-50-150-OO-X
SG2-50-165-OO-X
SG2-50-180-OO-X
MODELE 90mm
-
SG2-90-030-OO-X
SG2-90-045-OO-X
SG2-90-060-OO-X
SG2-90-075-OO-X
SG2-90-090-OO-X
SG2-90-105-OO-X
SG2-90-120-OO-X
SG2-90-135-OO-X
SG2-90-150-OO-X
SG2-90-165-OO-X
SG2-90-180-OO-X
46/69
L1 (mm) L2 (mm)
233.3 153.3
383.2 303.2
533.2 453.3
683.2 603.2
833.2 753.3
983.2 903.2
1133.2 1053.2
1283.3 1203.3
1433.2 1353.2
1583.3 1503.3
1733.3 1653.3
1883.3 1803.3
