Channel 3 - Colours; Channel 4- Gobos; Channel 5 - Rotation - Futurelight Vojager Gebrauchsanweisung

Channel 3 - Colours

IV. Channel 4- Gobos
V. Channel - Rotation

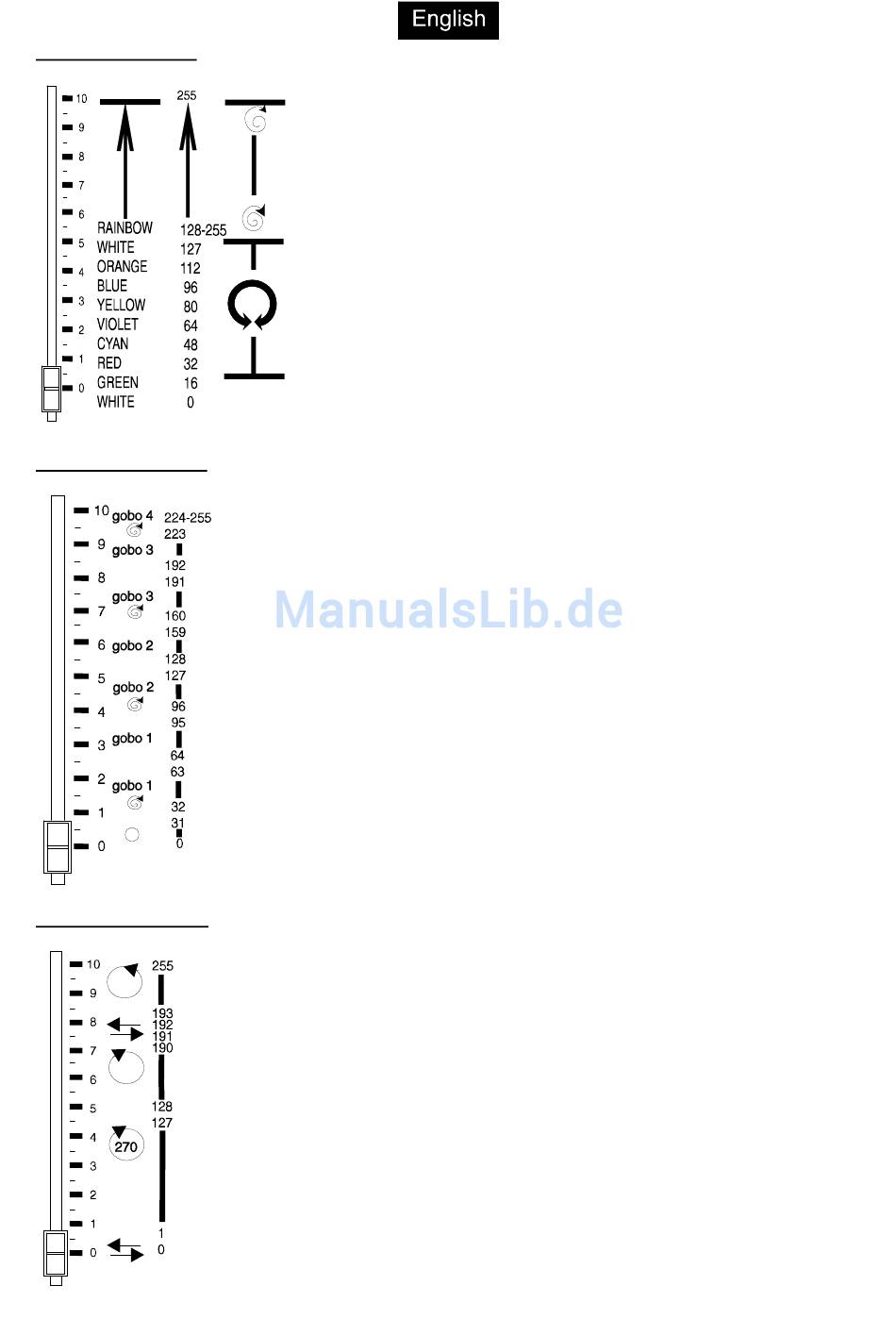

Linear colour change following the movement of the slider. In
this way you can stop the colour wheel in any position - also
between two colours creating double-coloured beams.
Between 5 and 10 (50 to 100% or 128 to 255) the colour wheel
rotates continuously - the so-called "Rainbow" effect.
Rotation starts slowly and increases gradually to maximum
speed as the slider reaches position 10 (100% or 255).
0-31 Full circle
32-63 Gobo 1 rotating
64-95 Gobo 1 static
96-127 Gobo 2 rotating
128-159 Gobo 2 static
160-191 Gobo 3 rotating
192-223 Gobo 3 static
224-255 Gobo 4 rotating
0 Static
1-127 Rotation to 270°
128-190 Clockwise rotation with decreasing speed
(128 = Vmax)
191-192 Static
193-255 Anticlockwise rotation with increasing speed
(255 = Vmax)
18
