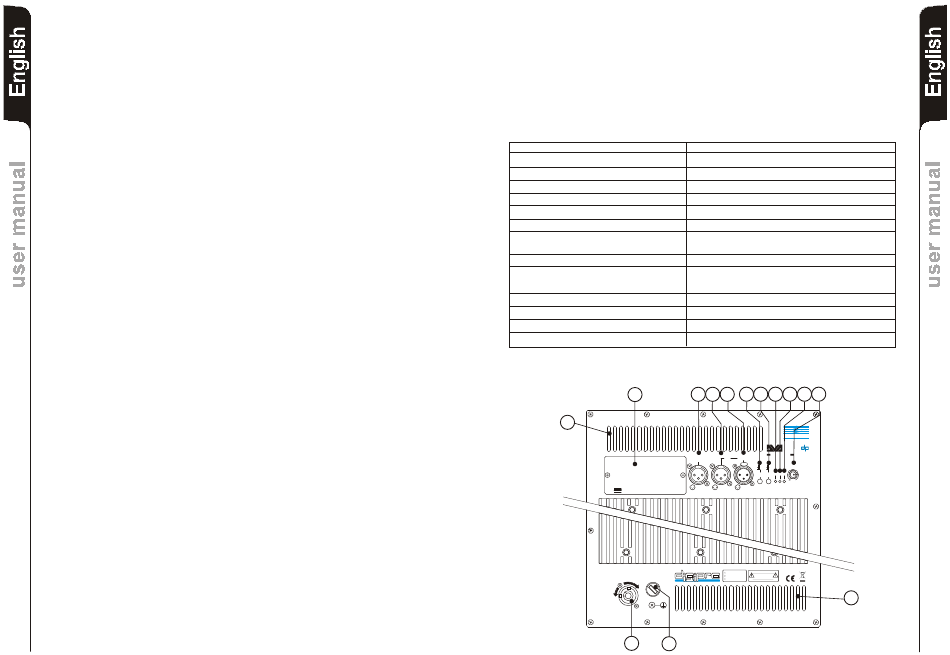

CONTROLS AND FUNCTIONS
1)
"MAINS FUSE" FUSE CARRIER
Mains fuse housing.
2)
"FULL RANGE MAINS INPUT" POWER SOCKET
For connecting the power cable provided.
The connector used for mains connection is a POWER CON® (blue)
3)
COOLING GRILLE
These grilles permit cooling the amplifier during operation.
Do not block accesses and clean the grilles whenever necessary to ensure correct
air circulation.
4)
" BALANCED MAIN INPUT" INPUT CONNECTOR
Balanced input at line level (0 dBu).
It is able to accept "XLR" sockets.
5)
"LINK" OUTPUT CONNECTOR
The "XLR" connector connected in parallel with input (4) can be used to send the
input audio signal to another amplified speaker.
6)
"BALANCED X-OVER OUTPUT" OUTPUT CONNECTOR
Internal crossover balanced output. The signal from this output can be sent to any
other amplified speaker.
The crossover frequency can be selected by means of the "SUB X-OVER" switch
(7).
7)
"SUB X -OVER " SWITCH
This switch permits selection of crossover frequency between the sub woofer and
the speakers connected to the "BALANCED X-OVER OUTPUT" connector.
The crossing frequency is selected to 90Hz or 120Hz with a slope of 24dB/oct.
The frequency choice depends to the sound reproduction desire.
8)
"SUB PHASE " SWITCH
This switch permits 180° rotation of the audio signal reproduced by subwoofer.
Rotation makes for easier optimization of low-frequency reproduction even in the
most difficult installation situations. After completing installation, reproduce a piece
of music and adjust the switch to obtain the best low-frequency sound.
9)
"ON" INDICATOR LIGHT
The "ON" indicator light comes on green to indicate the amplifier is switched on and it
is working properly.
10)
"SGN" INDICATOR LIGHT
This indicator comes on green to indicate the presence of the audio signal (at a level
of -20dB).
11)
"LIM" INDICATOR LIGHT
This indicator comes on red to indicate that the internal limiter circuit has tripped.
This prevents amplifier distortion and protects the speakers against overloads.
It is lights for a few seconds during the switching on.
12)
"SUB WOOFER LEVEL" INPUT SENSITIVITY CONTROL
This control regulates the sensitivity of the signal at amplifier input.
This control does not affect the "LINK" and "BALANCED X-OVER OUTPUT" output
levels
13)
DIGITAL DELAY "SDD - SUBWOOFER DIGITAL DELAY" OPTION
The DVA
S20dp
loudspeaker can be equipped with a delay module (SDD -
SUBWOOFER DIGITAL DELAY) that allows to delay the sound signal reproduced
by the subwoofer.
This circuit allows sound-alignment between line array and sub
by balancing the various positions.
The circuit also includes a balanced "XLR" output that sends the delayed audio
signal to other subwoofers. By using a single delay module it is possible to delay
several subwoofers at the same time.
This module can also be used to create cardioid configuration systems. The cardioid
configuration provides a remarkable attenuation of the low frequencies radiated by
3
the rear side of the subs, without changing the direct radiated signal on the front
side.
This configuration needs at least 3 subwoofers (two with front radiation and one with
rear radiation equipped with SDD module). See appendix for more details.
EMI CLASSIFICATION
According to the standards EN 55103 this equipment is designed and suitable to operate in
E5 Electromagnetic environment.
TECHNICAL SPECIFICATION
System
Type of amplifier
RMS power
Musical power
Frequency responce +/-3dB
Crossover
Sound pressure (SPL)
Woofer
Input sensitivity nominal
Impedance input
Balanced
Unbalanced
Power supply
Speaker shape
Dimension [WxHxD]
Weight
13
3
S S
D D
D D
SUBWOOFER DIGITAL DELAY
OPTIONAL CARD
B
d
TECHNOLOGIES
TECHNOLOGIES
FULL RANGE MAINS INPUT
100-240V~ 50-60Hz
2500W MAX
MAINS FUSE
220-240V~ (T10A 250V)
100-120V~ (T20A 250V)
ACTIVE P.F.C.
2
1
Active
®
Digital - Class D (DIGIPRO )
2000 W (1000 W + 1000 W)
4000 W
25-150Hz
90 - 120Hz (24dB/oct) selecting
138dB peak
2 x woofer 18"- 4" voice coil
Neodymium or Ceramic
0 dBu
20Kohm
10Kohm
Full-range with PFC, 100-240Vac, 50-60Hz
rectangular
1100x720x580mm
Neodymium 77Kg - Ceramic 84Kg
6
5
4
7
8
9
10
11
12
B B
d d
TECHNOLOGIES
TECHNOLOGIES
2 2 S S 0 0
NEODYMIUM
CERAMIC
BALANCED
BALANCED
X-OVER
LINK
MAIN INPUT
OUTPUT
PUSH
SUB-WOOFER
120Hz
0°
LEVEL
90Hz
180°
+10
SUB
SUB
ON SGN LIM
+4
XOVER
PHASE
0dB
