MECHANICAL AND ACOUSTIC CHARACTERISTICS

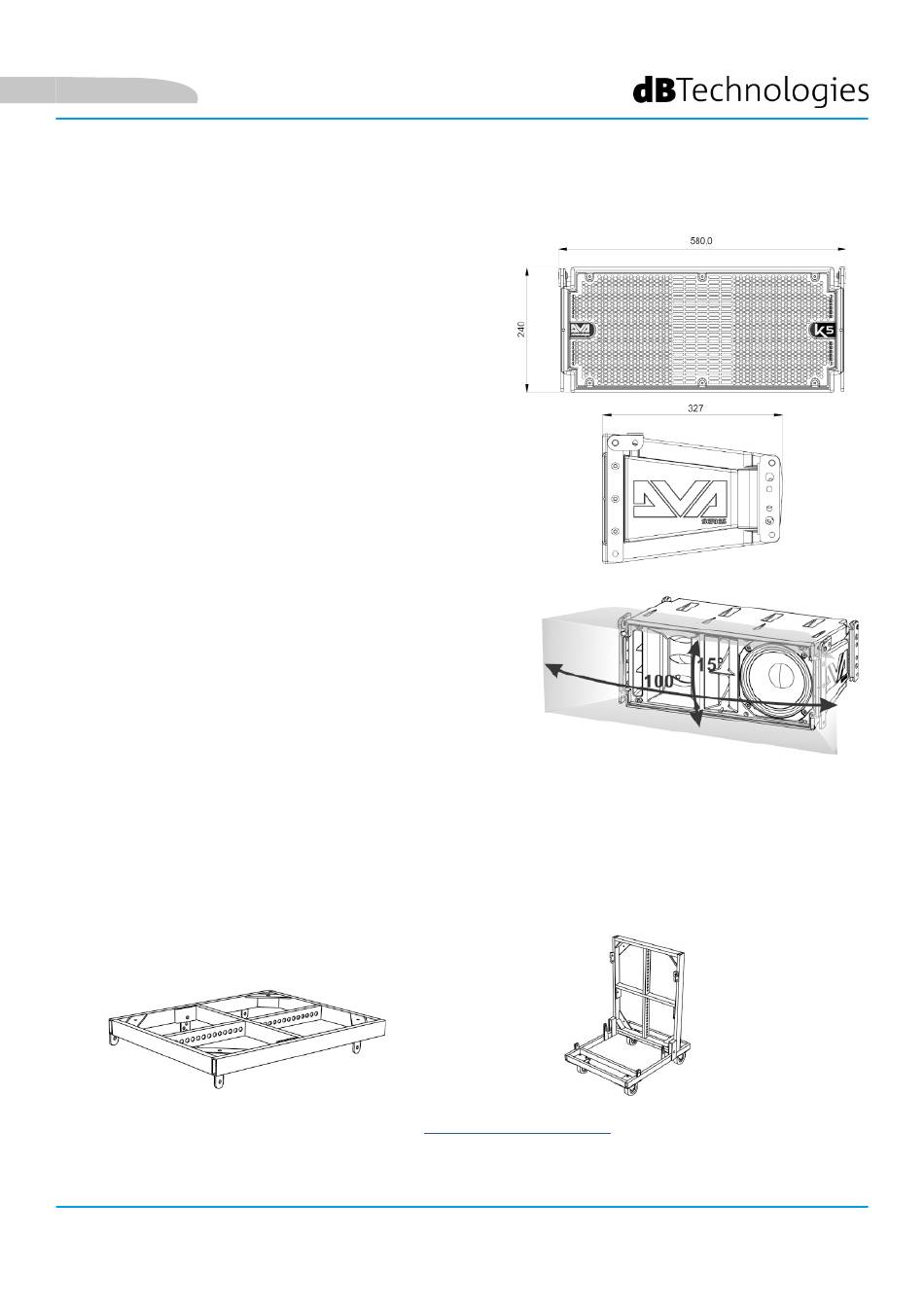

DIMENSIONS

DVA K5 only weighs 14.7 kg (32,41 lbs), and thanks to its small
dimensions - 580 x 240 x 327 mm - it can be handled and
transported easily.
The reinforced polypropylene cabinet has a metal inner frame,
preventing unwanted resonances and vibrations. The built-in
brackets and the standard pins are ready to use and allow to
quickly install, in the proper arrangement, a line-array having
the desired characteristics.

ACOUSTIC COVERAGE

The acoustic coverage, for reference purposes, of a single
module, as shown in the figure, is of 100 x 15°. The actual
coverage depends on the use of multiple modules in a line-
array arrangement. We recommend that you design it with
the help of the free software dBTechnologies Composer.

ACCESSORIES

The following items are available as optional, for system
installation, transport and protection:
• DRK-10 and DRK-20 fly-bars
• DRK-HK hook, to be used in conjunction with DRK-20
• DRK-20M motor-driven fly-bar
• SRK-10 installation kit (for installation with DVA KS10
subwoofer only)
• Bracket DWB-3 for wall installation and DSA-4 for floor
or pedestal support installation.
• Trolley allowing to transport 1 to 6 DT-6 modules
• Flight case containing 1 to 4 DF-4 modules
• Built-in flight case with trolley, housing and allowing to transport up to 4 DTF-4 modules
• Lifting equipment for hanging speakers DRL-45
• Extension cables DCK-15, DPC-15, DAC 15, DPC-1000M, cable kit DCK-15, DCK-45 and DCK-45 TypeB
The figure below shows a sample DRK-10 fly-bar and the fly-bar in
question installed on a DT-6 trolley, for transport purposes only.
For any further information, please refer to the site
each individual accessory.
DVA K5
www.dbtechnologies.com
English
and to the relevant manuals of
Code 420120232 REV.1.1
