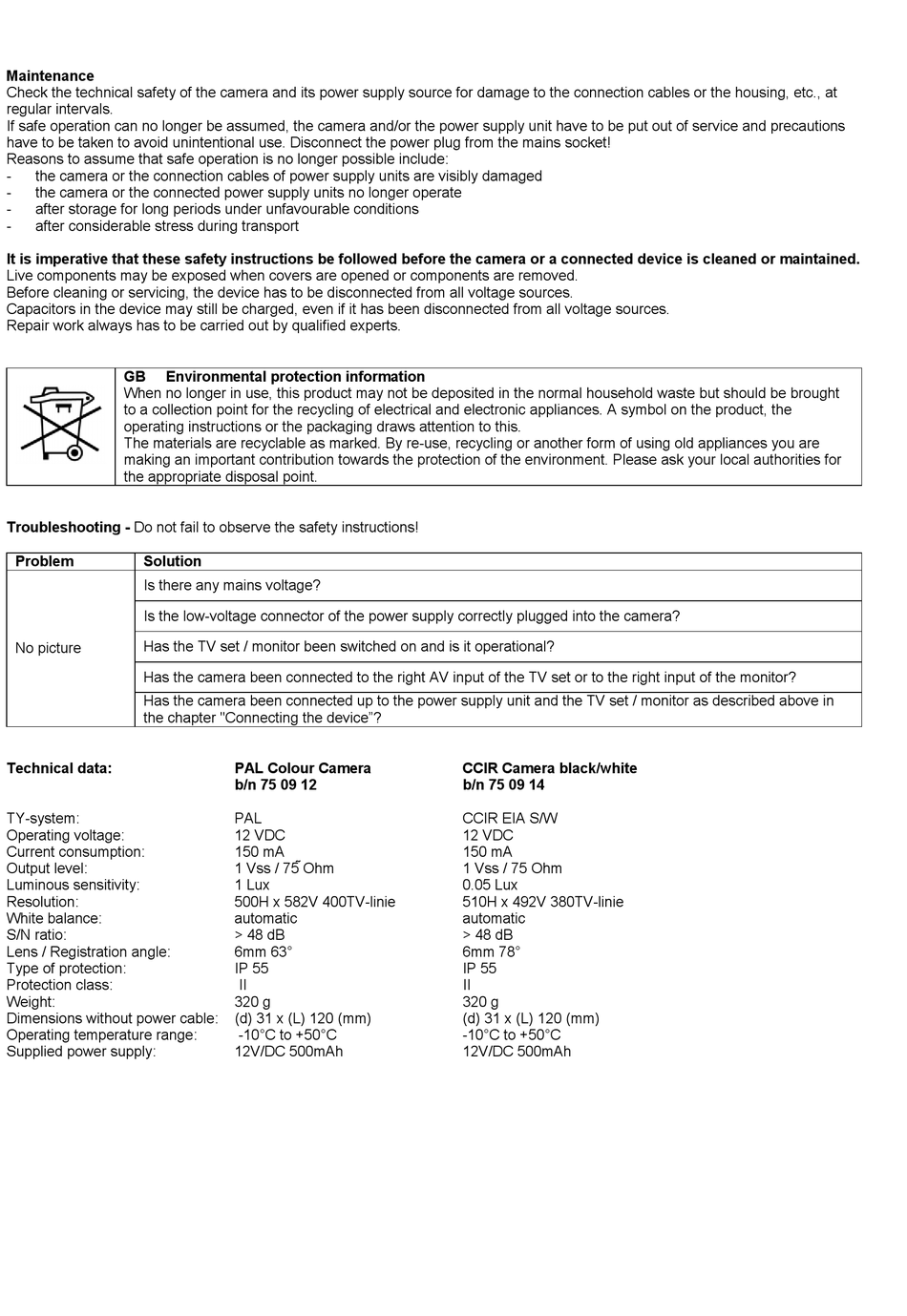

Maintenance
Check the technical safety of the camera and its power supply source for damage to the connection cables or the housing, etc., at
regular intervals.
If safe operation can no longer be assumed, the camera and/or the power supply unit have to be put out of service and precautions
have to be taken to avoid unintentional use. Disconnect the power plug from the mains socket!
Reasons to assume that safe operation is no longer possible include:
-
the camera or the connection cables of power supply units are visibly damaged
-
the camera or the connected power supply units no longer operate
-
after storage for long periods under unfavourable conditions
-
after considerable stress during transport
It is imperative that these safety instructions be followed before the camera or a connected device is cleaned or maintained.
Live components may be exposed when covers are opened or components are removed.
Before cleaning or servicing, the device has to be disconnected from all voltage sources.
Capacitors in the device may still be charged, even if it has been disconnected from all voltage sources.
Repair work always has to be carried out by qualified experts.
GB

Environmental protection information

When no longer in use, this product may not be deposited in the normal household waste but should be brought
to a collection point for the recycling of electrical and electronic appliances. A symbol on the product, the
operating instructions or the packaging draws attention to this.
The materials are recyclable as marked. By re-use, recycling or another form of using old appliances you are
making an important contribution towards the protection of the environment. Please ask your local authorities for
the appropriate disposal point.
Troubleshooting - Do not fail to observe the safety instructions!
Problem
Solution
Is there any mains voltage?
Is the low-voltage connector of the power supply correctly plugged into the camera?
Has the TV set / monitor been switched on and is it operational?
No picture
Has the camera been connected to the right AV input of the TV set or to the right input of the monitor?
Has the camera been connected up to the power supply unit and the TV set / monitor as described above in
the chapter "Connecting the device"?
Technical data:
TY-system:
Operating voltage:
Current consumption:
Output level:
Luminous sensitivity:
Resolution:
White balance:
S/N ratio:
Lens / Registration angle:
Type of protection:
Protection class:
Weight:
Dimensions without power cable:
Operating temperature range:
Supplied power supply:
PAL Colour Camera
b/n 75 09 12
PAL
12 VDC
150 mA
1 Vss / 75  O hm
1 Lux
500H x 582V 400TV-linie
automatic
> 48 dB
6mm 63°
IP 55
II
320 g
(d) 31 x (L) 120 (mm)
-10°C to +50°C
12V/DC 500mAh
CCIR Camera black/white
b/n 75 09 14
CCIR EIA S/W
12 VDC
150 mA
1 Vss / 75 Ohm
0.05 Lux
510H x 492V 380TV-linie
automatic
> 48 dB
6mm 78°
IP 55
II
320 g
(d) 31 x (L) 120 (mm)
-10°C to +50°C
12V/DC 500mAh
