MODELS AND CHARACTERISTICS

900CT-24M The control unit is equipped with: a system to prevent deformation - encoder sensi-
tivity regulation - motor deceleration - motor brake - magnetic limit switch sensors - phototest (can
be bypassed)
TECHNICAL DATA
POWER SUPPLY
MAX. MOTOR LOAD
ACCESSORIES POWER SUPPLY OUTPUT 24Vac 400mA
BATTERY TYPE (NOT SUPPLIED)
BATTERY AUTONOMY
OPERATING TEMPERATURE
14
15
16
DESCRIPTION
CN1 Terminal board for 24V connections. ( Motor – Blinkers – On light )
1
CN2 Encoder connector
2
CN3 Terminal board for output connections ( Controls and Safety Devices )
3
Led Inlet safety light: Light on = inlet closed
4
S1 P/P (Pass/Pass) Button
5
DL1 Programming light
6
S2 PROG button for programming
7
S3 Dip-switch setting functions
8
Control Unit Reset. Short circuiting the 2 pins for a moment is the same as rebooting the power supply
9
T1 Trimmer to regulate encoder sensitivity to deformation
10
CN4 Connector for snap-in receiver radio circuit board ( optional )
11
CN5 Antenna connector
12
JP1 Battery charger module
13
HL1 HL2 Magnetic limit switch sensors
14
CN6 power supply
15
F1 line protection 230Vac 10A delayed
16

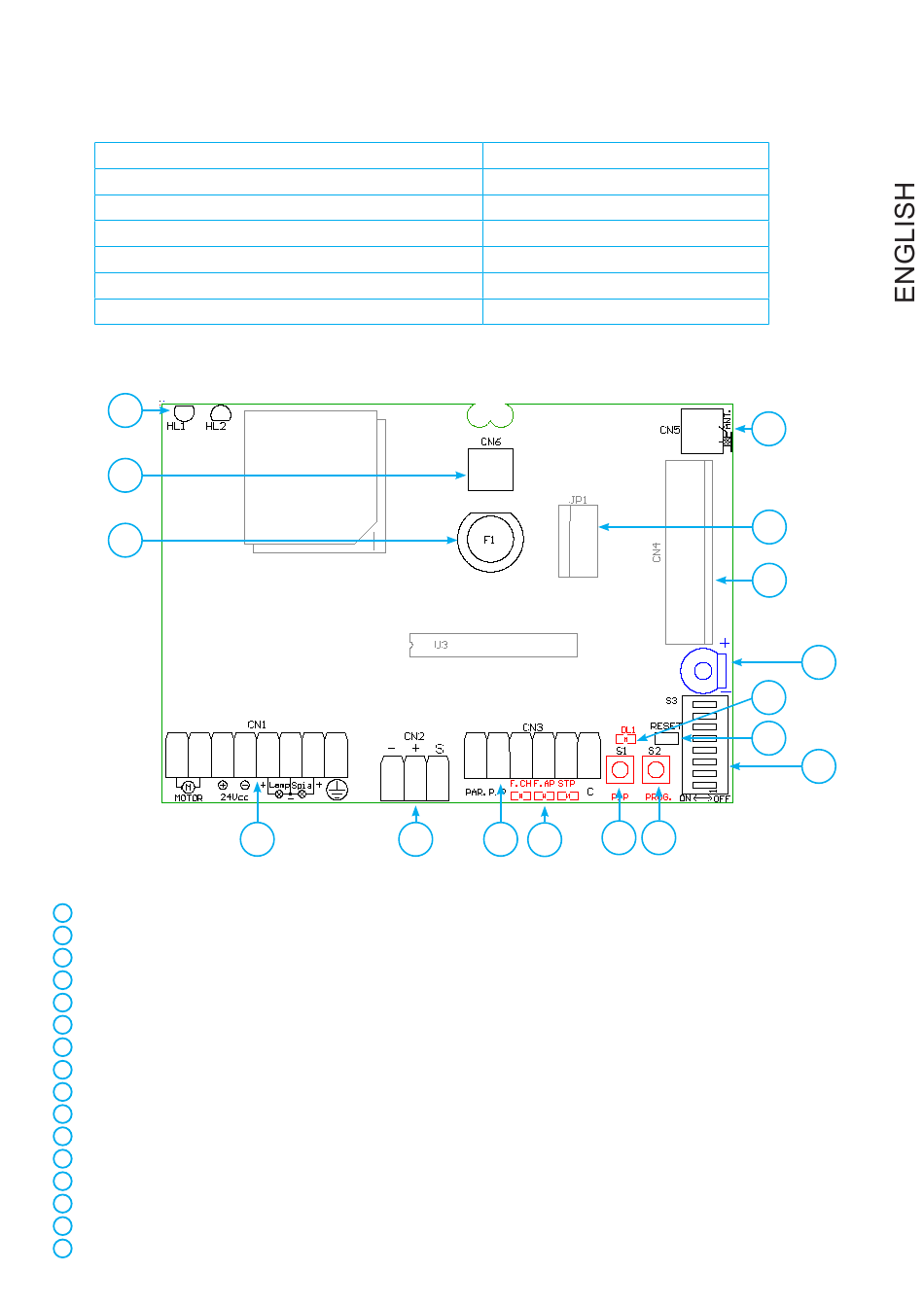

OVERALL VIEW

1 2
CT-24M
230Vac/50Hz - 24Vac 80VA
120W
Rechargeable 2 x 12V 1,3Ah
4 cycles within 5h
-20°C/+60°C
5
3
4
9
12
13
11
10
6
9
8
7
