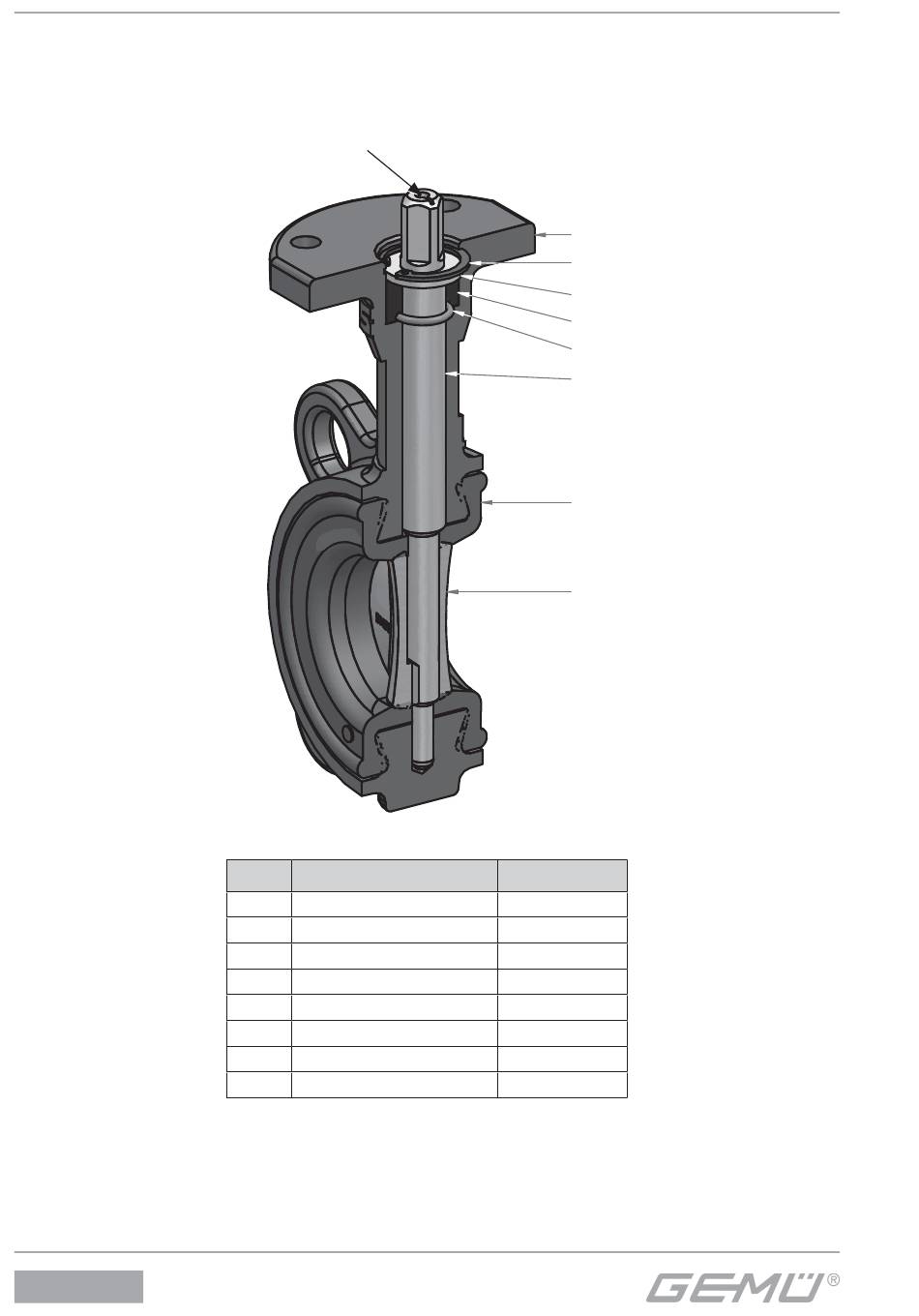

Exploded diagrams and spare parts

DN 25 - 100 Wafer
D480
GROOVE "A" (position of
butterfl y disc)
Item Designation
1 Body
*2 Bush
3 O-ring
4 Operator shaft
5 Seat (liner)
6 Butterfl y disc
8 Circlip
9 Washer
* In DN 32 item 2 does not exist
56 / 72
1
8
9
2
3
4
5
6
Pieces
1
1
1
1
1
1
1
1
