Switching off AC and DC supplies
1. Turn the AC circuit breaker to off.
2. Set the DC circuit breaker on the inverter to position 0
(Figure 31).
Disconnecting DC connections from the inverter
Disconnect the Amphenol Helios H4 to Multi-Contact MC4 connectors of the
DC cables according to the manufacturer's instructions. A special tool is required
for this.
Warning
DC cables are under current if light falls on the modules.
Disconnecting the AC plug from the inverter
For the Turbo 1P inverter:
1. Remove the AC plug from the socket on the inverter as described in chapter 13.1.
2. Check that all pins of the AC plug are free of voltage. Use a suitable voltmeter for
this (do not use a simple neon phase checker).
For the Turbo 3P1 / 3P2 inverter:
1. Disconnect the AC plug from the inverter: gently press in the ratchet near the
front of the AC plug with a suitable object to unlock it, and remove the plug.
2. Check that all pins of the AC plug are free of voltage. Use a suitable voltmeter for
this (do not use a simple neon phase checker).
Opening the AC plug (only if required)
For the Turbo 1P inverter:
Open the AC plug as described in the Appendix under Mounting > AC plugs.
For the Turbo 3P1 / 3P2 inverter:
Open the AC plug: First open the cable gland at the back and then push in the
ratchets on the left and right of the plug casing (simultaneously) and unlock
with a suitable tool. Then remove the upper part of the casing from the con-
tact part.
Removing the inverter from the mounting plate
1. Use one hand to press the retaining plate on the mounting plate approx. 5 mm
(0.20 in) towards the mounting surface
2. Use the other hand to push the inverter upwards, far enough so that the retai-
ning plate no longer latches.
2
3. Lift the inverter with both hands until the hooks on the rear side of the inverter
are free
3
4. Remove the inverter from the mounting surface
4
3
2
Figure 31
(Figure 32).
1
Release the retaining plate.
4
1
6.

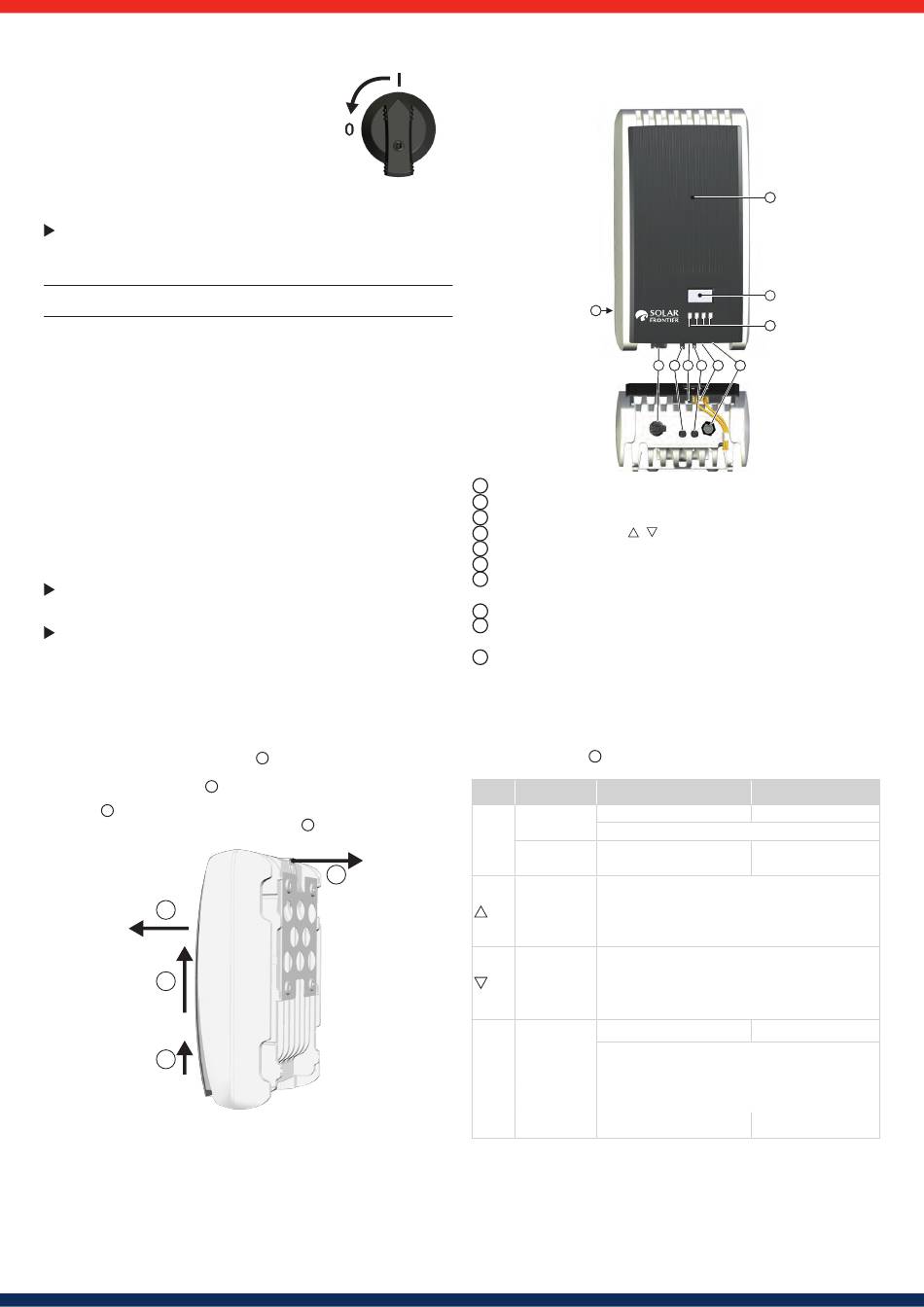

Structure and function of the Turbo inverter

6.1

Casing

1
Hood
2
Display (monochrome, 128 x 64 pixels)
3
Type plate, warning notices
4
Operating buttons: ESC,
5
1x AC connector
6 2x RJ45 sockets (RS485 bus)
7
1x DC connector minus (−) for solar modules
(Multi-Contact DC socket MC4, insulated)
8 1x RJ45 socket (Ethernet)
9
1x DC connector plus (+) for solar modules
(Multi-Contact DC socket MC4, insulated)
10
DC circuit breaker
(interrupts plus and minus inputs simultaneously)
The casing components are described in detail below.

6.2 Operating buttons

The operating buttons (
Button Action
Press
briefly
ESC
Press longer
(≥ 1 second)
Press
briefly
Press
briefly
Press
briefly
SET
Press longer
Figure 32
(≥ 1 second)
11
3
9
10 8 7 6 5
, , SET (from left to right)
in Figure 33) have the following functions:
4
Function general Guided configuration
jumps up by 1 menu level
discards any changes
jumps to the start of the gui-
jumps to status display
ded configuration process
• moves the highlighted bar or the content of the
display up
• moves the highlighted position in a numerical setting
one digit to the left
• increases a setting by one step
• moves the highlighted bar or the content of the
display down
• moves the highlighted position in a numerical setting
one digit to the right
• decreases a setting by one step
jumps down 1 menu level
• a selected numerical value begins to flash and can be
altered
• adopts any changes
• alters the state of a control (checkbox/radio button)
answers a query dialogue with yes navigates 1 step forward
1 1
2
4
Figure 33
navigates 1 step
–
Table 1
